Condition
Used – Dependable Condition – Fully Tested & Operational
This unit has been professionally inspected and tested to confirm proper cooling and refrigeration-system operation. The stainless-steel exterior and interior show scratches, scuffs, stains, residue, debris, and cosmetic wear consistent with previous commercial kitchen use.
Description

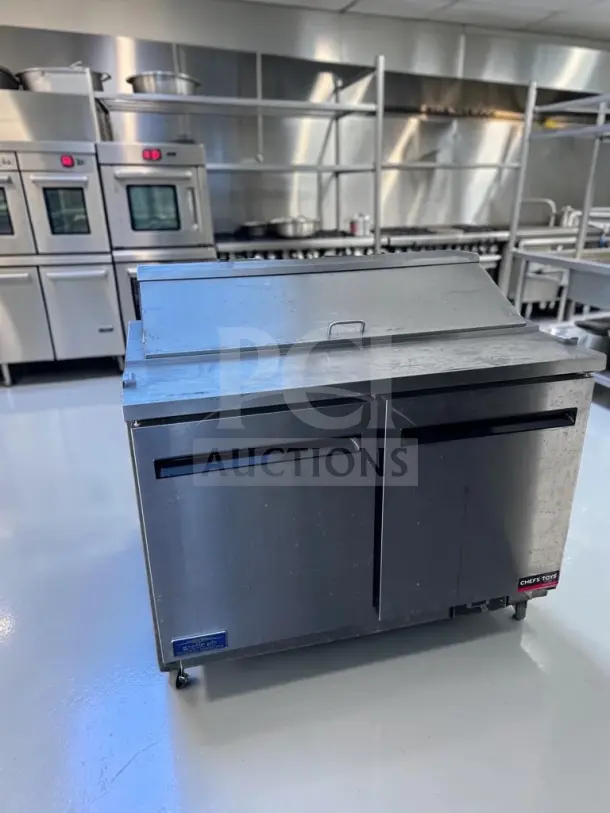

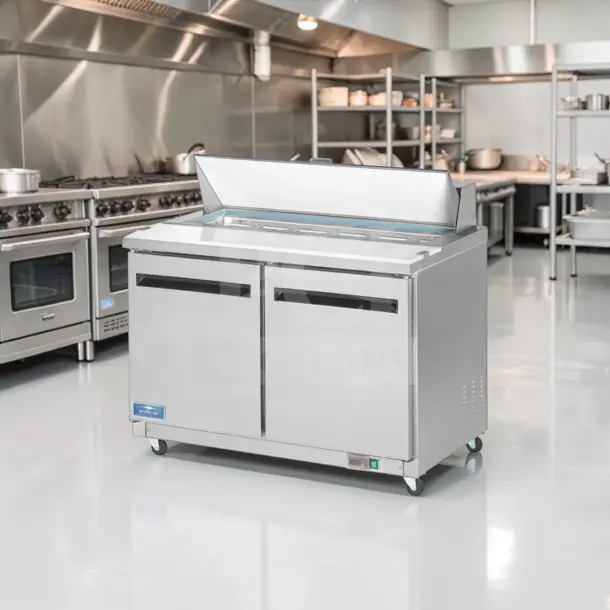

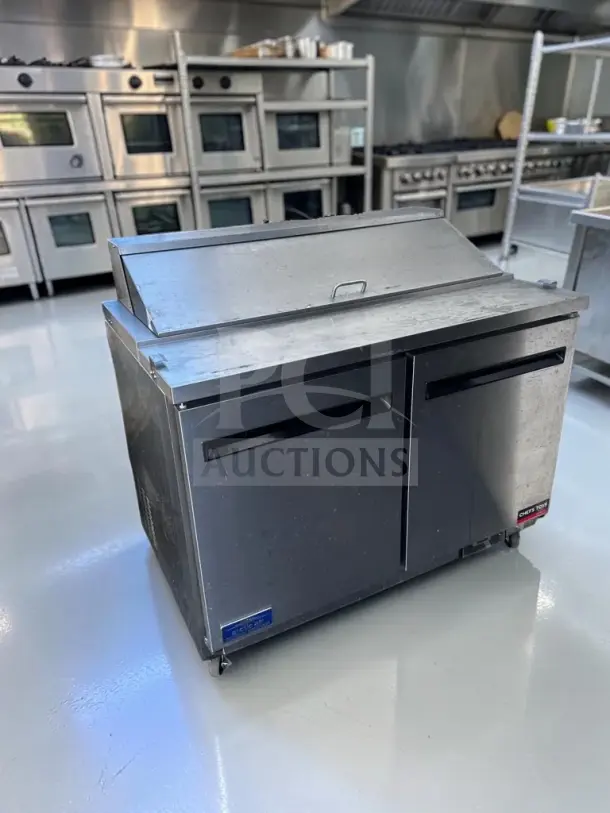

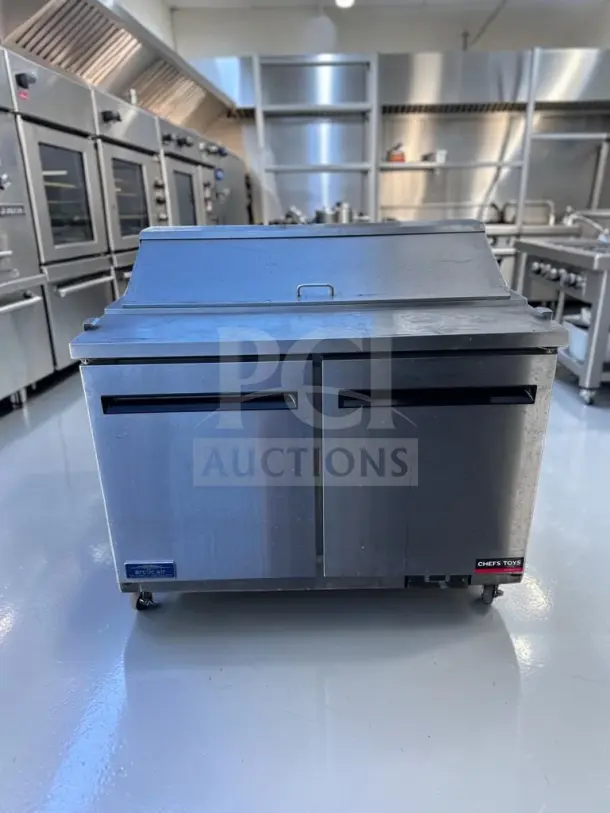

The Arctic Air AST48RZ is a commercial refrigerated sandwich and salad preparation table designed for restaurants, delis, cafés, sandwich shops, cafeterias, food trucks, and other foodservice operations.
Its refrigerated upper rail is designed to accommodate up to twelve 1/6-size ingredient pans, while the two-door base provides approximately 12 cubic feet of refrigerated storage.
The self-contained refrigeration system circulates cold air across the ingredient-pan area and lower cabinet, helping maintain food-safe temperatures between approximately 33°F and 41°F.

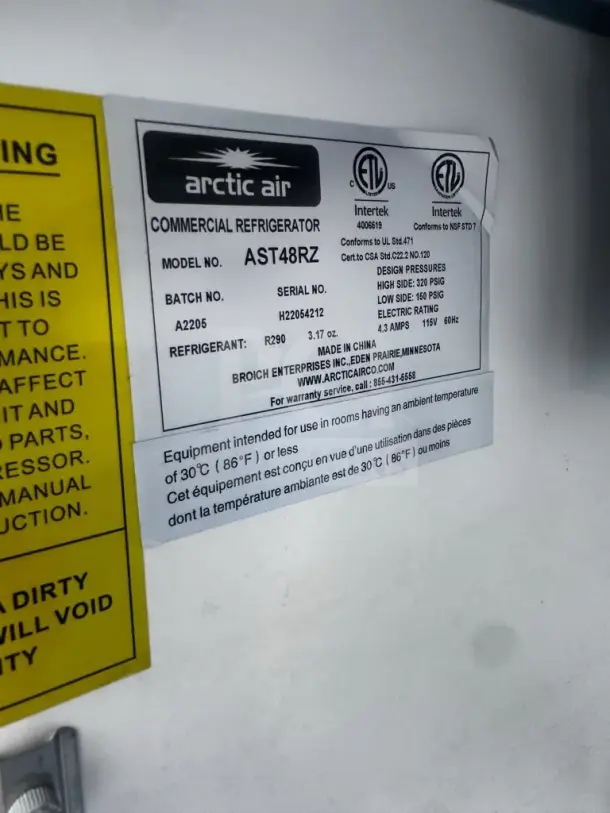

The data plate identifies this exact unit as AST48RZ. The current equivalent model is marketed as AST48R.
Electrical Specifications
Voltage: 115V
Phase: Single Phase
Frequency: 60 Hz
Amperage: 3 Amps – Confirmed by This Unit’s Data Plate
Published Compressor Rating: 1/2 HP
Power Type: Electric
Power Cord: Approximately 8′
Plug Configuration: NEMA 5-15P
The current AST48R specification lists 4.3 amps, but the 3-amp rating shown on this exact AST48RZ unit’s data plate takes precedence.
Dimensions
Width: 48.25″
Depth: 30″
Height: 43.3″ – Includes Approximately 3″ for Casters
Depth with Door Open 90 Degrees: 57.875″
Published Cutting-Board Depth: 11.375″
Refrigerated Capacity: Approximately 12 Cu. Ft.
Published Crated Weight: Approximately 300 lb
These measurements and the standard configuration are confirmed by the official Arctic Air AST48R specification sheet: https://arcticairco.com/PDFs/spec-sheet/AST48R.pdf.
Refrigeration
Refrigerant: R290 Hydrocarbon
Refrigerant Charge: 3.17 oz. – Confirmed by Data Plate
Temperature Range: Approximately 33°F–41°F
High-Side Design Pressure: 320 PSIG
Low-Side Design Pressure: 150 PSIG
Refrigeration Type: Self-Contained Capillary-Tube System
Temperature Control: Electronic Thermostat
Temperature Display: External Digital LED Display
Maximum Recommended Ambient Temperature: 86°F / 30°C
Capacity
Refrigerated Storage Capacity: Approximately 12 Cu. Ft.
Sections: 2
Solid Doors: 2
Standard Pan Capacity: Twelve 1/6-Size Pans
Maximum Pan Depth: 6″

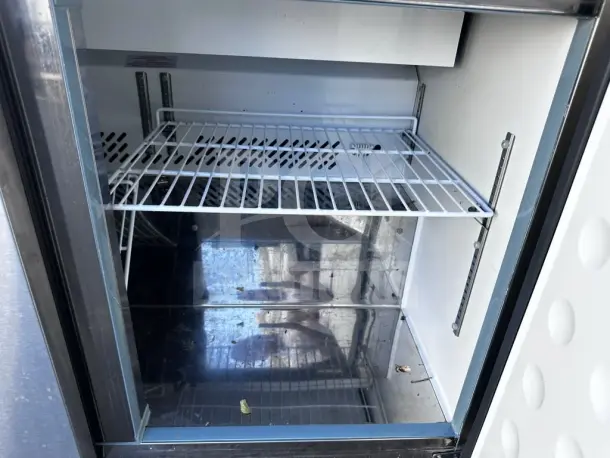

Standard Shelf Configuration: Two Adjustable Epoxy-Coated Shelves
Cutting-Board Depth: Approximately 11.375″
Ingredient pans, the cutting board, and the complete standard shelf set are included only if physically present with this used unit.
Construction
Stainless-steel front and sides
Stainless-steel worktop and pan-rail lid
Bright white impact-resistant ABS interior liner
Full stainless-steel interior floor
Coved interior floor corners for easier cleaning
Two insulated solid doors
Foamed-in-place recessed door handles
Self-closing door design
Doors remain open when positioned at approximately 90 degrees
Removable magnetic door gaskets
Adjustable epoxy-coated interior shelving
Heavy-duty full-width preparation area
Front-accessible condensing unit
Efficient condensate hot-gas evaporation loop
Installed commercial rolling casters
Key Features
Two-door refrigerated storage base
Approximately 12 cubic feet of cabinet capacity
Designed for twelve 1/6-size ingredient pans
Accommodates pans up to 6 inches deep
Maintains approximately 33°F–41°F
Electronic temperature controller
External digital temperature display
Large fan motor and blades for efficient airflow
Fast temperature recovery during commercial service
Self-closing solid doors
Tool-free removable magnetic door gaskets
Mobile caster-mounted construction
Tested for open-food storage applications
The standard features are confirmed by the official Arctic Air AST48R product page: https://arcticairco.com/product/model-ast48r/.
Certifications
ETL Listed by Intertek
Conforms to UL Standard 471
Certified to CSA Standard C22.2 No. 120
Conforms to NSF Standard 7
Approved for Commercial Open-Food Storage Applications
Intertek Certification Number: 4006619
Certification markings are visible on the unit’s data plate.
Manufacturing Information
Manufacturer: Broich Enterprises, Inc.
Brand: Arctic Air
Model on Data Plate: AST48RZ
Current Equivalent Model: AST48R
Batch Number: A2205
Serial Number: H22054212
Manufacturer Location: Eden Prairie, Minnesota, USA
Country of Manufacture: China
Included
One Arctic Air AST48RZ refrigerated sandwich and salad prep table
Two installed solid doors
Installed stainless-steel pan-rail cover
Installed self-contained refrigeration system
Installed electronic temperature controller
Installed rolling casters
Interior shelves included only if physically present
Ingredient pans included only if physically present
Cutting board included only if physically present
Unit sold exactly as shown in the provided photos
Important Notes
Sold as-is, where-is
Fully tested and operational before listing
The data plate identifies this unit as AST48RZ
Visible scratches, stains, residue, debris, and cosmetic wear
The standard white polyethylene cutting board is not visible and must be confirmed before purchase
Ingredient pans are not visible and are included only if present with the unit
Only one interior shelf is visible in the supplied photos; total shelf quantity must be confirmed
Clean and sanitize all food-contact surfaces before operation
Maintain adequate ventilation around the condensing unit
Designed for indoor commercial use
Recommended for rooms with an ambient temperature of 86°F / 30°C or less
R290 is a flammable hydrocarbon refrigerant and must be serviced by a qualified refrigeration technician
Professional commercial installation is recommended
No manufacturer warranty included
Shipping calculated at checkout
Local pickup available
