Condition
Used – Prime Condition – Fully Tested & Operational
This unit has been professionally inspected and tested to confirm proper heating, burner, thermostat, pilot, gas-valve, and drain operation.
The stainless-steel exterior and interior show scratches, grease residue, discoloration, oxidation, surface rust, and cosmetic wear consistent with previous commercial kitchen use.
Description

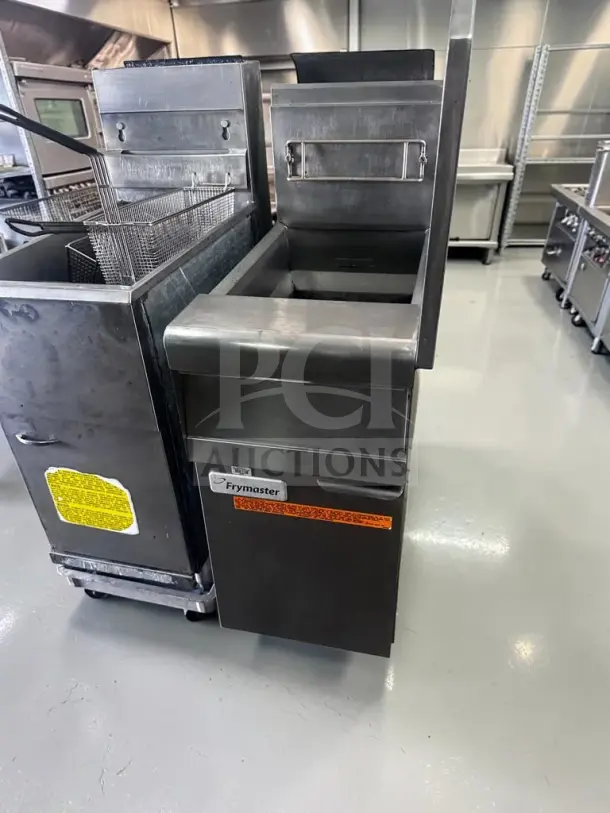

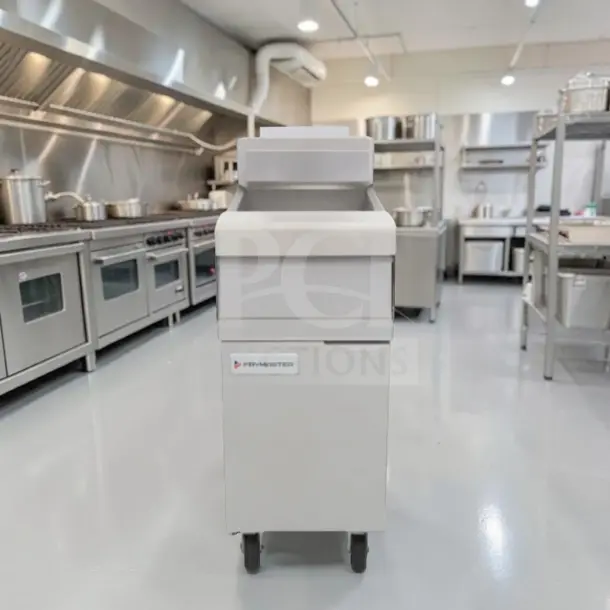

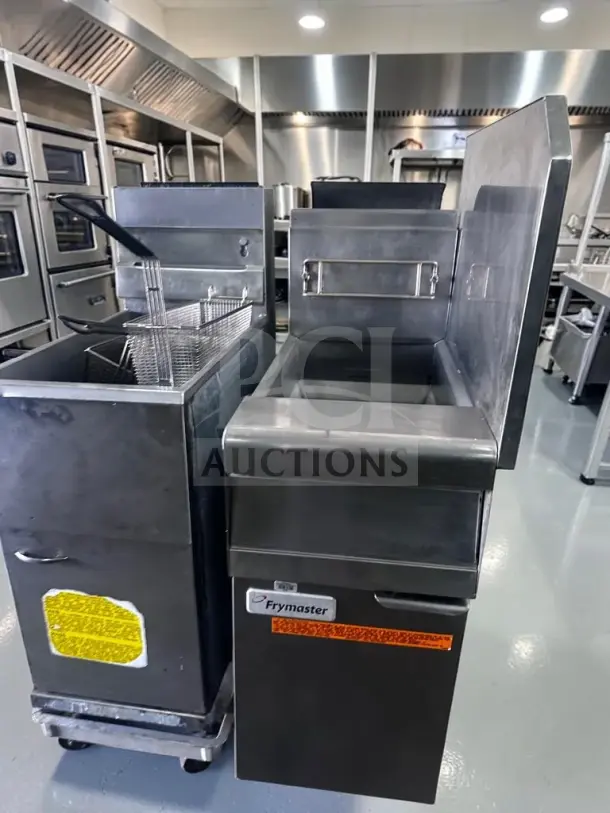

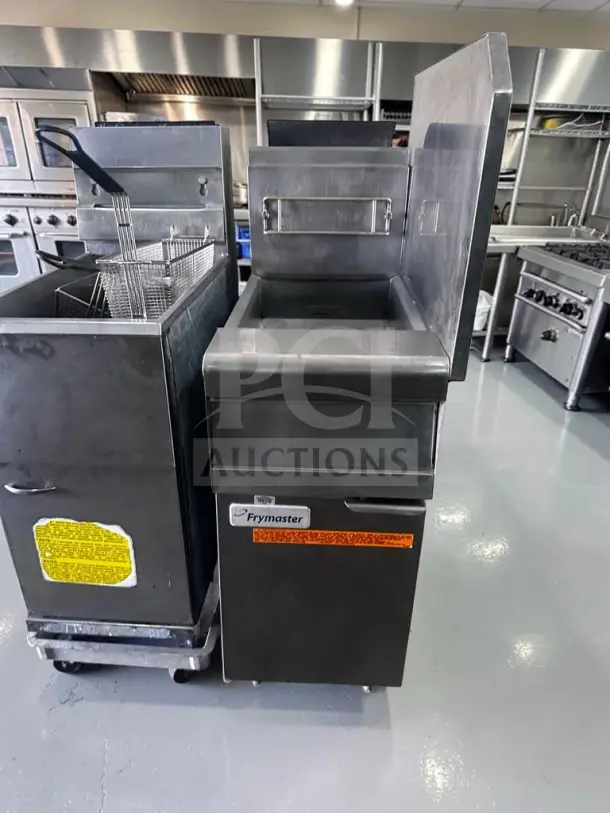

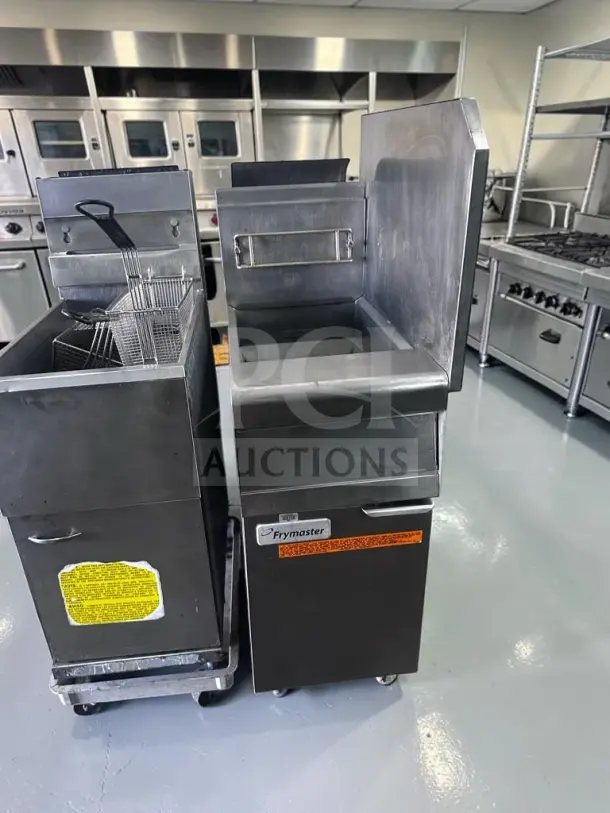

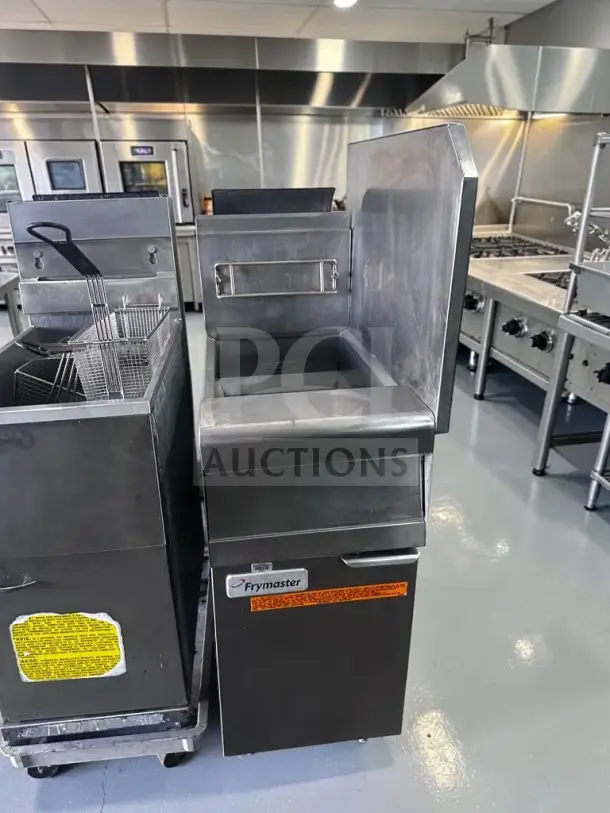

The Frymaster PMJ145SC is a heavy-duty commercial natural-gas floor fryer from Frymaster’s MJ45 Performance Series.
Its open-pot design provides direct access to the stainless-steel frypot and deep cold zone, making routine cleaning and sediment removal easier than with traditional tube-style fryers.
The Master Jet burner system distributes heat around the frypot for efficient heat transfer, rapid temperature recovery, and consistent frying performance during busy commercial service.

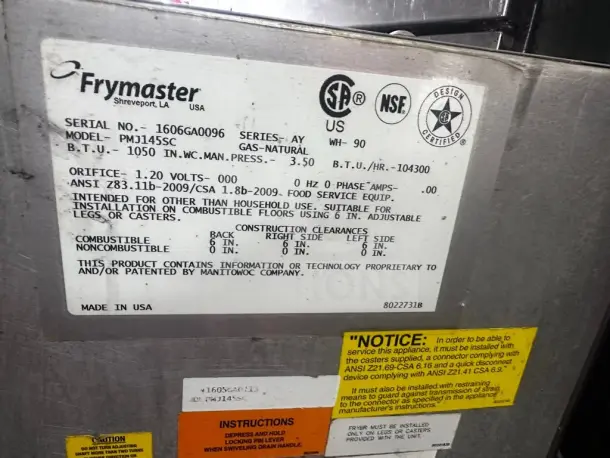

This exact fryer is rated at 104,300 BTU per hour, as confirmed by its data plate. Published MJ45-series specifications may show higher input ratings, but the rating plate on this specific unit takes precedence.
Gas Specifications
Gas Type: Natural Gas
Gas Input: 104,300 BTU/hr – Confirmed by Data Plate
Burner System: Frymaster Master Jet
Manifold Pressure: 3.5″ W.C. – Confirmed by Data Plate
Recommended Minimum Incoming Natural-Gas Pressure: Approximately 6″ W.C.
Gas Connection: ¾″ Commercial Gas Connection
Control Type: Millivolt Gas Control
Ignition System: Standing Pilot / Millivolt System
External Electrical Connection: Not Required for This Configuration
Professional installation by a licensed commercial gas technician is required.
Electrical Specifications
Voltage: 0V / No External Electrical Supply Required
Phase: Not Applicable
Frequency: 0 Hz
Amperage: 0 Amps
Power Type: Natural Gas
The unit’s data plate shows 000 volts, 0 Hz, 0 phase, and 0.00 amps, indicating a gas-powered millivolt-control configuration.
Dimensions
Width: Approximately 15.625″
Nominal Width: 16″
Depth: Approximately 31.5″
Height: Approximately 46″
Published Net Weight: Approximately 202 lb
Standard Leg Height: 6″ with Approximately 1″ Adjustment
These dimensions follow the legacy MJ45-series configuration. Frymaster MJ45 specification sheet: https://fm-xweb.frymaster.com/products/pdf%20files/mj45spec.pdf
Frypot & Oil Capacity
Frypot Configuration: One Full Open Frypot
Minimum Oil Capacity: Approximately 40 lb / 20 Liters
Maximum Oil Capacity: Approximately 50 lb / 25 Liters
Frying Area: Approximately 14″ × 15″
Frying Depth: Approximately 5″
Cold Zone: Deep Sediment-Collection Cold Zone
Drain Valve: 1¼″ Manual Ball-Type Drain Valve
The legacy MJ45 specification identifies a minimum 40-pound and maximum 50-pound shortening capacity. MJ45 capacity and configuration: https://www.bakedeco.com/images/spec/Frymaster-MJ45.pdf
Construction
Stainless-steel open frypot
Stainless-steel front door
Commercial stainless-steel exterior surfaces
Single full-size frypot
Open-pot design without internal burner tubes
Deep cold zone for collecting food particles and sediment
Forward-sloping frypot bottom
Manual front-access drain valve

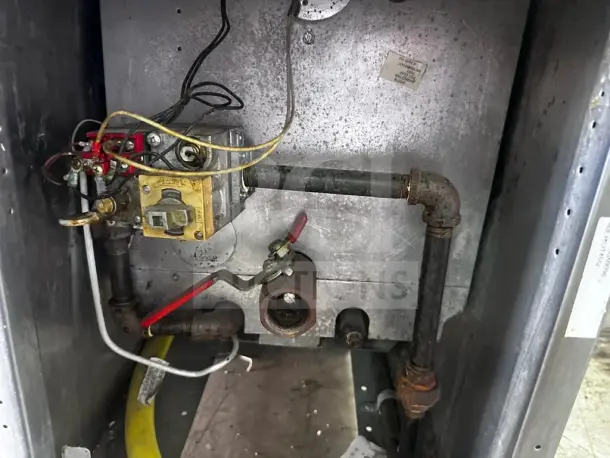

Front-access gas-control compartment
Master Jet burner system
Centerline temperature probe
High-limit safety thermostat
Rear flue and basket-hanger area
Installed side splash panel as shown
Commercial floor-model construction
Key Features
Approximately 40–50 lb oil capacity
104,300 BTU/hr natural-gas input
Space-saving 16-inch-wide cabinet
Single full-size open frypot
Master Jet burner technology
Fast heat transfer and temperature recovery
Centerline fast-action temperature probe
Millivolt operation requiring no standard electrical outlet
Deep cold zone helps separate sediment from cooking oil
Large 1¼-inch drain valve
Open frypot allows easier cleaning and manual wipe-down
Suitable for French fries, chicken, seafood, appetizers, and breaded foods
Designed for demanding commercial foodservice operations
Made in the USA
Installation Clearances
Combustible Construction
Rear Clearance: 6″
Right-Side Clearance: 6″
Left-Side Clearance: 6″
Noncombustible Construction
Rear Clearance: 0″
Right-Side Clearance: 0″
Left-Side Clearance: 0″
The data plate requires installation on noncombustible flooring using approved 6-inch adjustable legs or casters.
Certifications
NSF Certified
CSA Certified
CSA Design Certified
Conforms to ANSI Z83.11b-2009
Conforms to CSA 1.8b-2009
Commercial Foodservice Equipment Certification
Certification markings are visible on the unit’s data plate.
Manufacturing Information
Manufacturer: Frymaster
Manufacturer at Time of Production: Manitowoc Company
Model on Data Plate: PMJ145SC
Product Series: MJ45 Performance Series
Serial Number: 1606GA0096
Series Code: AY
Gas Type: Natural Gas
Manufacturer Location: Shreveport, Louisiana, USA
Country of Manufacture: USA
Included
One Frymaster PMJ145SC natural-gas floor fryer
One installed full-size stainless-steel frypot
Installed burner and millivolt gas-control system
Installed drain valve and locking handle
Installed rear basket-hanger assembly
Installed side splash panel as shown
Installed legs or casters only as physically present
Unit sold exactly as shown in the provided photos
Important Notes
Sold as-is, where-is
Fully tested and operational before listing
Configured for natural gas only
Do not connect to propane without an approved professional conversion
Visible scratches, grease residue, discoloration, oxidation, and surface rust
Fryer baskets are not shown with this unit and are not included unless separately confirmed
The adjacent fryer and its baskets are not included
Gas connector hose and quick-disconnect kit are not included unless physically provided
Clean and sanitize the frypot before operation
Gas pressure must be checked during installation
A commercial ventilation hood and fire-suppression system are required
Installation must comply with applicable fire, gas, and building codes
Professional installation by a licensed commercial gas technician is required
No manufacturer warranty included
Shipping calculated at checkout
Local pickup available
