Condition
Used – Outstanding Condition – Fully Tested & Operational
This heavy-duty commercial pan washer has been professionally inspected and tested to confirm electrical power-up, control response, automatic filling, wash-pump operation, wash and rinse cycles, temperature-control functions, pressure-gauge response, safety-switch operation, and mechanical performance.
The stainless steel exterior shows scratches, scuffs, water spots, surface marks, discoloration, residue, and normal cosmetic wear consistent with previous commercial use.

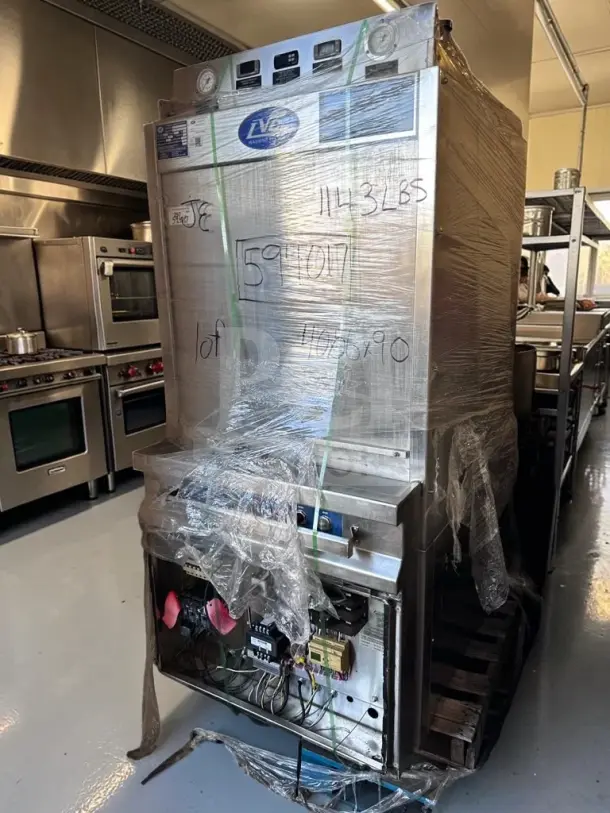

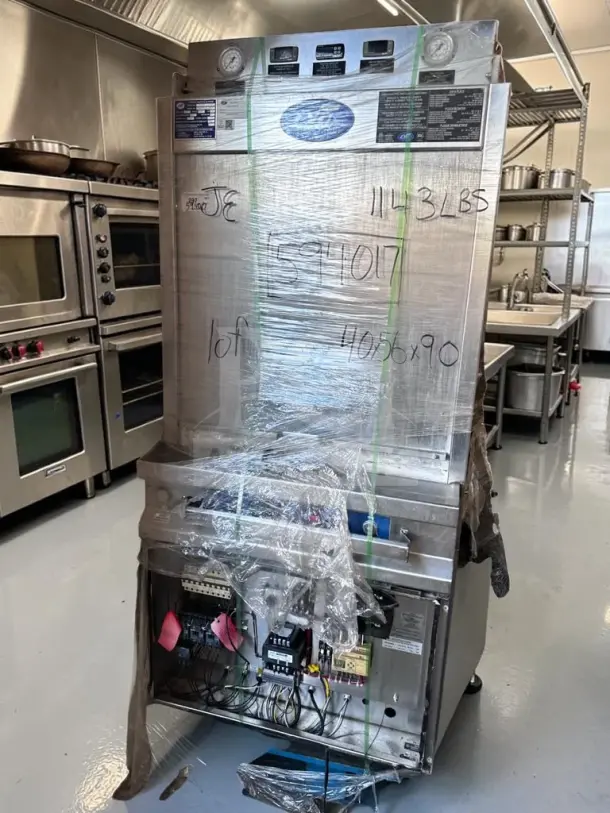

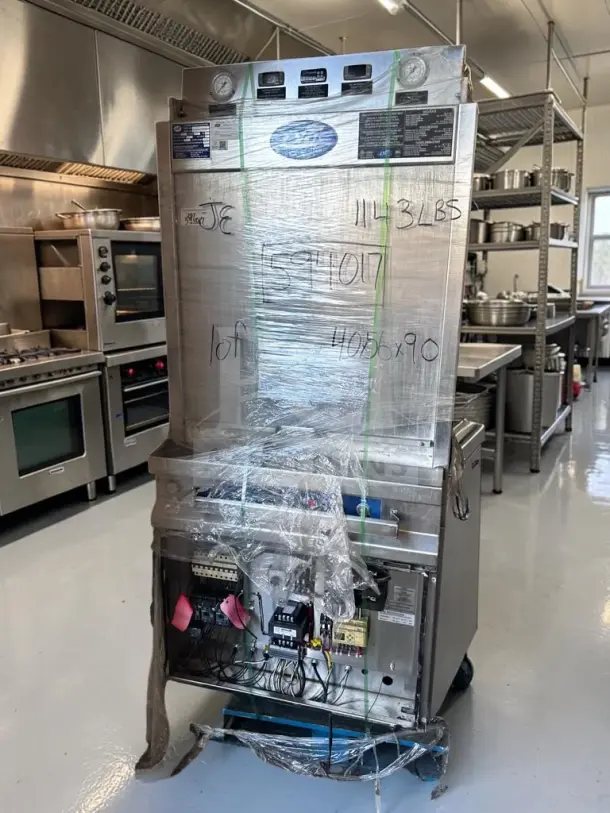

The unit is currently secured to a blue shipping pallet with plastic wrapping and green straps. Handwritten warehouse and shipping markings are visible on the front wrapping.

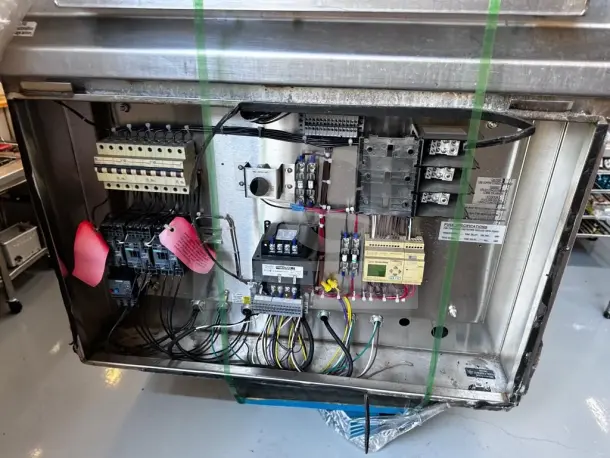

The lower electrical control compartment is shown open in the supplied photographs. The internal breakers, contactors, transformer, controller, terminal blocks, wiring, fuses, and other electrical components appear installed. The removable electrical service cover is not installed in the photos and should be verified at pickup.
The interior wash chamber, utility rack, spray-arm assemblies, scrap trays, pump-inlet screen, and drain components are not clearly shown. Their exact presence and condition should be physically verified.
Please review all supplied photos for the exact cosmetic condition and included components.
Model Identification

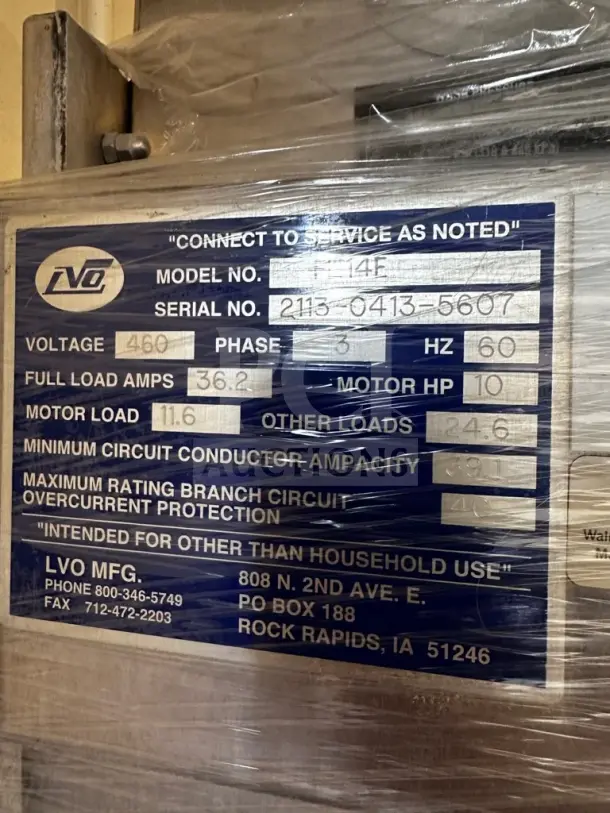

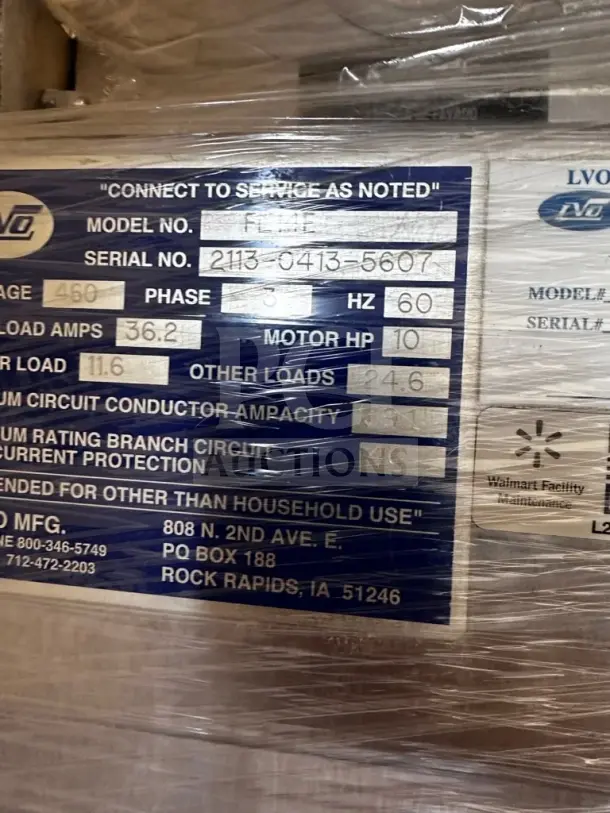

The supplied manufacturer data plate confirms:
Brand: LVO
Manufacturer: LVO Manufacturing, Inc.
Exact Data-Plate Model: FL14F
Product Family: FL14
Machine Type: Front-Load Commercial Pan Washer
Serial Number: 2113-0413-5607
Voltage: 460V
Phase: Three Phase
Frequency: 60Hz
Full-Load Amperage: 36.2A
Motor Horsepower: 10 HP
Motor Load: 11.6A
Other Electrical Loads: 24.6A
Minimum Circuit-Conductor Ampacity: 39.1A
Maximum Branch-Circuit Overcurrent Protection: Appears to be 40A
Heating Configuration: Electric
Intended Use: Other Than Household Use
Manufacturer Location: Rock Rapids, Iowa 51246, USA
The data plate is partially covered by clear plastic, but the model marking reads FL14F. This machine belongs to LVO’s established FL14 front-load washer family.
Manufacturing Date
LVO states that digits five through eight of its 12-digit serial number identify the month and year of manufacture.
This unit’s serial number is:
2113-0413-5607
The date portion is:
0413
Therefore, the manufacturing date is:
April 2013
The serial-number date format is confirmed by LVO’s official manuals page: https://www.lvomfg.com/site/service/manuals/.

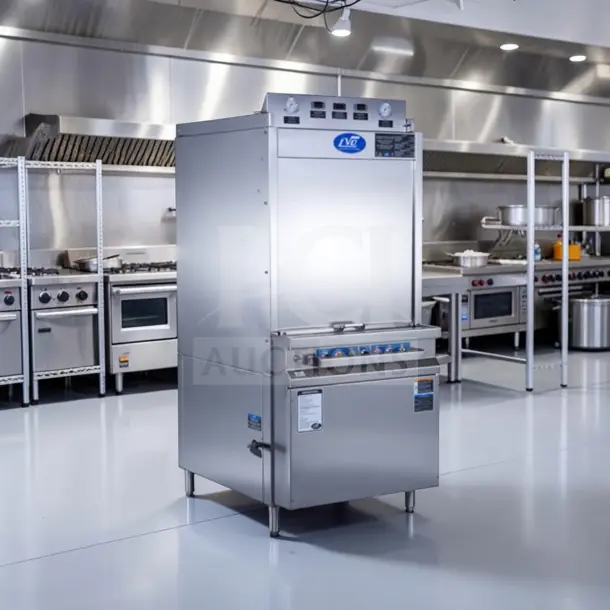

Description
The LVO FL14F is a heavy-duty commercial front-load washer engineered for washing sheet pans, pots, mixing bowls, buckets, utensils, bakery tools, food-preparation equipment, and other compatible commercial kitchen items.
It uses a powerful 10-horsepower recirculating pump and two rotating stainless steel spray arms to deliver a high-pressure wash throughout the chamber.
The FL14 platform is designed to accommodate up to 14 standard sheet pans per load and is rated by LVO for production of up to approximately 140 pans per hour, depending on the selected wash cycle, loading arrangement, soil level, and operating conditions.
The fully automatic operating sequence includes filling, washing, a rest period, sanitizing rinse, and optional steam-exhaust operation. Three selectable wash durations allow the operator to choose an appropriate cycle for lightly, moderately, or heavily soiled items.
This electric-heated version uses one 9kW heating element in the wash tank and a separate 9kW booster-heating element in the rinse tank. The booster raises properly supplied hot water to the sanitizing-rinse temperature.
The front-loading design offers access to a large wash chamber while limiting the floor space required compared with larger walk-in or rack-style washing systems.
LVO identifies the FL14 as its most popular front-load model and confirms its 14-pan capacity, 10HP pump, 40-gallon wash tank, 9kW rinse booster, three wash times, and heavy-gauge stainless steel construction. Official LVO FL14 product specifications: https://www.lvomfg.com/site/product/fl14/
Wash Capacity
Sheet-Pan Capacity: Up to 14 Pans per Load
Manufacturer-Published Production Capacity: Up to 140 Pans per Hour
Mixing-Bowl Capacity: Up to One 140-Quart Mixing Bowl, Depending on Rack and Bowl Dimensions
Compatible Items May Include:
Standard sheet pans
Bun pans
Cake pans
Bakery pans
Mixing bowls
Commercial pots
Commercial pans
Food-preparation bowls
Buckets
Utensils
Whisks
Paddles
Scrapers
Ladles
Spatulas
Food-processing components
Bakery-production tools
Other compatible heat-resistant commercial kitchenware
Actual capacity varies according to item dimensions, rack style, required spacing, soil level, selected cycle, and whether every rack position can be used.
Loose items must be secured in an appropriate utensil basket. Glassware and fragile household items should not be placed inside this high-pressure machine.
Wash System
Pump Motor: 10 HP
Pump Flow: Approximately 180 Gallons per Minute
Normal Manufacturer-Published Wash Pressure: Approximately 50–60 PSI

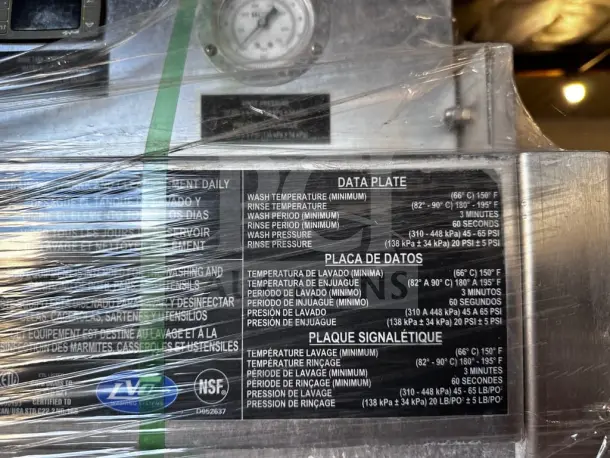

Permitted Wash-Pressure Range on This Unit’s Data Plate: 45–65 PSI
Wash-Arm Configuration: Two Rotating Stainless Steel Spray Arms
Wash Hubs: Heavy-Duty Commercial Hub System
Wash Tank Capacity: 40 Gallons
Wash-Tank Heating: One 9kW Electric Heating Element
Wash Temperature – Data-Plate Minimum: 150°F / 66°C
Normal Recommended Operating Range: Approximately 155–160°F / 68–71°C
Water Recirculation: High-Volume Recirculating Wash System
The approximately 180-GPM flow is recirculated from the 40-gallon wash tank rather than drawn continuously from the building’s water supply.
The powerful high-pressure system requires correct racking. Items must be positioned so water can reach their soiled surfaces and drain freely after the wash.
Sanitizing Rinse System
Rinse Method: Fresh Hot-Water Sanitizing Rinse
Rinse-Tank Capacity: Approximately 9.5 Gallons
Rinse Booster: One 9kW Electric Heating Element
Incoming Hot-Water Temperature: 140°F / 60°C Recommended
Rinse Temperature on This Unit’s Data Plate: 180–195°F / 82–90°C
Rinse Period: 60 Seconds Minimum
Rinse Pressure: 20 PSI ± 5 PSI
Water Consumption per Cycle: Approximately 6.5 Gallons
Published Hourly Water Requirement: Approximately 78 Gallons per Hour at 12 Cycles per Hour
The rinse-booster tank is designed to raise the incoming hot water to the required sanitizing temperature.
The final installation must comply with local health-department, plumbing, backflow-prevention, and commercial warewashing requirements.
Automatic Cycle Specifications
The LVO FL14 provides three preset wash selections:
Light Wash: Approximately 3 Minutes
Medium Wash: Approximately 5 Minutes
Heavy Wash: Approximately 7 Minutes
Rest Period: Approximately 20 Seconds
Sanitizing Rinse: Approximately 60 Seconds
Optional Fan Period: Approximately 30 Seconds
The automatic operating sequence is:
Machine fills to the required level
Wash and rinse heating systems bring water to temperature
Operator selects Light, Medium, or Heavy
Start control activates the wash-pump cycle
High-pressure wash water circulates through the rotating spray arms
Wash cycle ends
Approximately 20-second rest period allows wash water and suds to drain
Fresh hot-water sanitizing rinse begins
Optional steam-exhaust fan operates when configured
Cycle resets for unloading
Factory settings can be adjusted only by a qualified technician and must remain compliant with sanitation requirements.
Suitable Applications
Commercial bakeries
Wholesale bakeries
Supermarket bakeries
Restaurants
Hotels
Resorts
Catering kitchens
Commissary kitchens
Central-production kitchens
Institutional kitchens
School cafeterias
University kitchens
Hospitals
Healthcare foodservice facilities
Correctional-facility kitchens
Military kitchens
Food-production facilities
Food-processing operations
Candy and confectionery production
Commercial dough-production operations
Large banquet facilities
High-volume pastry kitchens
Commercial kitchens processing heavily soiled pots and pans
Facilities requiring dedicated bakery-pan washing
Final suitability depends on the items being washed, available utilities, local codes, detergent program, sanitation requirements, rack configuration, and installation space.
Electrical Specifications
Power Type: Electric
Exact Voltage: 460V
Phase: Three Phase
Frequency: 60Hz
Full-Load Amperage: 36.2 Amps
Motor Horsepower: 10 HP
Motor Load: 11.6 Amps
Other Loads: 24.6 Amps
Minimum Circuit-Conductor Ampacity: 39.1 Amps
Maximum Branch-Circuit Overcurrent Protection: Appears to be 40 Amps
Wash Heating Element: 9kW
Rinse-Booster Heating Element: 9kW
Total Installed Electric Heating: Approximately 18kW
Electrical Connection: Commercial Hardwired Connection
Plug Type: No Plug – Hardwired Installation Required
The electrical specifications above come directly from the manufacturer plate on this specific machine and take precedence over generalized specifications for other FL14 versions.
LVO’s manual publishes approximately 36.8A for a typical 460V electric FL14. This specific unit’s plate states 36.2A, so the unit-specific figure is used in this listing.
A licensed commercial electrician must verify the building service, phase rotation, wiring, grounding, disconnect, conductor sizing, and overcurrent protection.
Incorrect phase rotation can cause the pump to rotate backward and produce low or unstable wash pressure.
Do not connect this washer to 208V, 230V, single-phase power, a household receptacle, an adapter, or an extension cord.
Utility Requirements
Electrical
460V
Three phase
60Hz
36.2A full-load current
Hardwired connection
Nearby lockable disconnect required
Grounding required
Hot Water
Connection: 1/2-Inch Hot-Water Supply
Recommended Incoming Temperature: 140°F / 60°C
Required Operating Flow: Approximately 78 GPH at 12 Cycles per Hour
Rinse Pressure: 20 PSI ± 5 PSI
Maximum Allowable Supply Pressure: 125 PSI
A shutoff valve and accessible union should be provided.
Drain
Drain Size: 1.5-Inch Copper Drain Connection
Drainage must comply with local code. A floor sink, air gap, grease interceptor, vent, or other components may be required.
Steam Exhaust
Exhaust Connection: 6-Inch Vent Collar
The manufacturer recommends compatible PVC, CPVC, or stainless steel ducting where permitted. The exhaust must not terminate inside a wall, ceiling cavity, attic, or other concealed space.
Local code may require installation beneath an approved exhaust hood.
Detergent
A commercial automatic non-sudsing detergent-feeding system is required. The detergent feeder and chemical containers are normally supplied and installed by the buyer’s chemical provider.
Dimensions
LVO’s official FL14 owner’s manual publishes:
Width: 36 in
Depth: 53 in
Height: 84.75 in
Height with Door Fully Open: 106 in
Door Opening Width: 32 in
Door Opening Height: 30 in
Wash-Chamber Width: Approximately 32 in
Wash-Chamber Height: Approximately 30 in
Wash-Chamber Length: Approximately 36.5 in
The dimensions above apply to the FL14 machine and do not include the blue shipping pallet, temporary wrapping, straps, field-installed ductwork, external plumbing, electrical conduit, wall disconnect, chemical containers, or required service clearances.
The official manual recommends at least:
Side Clearance: 16 in Minimum
Control-Box Side Clearance: 36 in Minimum
Rear Clearance: 12 in Minimum
Additional space should be provided for installation, cleaning, maintenance, door travel, rack handling, and electrical service.
Weight and Moving Requirements
The exact manufacturer-rated net weight was not confirmed in the supplied data plate or official owner’s manual.

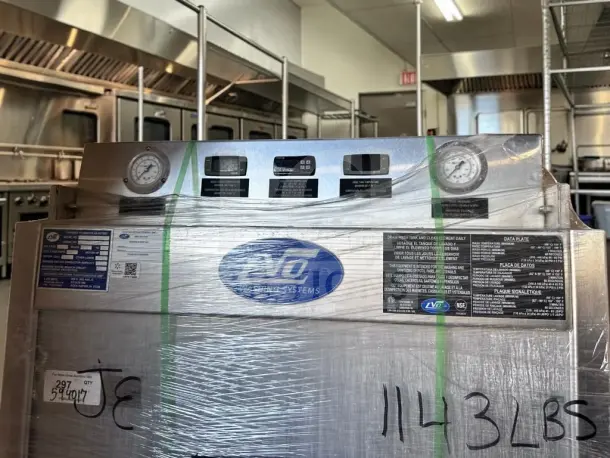

A handwritten “1143 LBS” marking is visible on the front wrapping. This appears to be a warehouse or freight notation and should not be treated as a verified manufacturer net-weight specification without confirmation.
This is a large, extremely heavy commercial machine and requires professional material-handling equipment.
Use a properly rated forklift, pallet jack, machinery dolly, or commercial rigging service.
Do not attempt to move the washer manually.
Do not lift it by the door, gauges, control panel, plumbing connections, vent assembly, electrical cabinet, or exposed wiring.
Construction
14-gauge stainless steel cabinet panels
12-gauge stainless steel structural framework
Stainless steel wash chamber
Stainless steel interior piping
Stainless steel rinse system
Two rotating stainless steel spray arms
Heavy-duty commercial wash hubs
Front-loading vertical door
Large commercial wash chamber
40-gallon stainless wash tank
Approximately 9.5-gallon rinse-booster tank
One 9kW wash-tank heater
One 9kW rinse-booster heater
10HP high-volume pump
Approximately 180-GPM recirculating system
Electronic cycle controller
Light, Medium, and Heavy wash selections
Automatic fill system
Wash-pressure gauge
Rinse-temperature and pressure instrumentation
Low-water protection
Door safety switch
Commercial electrical control cabinet
Internal circuit breakers
Commercial contactors
Control transformer
Terminal blocks
Three-phase power-distribution components
6-inch steam-exhaust connection
Adjustable leveling-leg system
Commercial hardwired installation
Key Features
Up to 14 sheet pans per load
Up to approximately 140 pans per hour
Accommodates compatible 140-quart mixing bowls
Powerful 10HP pump
Approximately 180-GPM wash-water circulation
High-pressure 45–65 PSI wash range
Two rotating stainless steel wash arms
Three selectable wash cycles
Light, Medium, and Heavy settings
Automatic operating sequence
40-gallon wash tank
Electric wash-tank heating
9kW wash heating element
9kW rinse-booster element
Fresh hot-water sanitizing rinse
180–195°F rinse range on the data plate
60-second minimum rinse period
20 PSI ± 5 PSI rinse pressure
Automatic filling
Low-water protection
Door safety interlock
Heavy-gauge stainless steel construction
Large front-loading chamber
Dedicated steam-exhaust connection
Commercial hardwired electrical configuration
460V three-phase operation
Designed for intensive commercial use
Suitable for bakery pans
Suitable for pots and mixing bowls
Suitable for secured commercial utensils
ETL electrical listing
NSF sanitation listing
Safety Features
Low-Water Cutoff: Prevents normal operation when the wash tank does not contain sufficient water
Door Safety Switch: Prevents wash-pump operation when the door is not completely closed
Electrical Circuit Breakers: Installed inside the control cabinet
High-Limit Protection: Manufacturer-designed wash and rinse high-limit controls

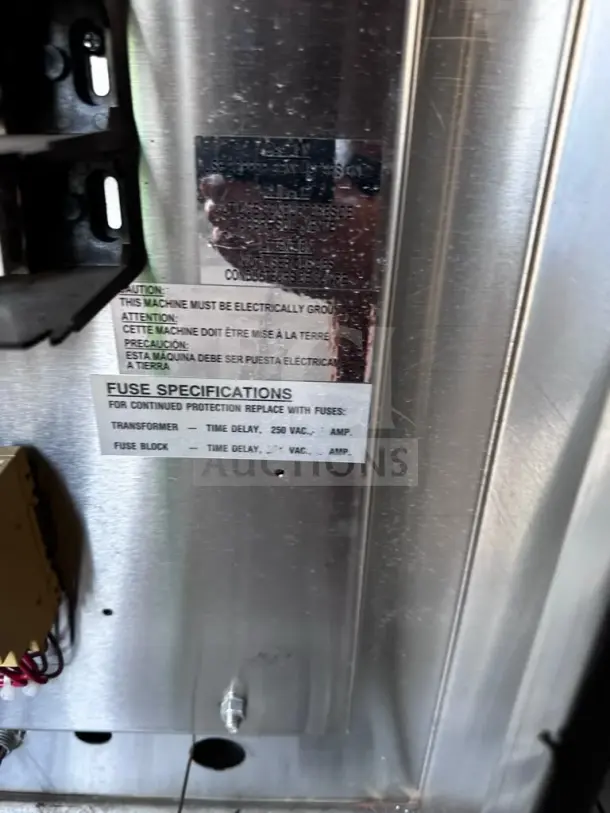

Grounding Connection: Dedicated control-panel grounding provision
Pressure Gauges: Allow wash and rinse conditions to be monitored
Temperature Monitoring: Allows sanitizing-rinse temperature verification
Front Door Counterbalance: Manufacturer-designed door-weight and cable system
Commercial Disconnect Requirement: Separate accessible building disconnect required
Never bypass the door switch, low-water cutoff, high-limit controls, circuit breakers, grounding system, or other safety devices.
Door cables, pulleys, counterweights, and connections must be inspected for wear before commercial service.
Certifications
The supplied photos and LVO documentation confirm:
ETL Listed
NSF Sanitation Listed
Commercial Warewashing Equipment
The manufacturer’s FL14 brochure lists ETL electrical and NSF sanitation approvals for the United States and Canada.
Certification labels should be physically inspected if a local health department or electrical authority requires an exact standard number. Official LVO FL14 brochure: https://www.lvomfg.com/site/wp-content/uploads/2017/02/FL-14.pdf
Manufacturing Information
Brand: LVO
Manufacturer: LVO Manufacturing, Inc.
Exact Model: FL14F
Product Family: FL14
Product Type: Commercial Front-Load Pan, Pot, Bowl and Utensil Washer
Serial Number: 2113-0413-5607
Manufacturing Date: April 2013
Heating Type: Electric
Voltage: 460V
Phase: Three Phase
Frequency: 60Hz
Full-Load Amperage: 36.2A
Pump Motor: 10HP
Manufacturer Address: 808 N. 2nd Avenue E., Rock Rapids, Iowa 51246
Country of Manufacture: Not Explicitly Stated on the Supplied Data Plate
Included
One LVO FL14F commercial front-load pan washer
Installed 10HP pump and motor assembly
Installed 40-gallon wash-tank system
Installed rinse-booster tank
Installed 9kW wash-heating system
Installed 9kW rinse-booster system
Front-loading wash-chamber door
Installed wash-pressure gauge
Installed rinse-temperature and pressure instrumentation
Front operating controls
Electronic cycle controller
Light, Medium, and Heavy cycle selection
Automatic-fill controls
Internal electrical breakers
Installed contactors and relays
Control transformer
Terminal blocks
Installed internal wiring
Low-water safety system
Door safety-switch system
Installed exhaust connection and upper assembly shown
Manufacturer identification plate
Operating data plate
ETL and NSF markings
All permanently installed components shown in the supplied photographs
Unit sold exactly as pictured
Not Included
Blue shipping pallet
Green shipping straps
Plastic shipping wrap
Forklift or pallet jack
Freight delivery
Rigging or installation service
Building electrical disconnect
Electrical conduit
Field wiring
Plug or power cord
Voltage transformer
Phase converter
Hot-water heater
Hot-water supply plumbing
Water shutoff valve
Backflow preventer
Drain plumbing
Floor sink
Grease interceptor
Vent ductwork
Exhaust hood
Detergent feeder
Rinse-aid feeder
Chemical containers
Commercial detergent
Rinse chemicals
Water softener
Calcium filter
Bun or sheet-pan rack is not shown
Cake-pan rack is not shown
Utensil basket is not shown
Hold-down rack is not shown
Loose sheet pans
Pots
Bowls
Buckets
Utensils
Operator manual
Replacement parts
Electrical service cover if not separately present at pickup
Additional accessories not shown in the supplied photos
Installation Requirements
Installation must be completed by qualified commercial equipment technicians, electricians, and plumbers.
Position the washer on a level, structurally sound commercial floor.
Install and level the manufacturer-designed legs before operation.
Provide sufficient clearance for the front door to reach its full open height of approximately 106 inches.
Maintain at least 16 inches of service clearance along the sides, 36 inches on the control-box side, and 12 inches behind the machine.
Provide a properly sized 460V, three-phase, 60Hz electrical service.
Install a nearby accessible commercial disconnect.
Connect the main grounding conductor to the designated grounding lug.
Verify phase rotation before extended pump operation.
Provide a 1/2-inch 140°F hot-water supply with an accessible shutoff valve and union.
Verify approximately 20 PSI rinse pressure during the rinse cycle.
Provide a code-compliant 1.5-inch drain connection.
Install a floor sink, air gap, vent, or grease interceptor where required.
Connect the 6-inch steam-exhaust collar to an approved ventilation system.
Do not discharge steam into a concealed wall, ceiling, attic, or unventilated space.
Install an automatic commercial detergent feeder with delivery verification or an appropriate chemical alarm.
Use a water softener or calcium-treatment system in hard-water areas.
Before energizing the heating elements, fill the rinse tank completely according to the manufacturer’s startup procedure.
Cleaning & Care
Turn the power switch off and disconnect the building electrical supply before cleaning or servicing.
Drain the wash tank completely at the end of the operating day.
Remove and clean the scrap trays.
Remove and clean the pump-inlet screen.
Do not allow debris to enter the open pump inlet.
Inspect all wash nozzles for blockage.
Inspect all rinse nozzles for blockage.
Clean blocked nozzles according to the manufacturer’s instructions.
Rinse the interior wash chamber thoroughly.
Brush the electric wash-tank heating element daily.
Keep the low-water probe free from food residue and mineral buildup.
Use only non-sudsing commercial warewashing detergent.
Never use household dishwashing liquid or foaming soap.
Inspect wash arms and hubs for excessive movement or wear.
Confirm that the spray arms rotate freely.
Inspect the door cables, pulleys, counterweight connections, and safety switch.
Keep the temperature and pressure gauges clean and readable.
Check wash pressure during operation.
Check rinse pressure only while the rinse cycle is active.
Check sanitizing temperature during the rinse cycle.
Clean the ventilation system and verify fan operation when installed.
Leave the machine drained and empty when not in use.
Use a qualified technician for pump, motor, heater, controller, wiring, breaker, contactor, door, pressure, and temperature repairs.
Important Notes
Sold as-is, where-is
Fully tested and operational prior to listing
Used commercial warewashing equipment
Exact data-plate model is FL14F
Commercial product family is FL14
Serial number is 2113-0413-5607
Manufactured in April 2013
Electric-heated configuration
Requires 460V electrical service
Requires three-phase power
Requires 60Hz service
Full-load amperage is 36.2A
Motor load is 11.6A
Other electrical loads total 24.6A
Minimum circuit-conductor ampacity is 39.1A
Maximum overcurrent-protection marking appears to be 40A
Requires professional hardwired installation
No electrical plug is used
Includes a 10HP pump
Pump recirculates approximately 180 GPM
Wash pressure must remain within the approved range
Unit data plate specifies 45–65 PSI wash pressure
Wash tank holds approximately 40 gallons
Rinse tank holds approximately 9.5 gallons
Wash-temperature minimum is 150°F
Rinse temperature is 180–195°F
Rinse period is at least 60 seconds
Incoming hot water should be approximately 140°F
Requires a 1/2-inch hot-water supply
Requires a 1.5-inch drain connection
Requires a 6-inch steam-exhaust connection
Detergent feeder is not shown
Utility racks are not shown
Wash-chamber interior is not shown
Electrical control compartment is open in the photos
Electrical service cover is not installed in the photographs
Verify that the electrical cover is present before pickup
Verify internal racks, screens, wash arms, and accessories before purchase
Plastic wrapping limits inspection of some exterior surfaces
Handwritten warehouse markings are visible on the wrapping
Handwritten 1,143-pound marking is not a verified manufacturer weight
Professional moving and rigging are required
Do not lift manually
Do not operate while secured to the shipping pallet
Do not operate with the electrical compartment exposed
Do not energize heaters before correctly filling the machine
Verify correct pump rotation after electrical installation
Do not operate without scrap trays and the pump-inlet screen
Do not obstruct the rotating wash arms
Do not wash loose glassware or fragile household items
Use an approved utensil basket for small items
Do not use foaming household detergent
Maintain correct sanitizing temperature and pressure
Installation must comply with electrical, plumbing, ventilation, sanitation, and building codes
No manufacturer warranty included
Shipping calculated at checkout
Freight or local pickup recommended
Local pickup available
https://oasis-restaurant-equipment.myshopify.com/products/outstanding-condition-lvo-fl14f-14-pan-front-load-commercial-pot-pan-bowl-utensil-washer-460v-3-phase-fully-tested-operational
