Condition
New – Unused – Original Distressed Box
This genuine Wells food warmer is new and unused in its original manufacturer packaging.
The exterior cardboard box shows substantial warehouse and shipping wear, including crushed sections, torn cardboard, open upper flaps, tape, surface dirt, abrasions, handwritten markings, label wear, and general storage damage.
The supplied photographs do not show the actual stainless steel warmer removed from the carton. The product photograph is a reference image representing the MOD200TDM configuration and should not be considered a photograph of the exact unpacked unit.
Because the internal contents are not fully visible, all loose components should be inventoried before installation. Confirm that the dual thermostatic control panel, capillary tubes, electrical wiring, drain manifold, drain valve, mounting hardware, Wellslok components, instructions, and all required fittings remain inside the package.
The distressed condition of the outer cardboard packaging does not automatically indicate damage to the equipment inside. However, the warmer must be unpacked and inspected before shipment, pickup, installation, or energizing.
Please review all supplied photographs for the exact condition of the original packaging.
Model Identification
The manufacturer carton label confirms:
Brand: Wells
Manufacturer: Wells Manufacturing
Parent Company: Middleby
Manufacturer Part Number: 5P-MOD200TDM
Commercial Model: MOD200TDM
Product Description on Carton: Fabricated Warmer 208/240V
Product Type: Two-Well Top-Mount Drop-In Electric Hot Food Warmer
Control Type: Individual Thermostatic Controls
Drain Configuration: Individual Well Drains with Common Manifold
Voltage: 208/240V
Serial Number: MD220223A0019
Manufacturing Date: 02/09/2023
Manufacturing Date in Written Form: February 9, 2023
Manufacturer Quality-Control Marking: Star Manufacturing Inspection Stamp
The model suffix identifies the primary configuration:
MOD200: Two standard 12-inch x 20-inch food wells
T: Thermostatic controls
D: Drains
M: Common drain manifold
This model does not include the AF suffix. It should not be represented as an automatic water-fill model.
Parts Town identifies 5P-MOD200TDM as the genuine OEM replacement number for the former MOD200TDM commercial model.
Description

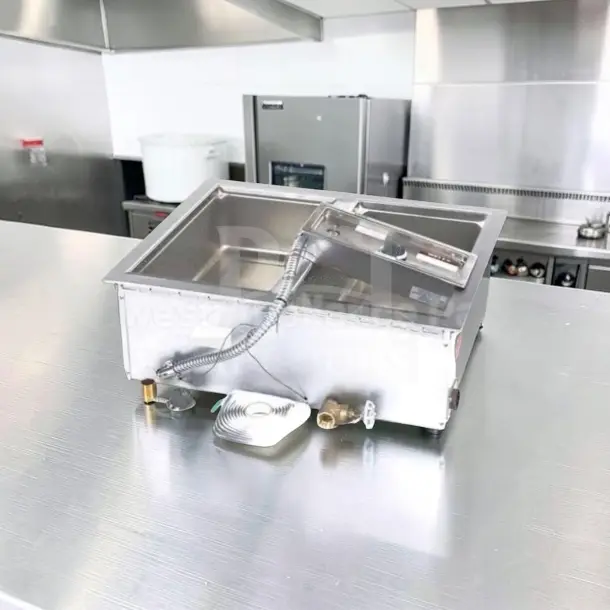

The Wells 5P-MOD200TDM is a heavy-duty commercial drop-in food warmer designed for installation in a fabricated serving counter, buffet line, cafeteria line, restaurant pass, catering counter, concession stand, or other compatible commercial foodservice fixture.
It contains two rectangular wells that accept two standard 12-inch x 20-inch full-size inset pans or compatible fractional-pan combinations.
Each well has its own remote thermostatic control, allowing two different foods to be held at different heat settings. This is especially useful when one well contains a dense entrée or sauce while the other holds vegetables, soup, gravy, pasta, rice, or another product with different holding requirements.
The unit is designed for either wet or dry operation. Wells recommends wet operation for more consistent heating and improved heat transfer. During wet operation, hot water is placed in the warming well below the inset food pan.
A drain in each well allows water to be removed after operation. Both drains connect to a common manifold so the two wells can be emptied through a shared drain-valve arrangement.
The fully insulated housing helps reduce heat loss, improve energy efficiency, support faster preheating, and protect surrounding counter components from unnecessary heat exposure.
Wells confirms that the MOD200 series accommodates two 12-inch x 20-inch pans, supports wet or dry operation, and uses individual controls, insulated construction, high-limit protection, and tubular heating elements. Official Wells MOD200 product information: https://wells-mfg.com/product/mod200/
Food-Pan Capacity
Number of Wells: 2
Full-Size Pan Capacity: Two 12 in x 20 in Food Pans
Maximum Common Pan Depth: Up to Approximately 6 Inches, Subject to Pan and Counter Configuration
Compatible configurations may include:
Two full-size 12 in x 20 in pans
Four half-size pans
Six third-size pans
Eight quarter-size pans
Other compatible fractional-pan combinations
Round inset pans when used with appropriate adapter tops
Actual capacity depends on the size, depth, flange design, and arrangement of the pans and adapters selected.
Food pans must fit correctly inside the warmer without placing excessive pressure on the stainless steel well or top flange.
Suitable Foods
Soups
Chili
Gravy
Sauces
Rice
Pasta
Mashed potatoes
Vegetables
Beans
Macaroni and cheese
Cooked meats
Cooked poultry
Prepared entrées
Casseroles
Breakfast items
Hot toppings
Curry
Stews
Hot side dishes
Other previously cooked food products suitable for commercial hot holding
This warmer is designed for holding food that has already been properly cooked and heated.
It should not be used as the primary appliance for cooking raw food, reheating refrigerated food, thawing frozen food, or rapidly bringing cold food through the food-safety temperature range.
Heating System
Two independently heated food wells
One tubular heating element beneath each well
Powerful under-pan heating arrangement
Even heat distribution across each warming pan
Individual thermostatic temperature regulation
Separate temperature-ready indicator for each well
High-limit over-temperature protection
Fully insulated sides, front, back, and bottom
Wet or dry operating capability
Wet operation recommended for the most consistent results
The tubular elements are positioned beneath the stainless steel warming pans to provide efficient heat transfer without exposing the elements directly to food or cleaning tools.
Thermostatic Controls
Control Type: Dual Remote Thermostatic Controls
Number of Controls: 2
Control Arrangement: One Control per Well
Control Location: Remotely Mounted Front Control Panel
Indicator Lights: Individual Temperature-Ready Indicators
Safety Protection: High-Limit Protection for Each Heating Circuit
The separate controls allow one well to be switched off or operated at a different setting from the other well.
The remote control assembly must be installed in the counter according to the manufacturer’s required orientation, spacing, ventilation, and capillary-tube routing instructions.
Thermostat capillary tubes must not be sharply bent, crushed, shortened, kinked, or placed against damaging heat sources.
Wet or Dry Operation
The MOD200TDM is designed for wet or dry use.
Wet Operation
Wells recommends wet operation for the most consistent food heating.
Add approximately one inch of hot tap water to each required well before energizing the warmer.
Check the water level regularly and add hot water as necessary.
Wet operation generally provides gentler and more even heat transfer around the inset food pan.
Dry Operation
The warmer may be operated without water when appropriate for the food product and pan configuration.
Dry operation may produce different heating characteristics and requires careful monitoring of food temperature.
Critical Operating Rule
Do not change a hot well directly from wet operation to dry operation or from dry operation to wet operation.
Turn the well off and allow it to cool to room temperature before changing operating methods.
Never add water to an overheated empty well. Rapid cooling can damage or deform the warming pan and may create a steam or burn hazard.
The operating precautions are confirmed in the official Wells built-in modular warmer manual: https://wells-mfg.com/wp-content/uploads/2016/08/C_M200-thru-M527_-_2M-Z16298-C-011C.pdf.
Drain and Manifold System
Two drained stainless steel wells
One drain for each well
Drain screens for compatible drain assemblies
Shared drain manifold
Single-point manifold drainage arrangement
Remote drain-valve positioning depending on counter design
The Wells sales literature describes the MOD200 series drain-equipped models as having 1/2-inch well drains. The final manifold outlet, valve, and field drain-line sizes must be confirmed from the components packed with this specific assembly before the counter or plumbing is fabricated.
The drain system is intended for removing clean warming water. It is not designed as a food-waste disposer.
Do not pour grease, solid food, utensils, cleaning pads, packaging, or other debris into the wells or drains.
Electrical Specifications
Power Type: Electric
Voltage: 208/240V
Available Configuration: Single Phase or Manufacturer-Approved Field-Converted Three Phase
Frequency: 50/60Hz – Verify Equipment Nameplate Before Installation
Heating Elements: 2
208V Ratings
Wattage per Well: 1,240W
Total Wattage: 2,480W
Single-Phase Amperage: Approximately 11.9A
Three-Phase Line Amperage: Approximately 6.0A / 6.0A / 10.3A
240V Ratings
Wattage per Well: 1,650W
Total Wattage: 3,300W
Single-Phase Amperage: Approximately 13.8A
Three-Phase Line Amperage: Approximately 6.9A / 6.9A / 11.9A
The current Wells specification sheet lists 1,240W at 208V and 1,650W at 240V per well. With two wells, the total connected load is approximately 2,480W or 3,300W.
The installer must follow the electrical diagram and rating label supplied with the physical unit. The unit-specific label and wiring diagram take precedence over generalized online information.
Electrical Connection
Commercial electrical installation required
Remote master control panel
Terminal-block connection
Grounding connection required
Field wiring required unless an optional factory cord set is confirmed
Optional NEMA 6-15P cord sets have been available for some 208/240V thermostatic configurations
No cord or plug is visible in the supplied photographs
Do not assume that a power cord or plug is included
A licensed commercial electrician must determine:
Final operating voltage
Final phase configuration
Circuit size
Conductor size
Conductor temperature rating
Disconnect requirements
Grounding requirements
Conduit type
Local electrical-code requirements
Do not connect this warmer to 120V power, an extension cord, a household adapter, an improperly sized circuit, or an ungrounded electrical supply.
Overall Dimensions
Width: 29.5 in
Depth: 23.625 in
Height: 9.75 in
Metric Width: Approximately 749 mm
Metric Depth: Approximately 600 mm
Metric Height: Approximately 248 mm
The measurements above apply to the warmer body and top flange. They do not include required service clearance, field plumbing, conduit, drain piping, control-box clearance, food pans, adapters, lids, or the damaged shipping carton.
Counter Cutout Requirements
Approximate Main Counter Cutout Width: 28.5 in
Approximate Main Counter Cutout Depth: 22.5 in
Approximate Remote Control-Panel Cutout Width: 12.875 in
Approximate Remote Control-Panel Cutout Height: 5 in
Published Control-Panel Face Width: Approximately 14 in
Published Control-Panel Face Height: Approximately 6.25 in
Do not cut the installation counter using the general dimensions alone.
The installer must verify the exact installation template and instructions supplied with this specific 5P-MOD200TDM assembly before fabrication. Auto-fill, non-auto-fill, metal-counter, wood-counter, and other configurations may require different cutouts.
Installation Type
Top-mounted
Drop-in
Built into a commercial counter
Remote front-mounted controls
Secured with Wells Wellslok mounting hardware
Counter installation must provide adequate structural support
Counter materials must be compatible with commercial food-warming equipment
The one-piece upper flange is installed from above the counter. The underside of the flange must be properly sealed, and the Wellslok tabs must be positioned according to the Wells installation instructions.
A thin bead of food-grade silicone should be applied around the installed flange where required to prevent water and food residue from entering the counter.
Construction
One-piece stainless steel top flange
Two heavy-gauge deep-drawn stainless steel warming pans
Corrosion-resistant exterior housing
Fully insulated sides
Fully insulated front and back
Fully insulated bottom
Two tubular heating elements
Two independent thermostatic controls
Remote one-piece control panel
Individual indicator lights
Individual high-limit protection
Two drain assemblies
Common drain manifold
Commercial electrical terminal connections
Wellslok mounting system
Rectangular two-well configuration
Drop-in commercial construction
Key Features
New genuine Wells OEM equipment
2023 manufacturing date
Two full-size food wells
Accepts two 12 in x 20 in pans
Compatible with fractional-pan arrangements
Individual thermostatic control for each well
Independent temperature adjustment
Separate temperature-ready indicator lights
Wet or dry operation
Wet operation recommended
Two drains
Common drain manifold
Fully insulated construction
Improved heat retention
Efficient preheating and recovery
Tubular under-pan heating elements
Even heat distribution
High-limit over-temperature protection
One-piece stainless steel top flange
Deep-drawn stainless steel wells
Remote front-mounted controls
Wellslok installation system
208/240V compatibility
Manufacturer-approved single- or three-phase configuration
Commercial drop-in design
Suitable for serving lines and fabricated counters
Suitable Applications
Restaurants
Buffets
Cafeterias
Hotels
Resorts
Catering facilities
Banquet kitchens
Commissary kitchens
School cafeterias
University dining facilities
Hospital kitchens
Healthcare foodservice
Corporate cafeterias
Convenience stores
Concession stands
Stadium concessions
Food courts
Supermarket hot-food departments
Delis
Institutional kitchens
Assisted-living foodservice
Correctional-facility kitchens
Military foodservice
Mobile serving counters when professionally installed
Final suitability depends on electrical service, counter construction, drainage, local sanitation requirements, menu, pan configuration, service volume, and installation clearances.
Certifications
The published Wells MOD200-series specifications identify applicable:
NSF Certification
UL / cULus Certification
Certification markings on the physical unit should be inspected before installation when an electrical inspector, health department, architect, or authority having jurisdiction requires confirmation of a particular listing or standard.
The official specification sheet also confirms the unit’s two-well capacity, insulated construction, controls, drains, dimensions, wattage, and published approvals. Wells MOD200-series specification sheet: https://cdn.beedash.com/Wells/b263dddd8ef135c7bbb4ad93fb7e280f115e5325.pdf
Manufacturing Information
Brand: Wells
Manufacturer: Wells Manufacturing
Manufacturer Part Number: 5P-MOD200TDM
Commercial Model: MOD200TDM
Product Family: MOD200 Series
Product Type: Commercial Two-Well Drop-In Hot Food Warmer
Serial Number: MD220223A0019
Manufacturing Date: February 9, 2023
Voltage: 208/240V
Country of Manufacture: United States According to Published Product Information – Verify Physical Equipment Label
Manufacturer Location Published in Current Literature: Smithville, Tennessee, USA
Published Weight
Published Shipping Weight: Approximately 51 lb
The exact net equipment weight is not separately confirmed on the supplied carton label.
The published weight does not include the fabricated counter, food pans, water, field plumbing, external drain lines, conduit, or packaging added for freight shipment.
Included
One Wells 5P-MOD200TDM fabricated warmer assembly
Two stainless steel food-warming wells
Two installed heating-element assemblies
One-piece stainless steel top flange
Insulated warmer housing
Two well-drain assemblies
Common drain-manifold configuration
Dual thermostatic control system
Remote control-panel assembly associated with this model
Two indicator-light circuits
High-limit protection
Electrical terminal connections
Manufacturer identification label
Original manufacturer cardboard packaging
All factory-packed components remaining inside the carton
Unit sold exactly as pictured and packaged
Because the carton contents were not fully unpacked, the exact presence of every loose control, fitting, valve, fastener, wire, and mounting component must be confirmed before sale or installation.
Not Included
Full-size food pans
Fractional food pans
Round inset pans
Adapter tops
Pan lids
Serving utensils
Ladles
Counter or serving line
Counter fabrication
Food-grade silicone
Field electrical wiring
Electrical conduit
Building disconnect
Extension cord
Voltage transformer
Phase converter
External power adapter
Optional cord set unless found inside the carton
Plumbing drain line
Floor drain
Air gap
Drain receptor
Grease interceptor
Water-fill connection
Automatic water-fill system
Water-fill solenoid
Auto-fill controls
Backflow preventer
Installation labor
Electrical installation
Plumbing installation
Counter fabrication
Freight handling equipment
Replacement cardboard box
Accessories not shown or confirmed inside the package
Installation Requirements
Installation and startup must be completed by qualified commercial-equipment installers and licensed electricians.
Unpack the unit completely and inspect it for concealed freight or warehouse damage.
Confirm that both stainless steel wells are free from dents, cracks, punctures, warped flanges, damaged drains, and damaged heating assemblies.
Inventory all loose components before discarding the damaged box.
Verify the physical electrical nameplate.
Confirm whether the warmer will operate at 208V or 240V.
Confirm the required single- or three-phase configuration.
Follow the factory wiring diagram exactly.
Provide an appropriately sized grounded electrical circuit.
Install an accessible commercial disconnect where required.
Do not energize the unit while it remains inside the cardboard box.
Do not energize the warmer before the remote controls, grounding, drain system, and counter mounting have been completed.
Fabricate the counter using the exact supplied installation template.
Provide adequate support beneath the counter.
Seal the top flange using approved food-grade material.
Secure all Wellslok mounting tabs.
Install the control panel where it remains visible, accessible, and protected from water.
Route capillary tubes without crushing or kinking them.
Connect the drain manifold to a suitable drain system.
Ensure the drain valve remains accessible.
Comply with all local electrical, plumbing, sanitation, building, and fire codes.
Cleaning & Care
Disconnect electrical power and allow the unit to cool completely before cleaning.
Remove all inset food pans.
Drain the water from both wells.
Do not leave standing water in the wells when the warmer is not in use.
Clean stainless steel surfaces with a soft cloth, mild detergent, and warm water.
Wipe in the direction of the stainless steel grain.
Rinse away detergent residue.
Dry the wells and flange after cleaning.
Keep drain screens and drain openings clear.
Inspect the manifold and drain valve for blockage or leakage.
Do not use steel wool.
Do not use wire brushes.
Do not use metal scrapers.
Do not use corrosive chemicals.
Do not use chlorinated cleaners for extended contact.
Do not pour water over the remote control panel.
Do not spray the warmer with a hose or pressure washer.
Do not submerge thermostats, controls, wiring, or electrical components.
Remove mineral scale using a product approved for commercial stainless steel food-warming equipment.
Use a qualified technician for thermostat, high-limit, element, wiring, drain, or control-panel repairs.
Important Notes
New and unused equipment
Original manufacturer packaging included
Outer packaging is heavily distressed
Cardboard box has tears, crushing, open sections, tape, dirt, and storage wear
Actual warmer is not shown unpacked
Reference product photograph is not an exact unpacked-unit photograph
Internal cosmetic and physical condition must be inspected
Exact package contents must be inventoried
Manufacturing date is February 9, 2023
Exact part number is 5P-MOD200TDM
Commercial model is MOD200TDM
Serial number is MD220223A0019
Designed for two 12 in x 20 in food pans
Food pans are not included unless found inside the carton
Thermostatic control for each well
Drained-well configuration
Common drain manifold
No automatic water-fill system
Supports wet or dry operation
Wet operation is recommended
Do not add water to an overheated dry well
Do not change between wet and dry operation until the well cools
Requires 208V or 240V electrical service
Final phase configuration must be verified
Professional electrical installation required
Final amperage depends on voltage and phase configuration
Do not assume a cord or plug is included
Counter fabrication is required
Drain installation is required
Not designed for cooking raw food
Not designed for reheating cold food
Food must be heated to the required safe temperature before placement in the warmer
Buyer is responsible for confirming local health-code requirements
Manufacturer warranty coverage is not guaranteed and must be confirmed directly using the serial number and purchase documentation
Shipping calculated at checkout
Local pickup available
https://oasis-restaurant-equipment.myshopify.com/products/brand-new-wells-5p-mod200tdm-two-well-top-mount-drop-in-food-warmer-thermostatic-controls-drains-manifold-208-240v
