Condition
New – Pristine Condition – Inspected & Ready for Commercial Use

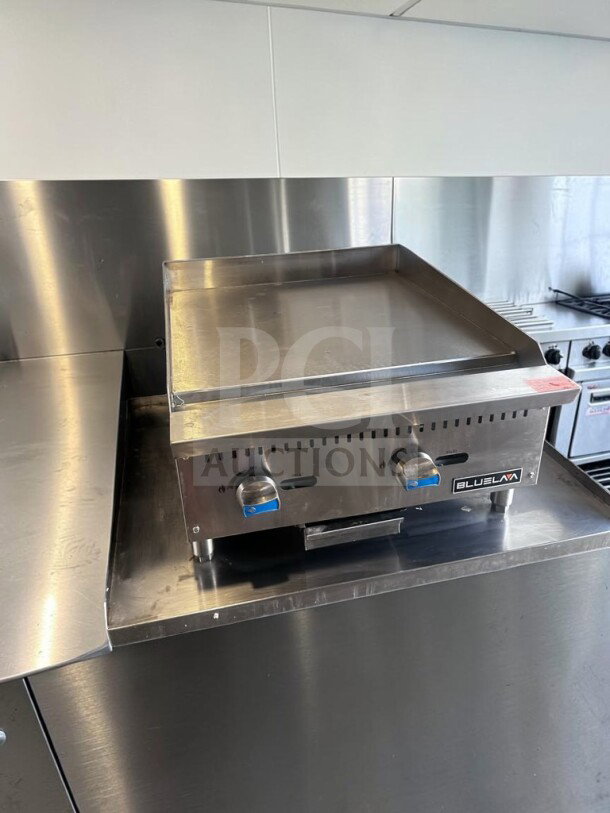

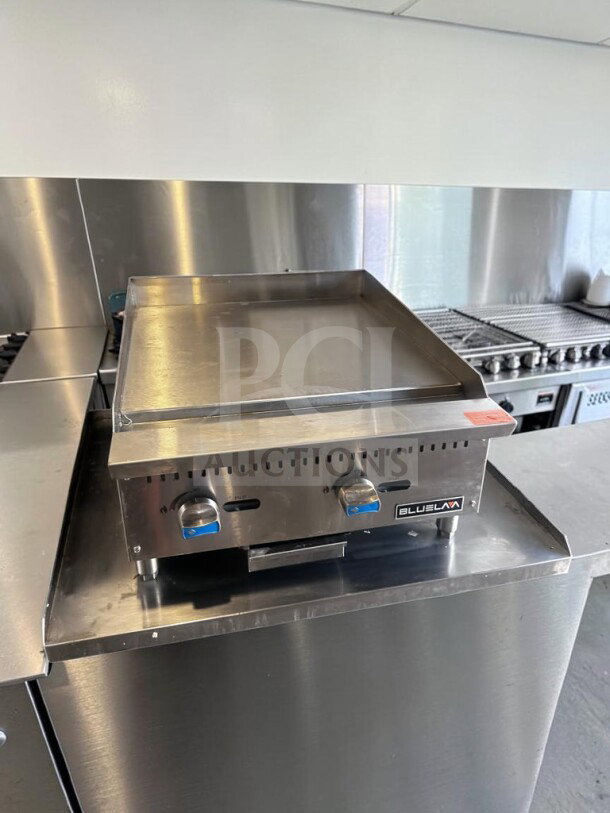

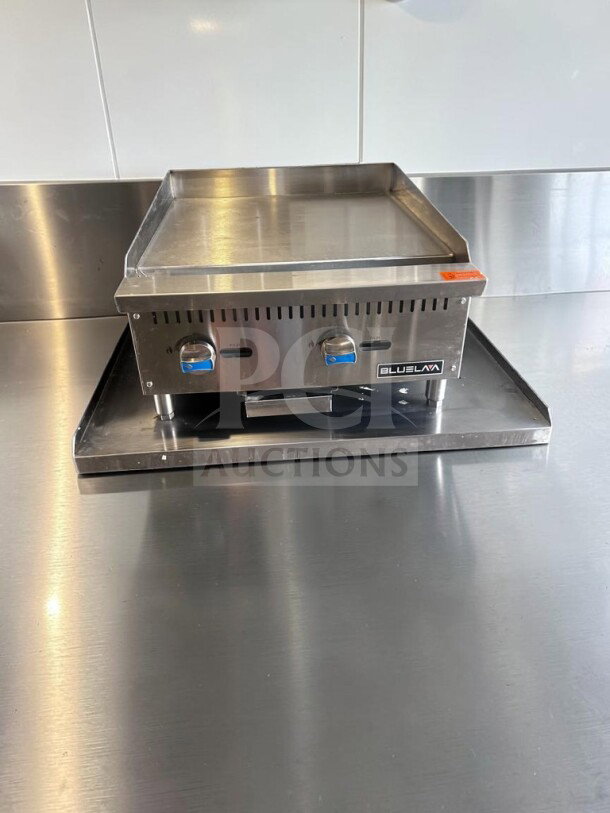

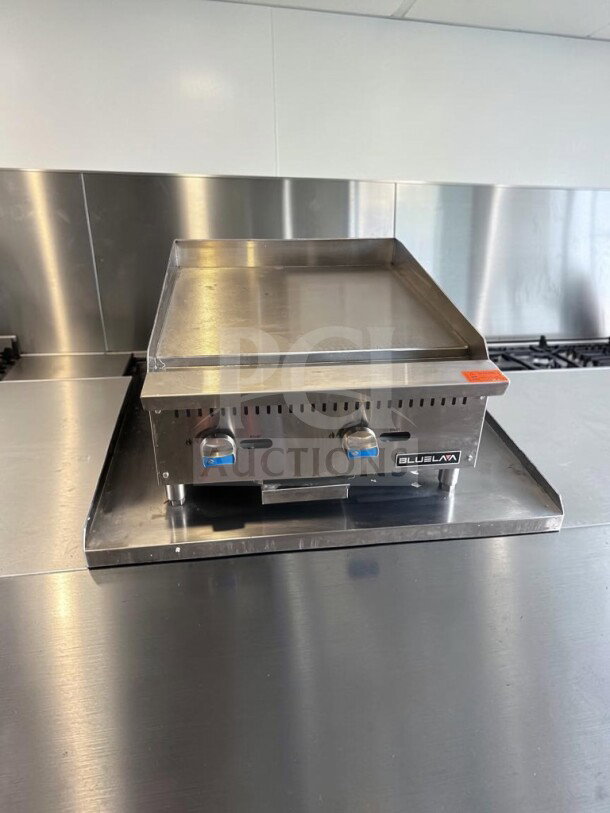

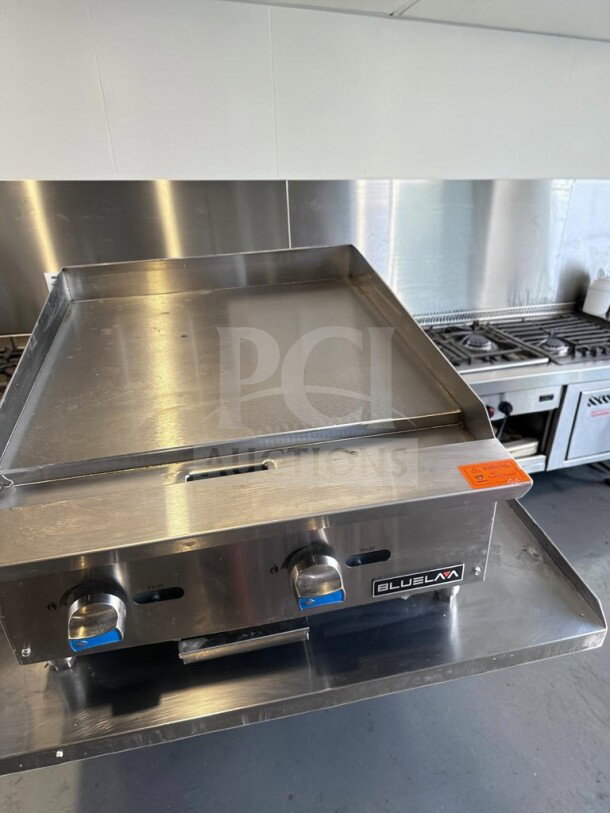

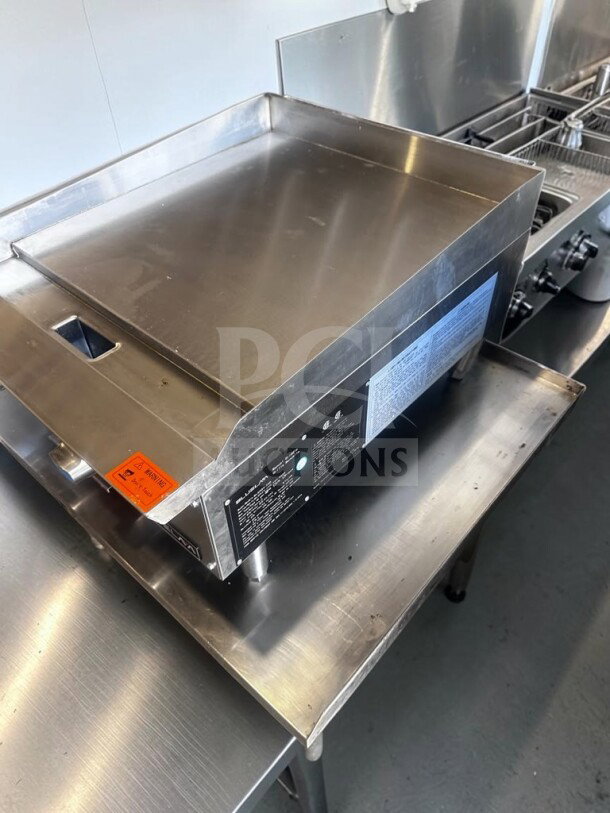

This Blue Lava commercial countertop griddle is offered in new condition and has been inspected to confirm that the major controls, cooking plate, grease-management components, burners, pilots, gas connections, and adjustable legs are present.
The stainless steel exterior may show light surface marks, fingerprints, residue, or minor cosmetic imperfections resulting from storage, handling, and display. These marks do not affect the griddle’s intended commercial performance.

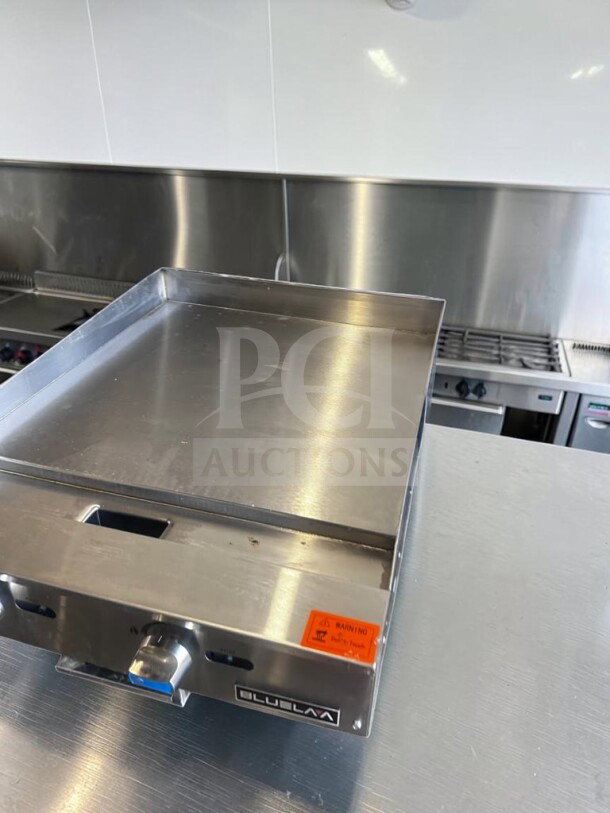

The protective covering visible on the front handle area should be removed before installation and operation. Please review all supplied photos carefully for the exact physical condition and included components.
Description

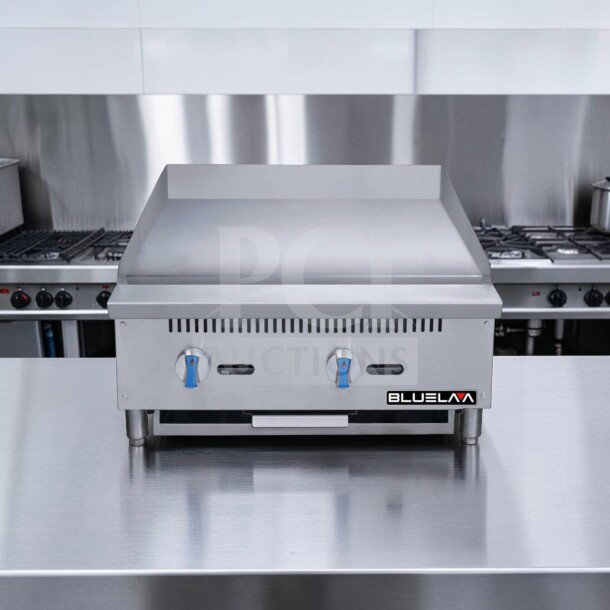

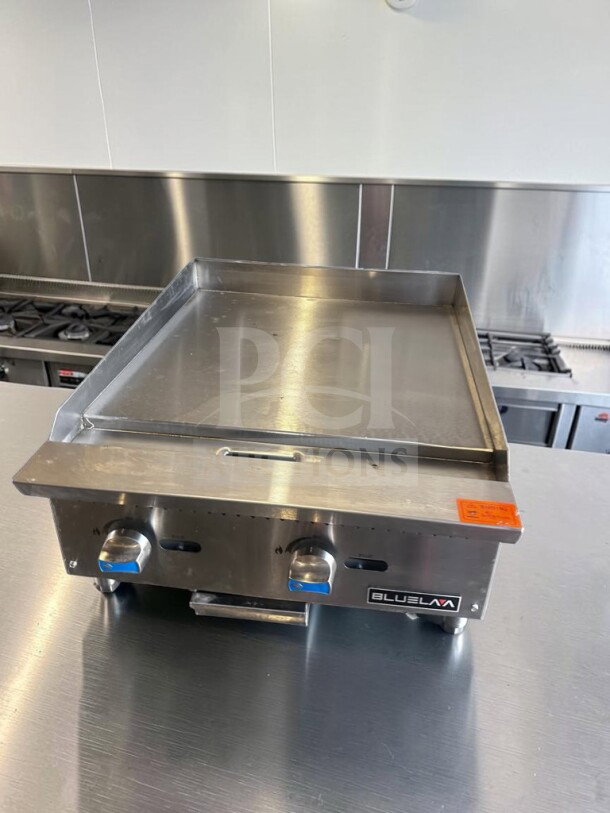

The Blue Lava BLGM24-24D is a heavy-duty commercial countertop gas griddle designed for restaurants, diners, cafés, breakfast kitchens, concession operations, food trucks, hotels, catering facilities, and other high-volume foodservice environments.
This model features a spacious 24-inch-wide cooking surface supported by a durable 1-inch-thick griddle plate. The substantial plate construction helps retain and distribute heat across the cooking area, making the unit suitable for preparing burgers, steaks, eggs, pancakes, bacon, sausage, grilled sandwiches, vegetables, and other popular menu items.
Two independently controlled burners provide a combined output of 60,000 BTU per hour, with each 12-inch cooking section receiving approximately 30,000 BTU. Separate manual controls allow the operator to establish different heat zones across the plate, making it easier to cook multiple foods simultaneously.
The griddle also includes ever-ready standby pilots, a removable full-length grease tray, stainless steel exterior construction, and adjustable legs. Its straightforward manual-control design is well suited to demanding commercial kitchens that require dependable operation and easy maintenance.
The official Blue Air product catalog identifies BLGM24-24D as part of its commercial griddle line, while the manufacturer specification sheet confirms the 24-inch width, 33.5-inch depth, 15.25-inch height, dual 30,000-BTU burners, 1-inch plate, removable drip pan, and natural-gas factory setup.
Cooking Specifications
Cooking Surface Width: 24 in Cooking Surface Depth: Approximately 24 in Griddle Plate Thickness: 1 in Number of Burners: 2 Output per Burner: 30,000 BTU per Hour Total Output: 60,000 BTU per Hour Control Type: Manual Heat Zones: 2 Independently Controlled Sections Pilot System: Ever-Ready Standby Pilots Installation Type: Countertop Primary Gas Configuration: Natural Gas
The burner output and plate specifications are supported by the manufacturer specification sheet and current equipment listings for this exact model.
Gas Specifications
Power Type: Natural Gas Gas Type Shown on Data Plate: Natural Gas Total Input Rating: 60,000 BTU per Hour Number of Burners: 2 Natural-Gas Orifice Size: No. 37 LP-Gas Orifice Size: No. 52 Natural-Gas Manifold Pressure: 4 in W.C. Propane Manifold Pressure: 10 in W.C. Electrical Connection: Not Required for Standard Operation
The data plate confirms that this specific unit is configured for natural gas. Although manufacturer literature indicates that conversion components may have originally been supplied with new units, an LP conversion kit should not be assumed to be included unless it is physically shown or confirmed.
Gas conversion, regulator adjustment, installation, and testing must be performed by a licensed commercial gas technician.
Dimensions
Width: 24 in Depth: 33.5 in Height: 15.25 in
These published overall dimensions include the countertop griddle body and standard adjustable legs. Buyers should allow additional space for gas connections, ventilation, service access, and required installation clearances.
Electrical Specifications
Voltage: Not Applicable Phase: Not Applicable Frequency: Not Applicable Amperage: Not Applicable
This manually controlled gas griddle does not require a standard electrical connection for normal burner operation.
Construction
Heavy-duty commercial stainless steel exterior
One-inch-thick commercial griddle plate
Two independently controlled cooking zones
Two high-output gas burners
Front-mounted manual control knobs
Ever-ready standby pilot system
Full-length removable grease and crumb tray
Raised splash guards along the rear and sides
Front grease channel
Adjustable stainless steel legs
Front-access service design
Countertop commercial configuration
Durable construction for continuous foodservice use
Key Features
24-inch-wide commercial cooking surface
Deep 24-inch griddle-plate configuration
Heavy-duty 1-inch-thick plate
Total cooking power of 60,000 BTU
Two 30,000-BTU burners
Independent manual controls
Two separate cooking-temperature zones
Standby pilots provide quick burner ignition
Raised rear and side guards help contain grease
Full-length removable drip tray simplifies cleaning
Stainless steel exterior supports commercial sanitation
Adjustable legs assist with leveling
No electrical supply required
Compact countertop footprint
Suitable for continuous restaurant operation
Natural-gas configuration confirmed by the equipment plate
Recommended Applications
Suitable Menu Items
Certifications

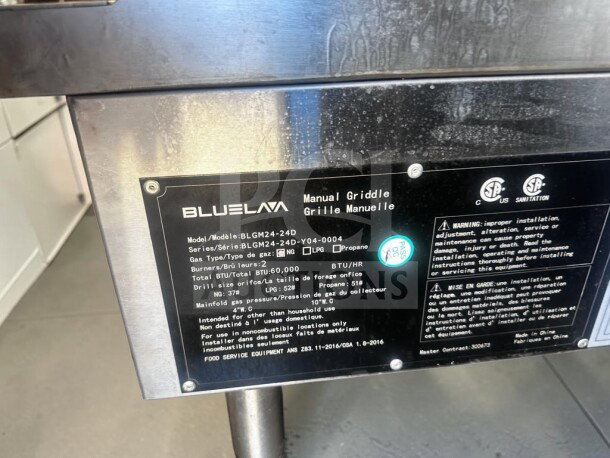

The manufacturer data plate displays:
Certifications apply to the product as manufactured. Final compliance depends on correct professional installation, gas setup, ventilation, clearances, and local code requirements.
Installation Requirements
Professional commercial gas installation required
Correct natural-gas supply pressure required
Properly sized gas line required
Approved shutoff valve required
Commercial gas regulator may be required
Approved flexible commercial connector may be required
Installation beneath an approved commercial ventilation hood may be required
Fire-suppression coverage may be required
Adequate rear and side clearances must be maintained
Unit must be leveled before operation
Leak testing must be completed before use
Local fire, gas, building, and health codes must be followed
The data plate indicates that this appliance is intended for installation on noncombustible surfaces. A qualified installer should review all clearance and ventilation requirements before placing the unit into service.
Manufacturing Information
Brand: Blue Lava Manufacturer / Parent Brand: Blue Air FSE Model: BLGM24-24D Series Number: BLGM24-24D-Y04-0004 Equipment Type: Heavy-Duty Manual Countertop Gas Griddle Gas Configuration: Natural Gas Total Input: 60,000 BTU per Hour Country of Manufacture: China
Included
Blue Lava BLGM24-24D commercial griddle
Heavy-duty 24-inch cooking plate
Two installed gas burners
Two manual control knobs
Installed pilot system
Full-length grease tray
Adjustable countertop legs
Installed components shown in the supplied photos
The griddle is sold exactly as shown in the photos.
The stainless steel equipment stand beneath the griddle, LP conversion kit, gas connector, regulator, shutoff valve, installation hardware, ventilation hood, and surrounding equipment are not included unless specifically stated.
