Condition
Used – Dependable Condition – Fully Tested & Operational
This True commercial reach-in refrigerator has been professionally inspected and tested to confirm proper cooling and basic operation before listing.
The cabinet shows noticeable cosmetic wear consistent with previous commercial kitchen use, transportation, and warehouse storage.
Visible cosmetic conditions include:
Surface scratches
Scuff marks
Stains and discoloration
Adhesive and sticker residue
Marks across the stainless steel door
Wear around the handle and lower cabinet
General oxidation and warehouse dust on exposed components

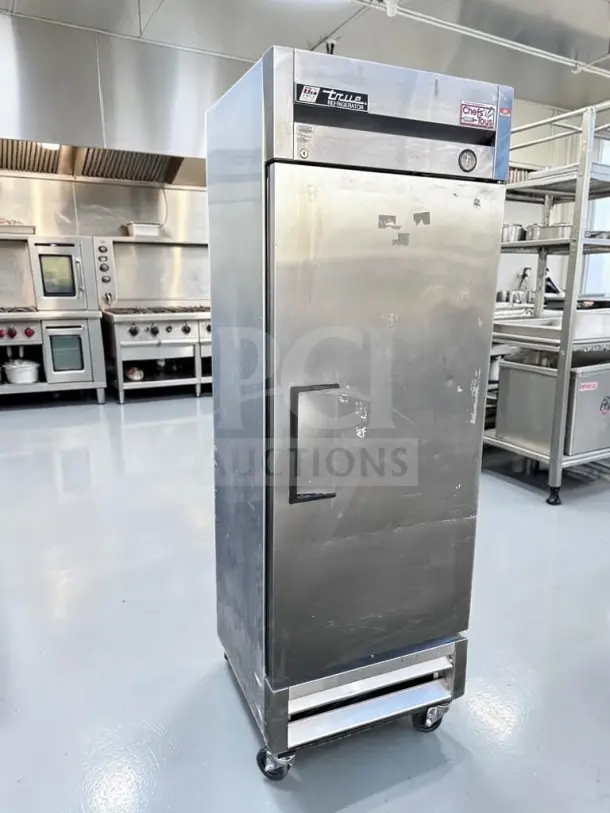

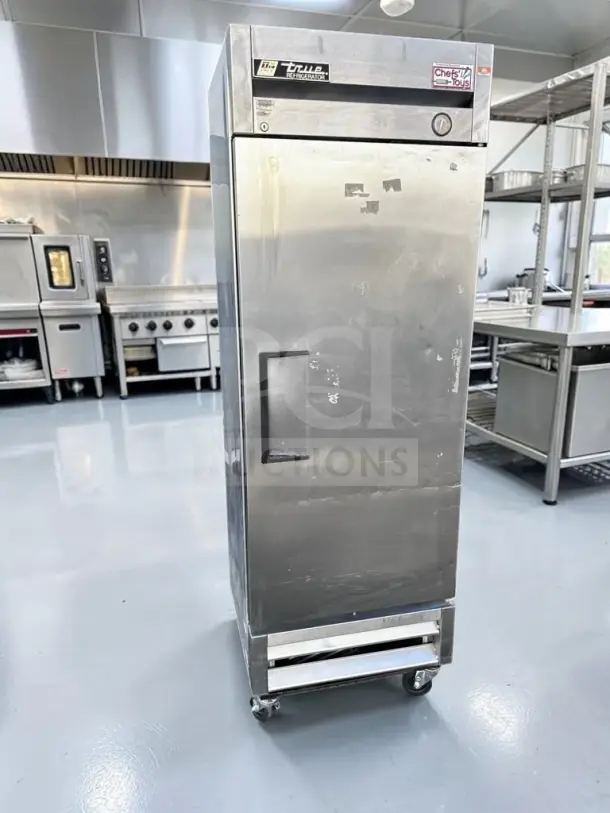

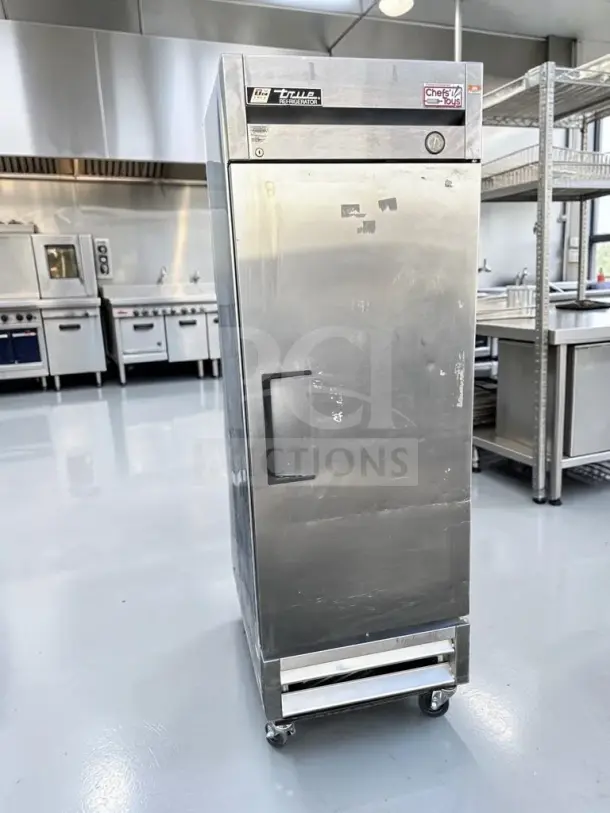

The following components are visible in the supplied photographs:
One full-height solid stainless steel door
One black vertical pull handle
Stainless steel front cabinet
Aluminum-finished side panel
Upper True identification badge
Upper control and temperature-display area
Lower-mounted refrigeration compartment
Lower front ventilation assembly
Four swivel casters
Manufacturer data plate
Chef’s Toys inventory sticker
The exterior door remains installed and appears structurally intact. The door gasket, self-closing mechanism, lock, temperature display, interior light, shelves, shelf clips, evaporator cover, drain system, complete power cord, and rear refrigeration components are not fully shown and should be inspected during final pickup verification.
The interior is not shown in the supplied photographs. Interior shelving must not be assumed included unless physically confirmed.
Please review all supplied photographs for the exact cosmetic condition.
Exact Model Identification

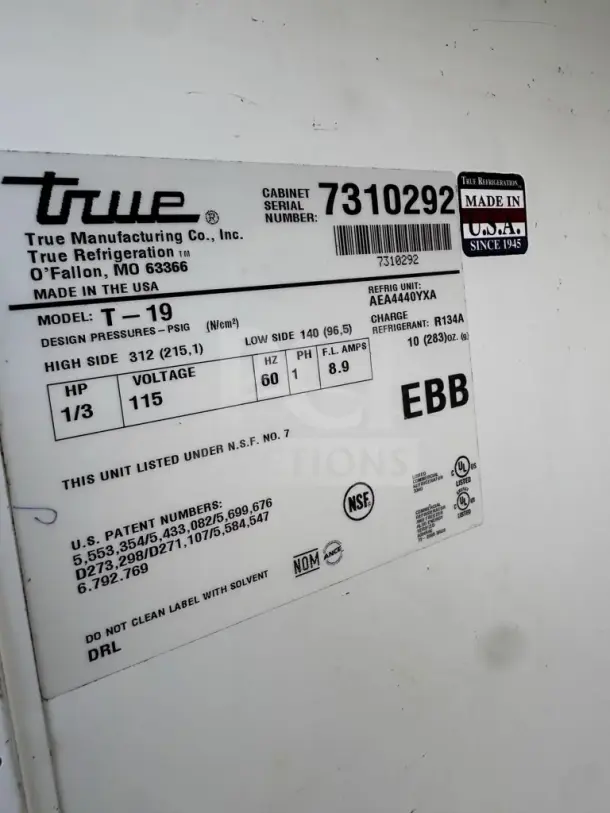

The physical True manufacturer data plate confirms:
Brand: True Refrigeration
Manufacturer: True Manufacturing Co., Inc.
Exact Model: T-19
Product Type: Commercial One-Section Reach-In Refrigerator
Door Configuration: One Full-Height Solid Door
Cabinet Serial Number: 7310292
Refrigeration Unit: AEA4440YXA
Voltage: 115V
Frequency: 60Hz
Phase: Single Phase
Full-Load Amperage: 8.9A
Horsepower: 1/3 HP
Refrigerant: R134a
Refrigerant Charge: 10 oz / 283 g
High-Side Design Pressure: 312 PSIG
Low-Side Design Pressure: 140 PSIG
Country of Manufacture: USA
NSF Classification: Listed Under NSF Standard No. 7
UL Markings: Present
Manufacturing Date: Not Confirmed
The serial number may be entered into the official True serial-number lookup: https://www.truemfg.com/support/serial-number-lookup/ when manufacturing records, exact replacement parts, wiring diagrams, or serial-specific service documents are required.
Important Model-Version Clarification
This unit is the older True T-19 with R134a refrigerant and an 8.9-amp data-plate rating.
It is not the currently manufactured T-19-HC hydrocarbon model.
The current T-19-HC uses R290 refrigerant and has substantially different electrical and refrigeration specifications. Those current-model figures must not be substituted for the photographed unit. The physical data plate on this refrigerator is the controlling specification.
Legacy True literature identifies the T-19 configuration as a 27-inch-wide, one-door refrigerator with three standard shelves, a 1/3-horsepower refrigeration system, 8.9-amp operation, and R134a refrigerant. Legacy True refrigeration catalog: https://greenleafpacific.com/image/catalogues/true_refrigeration_equip_catalog_2015.pdf

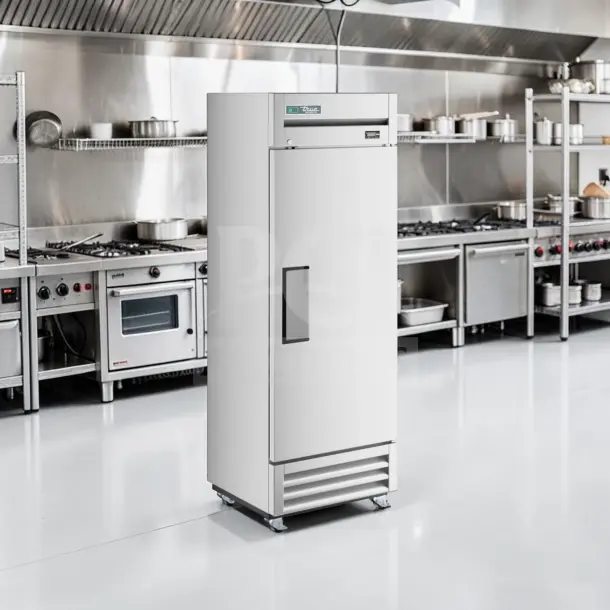

Description
The True T-19 is a narrow, commercial-grade reach-in refrigerator designed for cold storage in restaurants, cafés, bakeries, bars, hotels, catering kitchens, institutional foodservice operations, convenience stores, and other professional facilities.
Its approximately 27-inch-wide cabinet provides upright refrigerated storage while occupying less floor width than larger two- and three-section reach-in refrigerators.
The full-height solid door helps reduce light exposure and heat infiltration compared with transparent merchandising doors. The bottom-mounted refrigeration system raises the usable lower shelf area and allows the refrigeration compartment to be accessed from the lower portion of the cabinet.
The cabinet was manufactured with a stainless steel front, aluminum-finished exterior panels, an aluminum interior liner, a stainless steel interior floor, polyurethane insulation, adjustable shelving, a self-closing door system, an exterior temperature display, and commercial swivel casters.
Legacy True T-Series literature publishes a factory operating range of approximately 33°F to 38°F for properly installed and maintained refrigerators. It also describes the system as an oversized, factory-balanced R134a refrigeration system. Legacy True refrigeration catalog: https://greenleafpacific.com/image/catalogues/true_refrigeration_equip_catalog_2015.pdf
Temperature Performance
Manufacturer-Published Operating Range: Approximately 33°F to 38°F
Temperature Application: Commercial Refrigerated Food Storage
Freezer Operation: No
Temperature Control: Commercial Cabinet Thermostat – Exact Installed Control Must Be Verified

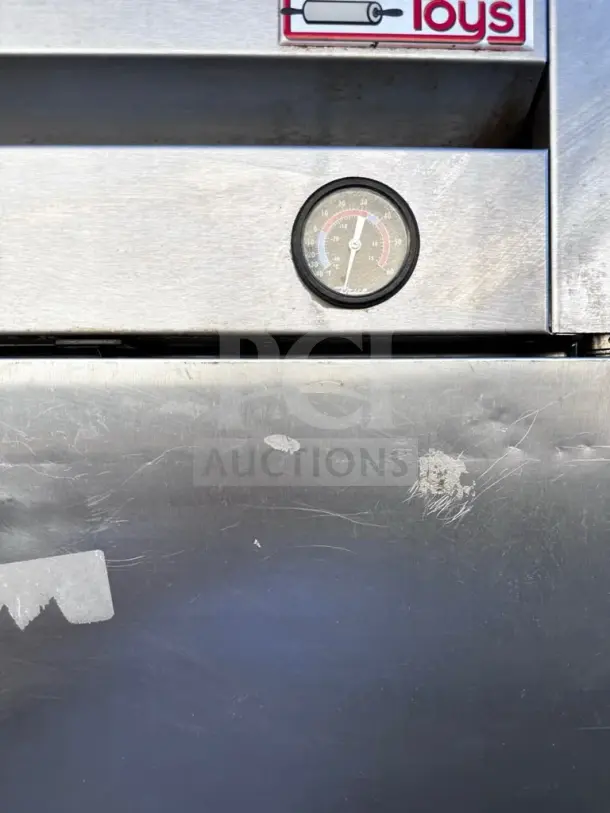

Exterior Temperature Display: Standard Legacy T-Series Feature – Test Physical Display
Actual cabinet temperature depends on:
Ambient kitchen temperature
Condenser cleanliness
Door-opening frequency
Door-gasket condition
Thermostat calibration
Food-loading temperature
Product arrangement
Interior airflow
Evaporator-fan performance
Condenser-fan performance
Compressor condition
Refrigerant charge
Electrical voltage
Rear ventilation
Cabinet leveling
The refrigerator should be operated empty and monitored with a calibrated commercial thermometer before food is loaded.
Food must not block the evaporator housing or rear air-distribution path.
The manufacturer’s legacy manual advises maintaining approximately four inches of clearance between stored product and the evaporator housing to support proper airflow.
Refrigeration System
Self-contained commercial refrigeration system
Bottom-mounted condensing unit
1/3-horsepower data-plate rating
Forced-air cabinet circulation
R134a refrigerant
10-ounce / 283-gram refrigerant charge
Commercial hermetic compressor
Condenser coil
Condenser fan
Evaporator coil
Evaporator fan
Capillary-tube refrigerant-control system associated with this model family
Thermostatic cabinet-temperature control
Condensate-management components
Filter drier
Compressor starting components
Compressor overload protection
Lower front service access
The bottom-mounted refrigeration arrangement allows the compressor to operate closer to the cooler, lower section of the kitchen and provides easier service access than many top-mounted systems.
The physical condition of the compressor, fan motors, condenser coil, evaporator, drain pan, refrigerant tubing, wiring, and starting components should be inspected before final commercial installation.
R134a Refrigerant
Refrigerant Type: R134a
Factory Data-Plate Charge: 10 oz / 283 g
High-Side Design Pressure: 312 PSIG
Low-Side Design Pressure: 140 PSIG
This refrigerator does not use the R290 refrigerant found in the current T-19-HC model.
The sealed refrigeration system should be serviced only by qualified commercial-refrigeration technicians using approved recovery, evacuation, leak-testing, charging, and repair procedures.
Refrigerant must not be released intentionally.
Do not drill, cut, crush, bend, heat, or puncture the refrigerant tubing.
Any replacement compressor, refrigerant, lubricant, filter drier, fan motor, thermostat, or electrical component must be selected according to the physical model and serial number.
Electrical Specifications
Power Type: Electric
Voltage: 115V
Phase: Single Phase
Frequency: 60Hz
Full-Load Amperage: 8.9A
Refrigeration Horsepower: 1/3 HP
Electrical Connection: Factory Power Cord – Complete Cord and Plug Not Shown
Recommended Circuit: Dedicated Grounded 115V Circuit
Common Factory Plug Configuration: NEMA 5-15P – Verify Physical Plug Before Installation
Extension Cord: Not Permitted
The refrigerator must be connected directly to a correctly grounded receptacle supplying the voltage shown on the physical data plate.
The manufacturer requires a dedicated circuit and warns against removing the grounding pin or operating the refrigerator through an extension cord. True T-Series installation manual: https://s1.img-b.com/build.com/mediabase/specifications/true/1304120/true-t-12-use-and-care.pdf
Before installation, inspect the complete cord and plug for:
Cuts
Cracks
Abrasion
Heat damage
Missing grounding pin
Loose terminals
Crushed insulation
Exposed conductors
Unauthorized splices
After disconnecting or switching off the refrigerator, wait at least five minutes before restarting it.
Dimensions
Legacy True literature publishes the following T-19 cabinet dimensions:
Width: 27 in
Depth: 24.5 in
Cabinet Height Without Casters: 75.25 in
Standard Caster Height: Approximately 3.25 in
Approximate Overall Height With Standard Casters: 78.5 in
Metric dimensions published in the legacy catalog:
Width: 686 mm
Depth: 623 mm
Cabinet Height: 1,912 mm
The listed height excludes the casters.
The physical refrigerator should be measured before:
Passing through doorways
Placing beneath overhead obstructions
Installing inside an existing equipment line
Ordering freight service
Constructing wall restraints
Positioning beside fixed counters
Installing replacement casters or legs
Allow additional clearance for the rear access panel, power cord, electrical plug, airflow, door swing, handle projection, cleaning, and service access.
Capacity
Nominal Capacity Class: 19 Cu. Ft.
Actual usable storage capacity depends on:
Number of shelves installed
Shelf spacing
Evaporator clearance
Product container dimensions
Air-circulation requirements
Food-pan dimensions
Door clearance
Required separation of food products
Interior accessories
The nominal capacity should not be interpreted as the exact usable volume available for every product arrangement.
Published Weight
Legacy Published Crated Weight: Approximately 109 kg / 240 lb
The actual used-unit weight may vary depending on:
Shelves
Shelf clips
Casters
Replacement components
Compressor revision
Door hardware
Packaging
Pallet
Protective wrap
Do not move the refrigerator by pulling on the door, handle, power cord, refrigeration tubing, temperature display, or lower grille.
Use a properly rated appliance dolly, pallet jack, lift gate, or forklift.
Cabinet Construction
Stainless steel front
Stainless steel solid door exterior
Anodized aluminum-finished exterior side panels
Aluminum-finished exterior top and rear components
Clear-coated aluminum interior liner in the standard legacy configuration
Stainless steel interior floor
Foamed-in-place polyurethane insulation
Heavy-duty steel lower frame
Bottom-mounted refrigeration system
Lower front service access
Full-height insulated door
Commercial door gasket
Adjustable shelf-pilaster system
Commercial swivel casters
Exterior temperature-display area
Upper identification and control panel
The interior is not shown. Interior liner condition, stainless steel floor condition, evaporator-cover condition, drain components, shelf pilasters, and shelving must be verified physically.
Door System
One full-height solid insulated door
Right-side hinge orientation as photographed
Handle positioned on the left side
Black vertical pull handle
Commercial magnetic door gasket
Positive-seal door design
Self-closing door configuration published for the T-Series
Torsion-style closure system published for the T-Series
Door-lock system published as standard for the legacy T-Series
The current operation of the self-closing mechanism and lock has not been visually confirmed from the photographs.
Inspect the door for:
Smooth opening and closing
Correct hinge alignment
Adequate self-closing force
Full gasket contact
Gasket cracks or hardened sections
Loose handle hardware
Door sagging
Hinge wear
Lock operation
Air leakage
Condensation around the frame
Replacement handle modifications
The visible black handle should be treated as the installed handle on this particular unit. Its originality should not be assumed without serial-specific confirmation.
Shelving
Legacy Factory Configuration: Three Adjustable Heavy-Duty PVC-Coated Wire Shelves
Shelves Visible in Supplied Photographs: None – Interior Not Shown
Shelves Guaranteed Included: No, Unless Physically Confirmed at Pickup
The original model series was typically supplied with three adjustable shelves and four shelf clips per shelf.
Because no interior photograph was supplied, do not assume that the following are included:
Three shelves
Shelf clips
Shelf pilasters
Shelf supports
Replacement shelving
Tray slides
Food-pan racks
Shelf dividers
Shelf liners
Inspect all shelves for:
Bent wires
Broken welds
Damaged coating
Rust
Missing clips
Uneven positioning
Excessive loading damage
Shelves must be level, correctly supported, and arranged to preserve cabinet airflow.
Interior Lighting
Legacy T-Series solid-door models were commonly equipped with incandescent interior lighting.
The following have not been confirmed from the photographs:
Interior lamp
Lamp socket
Lamp shield
Door-activated light switch
Manual light switch
Complete lighting wiring
Lighting operation
Disconnect electrical power before replacing any bulb, lamp socket, switch, or wiring component.
Casters
Four swivel casters are visible.
Legacy True literature identifies approximately 2.5-inch-diameter swivel casters with an approximate installed height of 3.25 inches as standard equipment for the T-19.
Inspect every caster for:
Secure attachment
Bent stems
Wheel damage
Flat spots
Grease buildup
Bearing wear
Brake operation
Cabinet stability
All casters must remain firmly seated against the lower frame.
The refrigerator must be leveled front to back and side to side. A poorly leveled cabinet can affect door operation and condensate drainage.
Key Features
Exact legacy True T-19 model
One-section upright refrigerator
One full-height solid door
Approximately 27-inch cabinet width
Nominal 19-cubic-foot capacity class
Stainless steel front
Stainless steel door exterior
Aluminum-finished side panels
Bottom-mounted refrigeration system
1/3-horsepower data-plate rating
115V electrical operation
Single-phase configuration
8.9-amp full-load rating
60Hz operation
R134a refrigerant
10-ounce refrigerant charge
Approximately 33–38°F published holding range
Forced-air refrigeration
Exterior temperature-display area
Adjustable thermostat
Self-closing door design
Magnetic door gasket
Door-lock configuration associated with the model family
Three shelves in the standard legacy factory configuration
Commercial swivel casters
NSF Standard No. 7 marking
UL markings
Made in USA
Narrow commercial footprint
Suitable for refrigerated commercial-food storage
Certifications and Markings
The physical data plate displays:
NSF mark
UL-related listing marks
Commercial refrigeration listing information
“Listed Under NSF No. 7”
Made in USA identification
Final installation and use remain subject to applicable:
Health-department regulations
Electrical codes
Fire codes
Building codes
Food-storage regulations
Refrigeration-service requirements
Local authority approval
Suitable Applications
Restaurants
Commercial kitchens
Cafés
Coffee shops
Bakeries
Pizzerias
Sandwich shops
Delicatessens
Bars
Hotel kitchens
Catering kitchens
Banquet facilities
Food trucks with suitable space and electrical service
Concession operations
School kitchens
University kitchens
Hospital foodservice departments
Senior-living kitchens
Corporate cafeterias
Church kitchens
Community centers
Convenience stores
Small grocery stores
Food-preparation facilities
Commissary kitchens
Event venues
Institutional kitchens
Final suitability depends on required food temperature, ambient conditions, electrical service, local health codes, interior condition, shelving, and the results of a final temperature test.
Not Suitable For
Frozen-food storage
Ice-cream storage
Outdoor installation
Unconditioned exterior areas
Residential electrical circuits that cannot support commercial equipment
Medical or vaccine storage without application-specific validation
Laboratory storage
Explosive or flammable materials
Corrosive chemicals
Operation through an extension cord
Operation without proper grounding
Use as a blast chiller
Rapid cooling of large quantities of hot food
Manufacturing Information
Brand: True
Manufacturer: True Manufacturing Co., Inc.
Model: T-19
Cabinet Serial Number: 7310292
Refrigeration Unit Identification: AEA4440YXA
Manufacturing Location: O’Fallon, Missouri, USA
Country of Manufacture: USA
Exact Manufacturing Date: Not Confirmed
The manufacturing date should not be estimated from the serial number without confirmation through True Manufacturing’s serial-number database or technical-support department.
Included
One True T-19 commercial reach-in refrigerator
One one-section upright cabinet
One full-height solid stainless steel door
One black vertical pull handle
Installed hinges
Installed door gasket remaining with the unit
Installed upper identification and control area
Installed exterior temperature-display components remaining with the unit
Installed bottom-mounted refrigeration system
Installed R134a refrigeration components
Installed compressor
Installed condenser
Installed condenser fan
Installed evaporator
Installed evaporator fan
Installed thermostat components remaining with the unit
Installed condensate-management components remaining with the unit
Installed lower front ventilation assembly
Four installed swivel casters
Manufacturer data plate
True manufacturer badge
Chef’s Toys sticker
All permanently installed components shown in the supplied photographs
Unit sold exactly as pictured
Not Included
Food products
Beverages
Storage containers
Food pans
Sheet pans
Three factory shelves unless physically confirmed
Shelf clips unless physically confirmed
Additional shelves
Tray slides
Shelf dividers
Shelf liners
Replacement door gasket
Replacement door handle
Door-lock key
Replacement lock
Replacement temperature display
Replacement thermostat
Replacement interior light
Replacement casters
Caster shims
Optional legs
Seismic legs
Wall restraint
Floor anchors
External thermometer
Temperature-data logger
Remote-monitoring system
Alarm system
Extension cord
Power strip
Electrical adapter
Voltage transformer
Surge protector
Replacement power cord
Replacement compressor
Replacement fan motors
Refrigerant-service equipment
R134a refrigerant
Installation labor
Electrical repairs
Refrigeration repairs
Cleaning chemicals
Freight pallet
Shipping crate
Protective packaging
Lift-gate service
Manufacturer warranty
Accessories not shown in the supplied photographs
Installation Requirements
Installation should be completed or supervised by a qualified commercial-refrigeration technician and licensed electrician.
Keep the refrigerator upright during transport.
Avoid excessive tilting.
After positioning, allow the refrigerator to remain upright before connecting electrical power if it was tilted during transportation.
Place the refrigerator on a strong, level floor.
Level the cabinet front to back.
Level the cabinet side to side.
Inspect and secure all four casters.
Lock the front casters when brakes are present.
Confirm that the door closes and seals correctly.
Provide at least approximately one inch of rear clearance according to the legacy refrigerator manual.
Provide additional space where necessary for servicing, condenser airflow, cord routing, and cleaning.
Keep the lower front ventilation area unobstructed.
Do not position the refrigerator beside:
Fryers
Ranges
Ovens
Broilers
Griddles
Steam equipment
Dishwashers
Radiators
Direct sunlight
Other high-heat sources
Provide a dedicated grounded 115V circuit.
Verify incoming voltage with a voltmeter.
Do not use an extension cord.
Do not remove the grounding pin.
Inspect the power cord and plug before startup.
Confirm the drain hose is properly positioned in the condensate pan.
Clean the condenser before placing the refrigerator into commercial service.
Clean and sanitize the interior.
Verify the door gasket.
Verify the thermostat and exterior temperature display.
Run the refrigerator empty before loading.
Use a calibrated commercial thermometer to verify stable operation between approximately 33°F and 38°F.
Confirm that the compressor cycles correctly.
Confirm both condenser and evaporator fans operate properly.
Confirm that no abnormal vibration, electrical odor, oil residue, or refrigerant leak is present.
Leave adequate space around the interior evaporator cover.
Comply with all applicable electrical, refrigeration, fire, health, sanitation, and building requirements.
Cleaning & Care
Disconnect electrical power before cleaning or maintenance.
Remove all food products.
Remove shelving if present.
Wash shelves with warm water and suitable commercial detergent.
Clean the interior liner with a soft cloth or non-abrasive sponge.
Clean the stainless steel floor.
Clean the door gasket and sealing surfaces.
Remove food debris from interior corners.
Dry all interior surfaces.
Clean the stainless steel exterior in the direction of the grain.
Use a soft cloth.
Use a non-abrasive commercial stainless steel cleaner.
Remove cleaner residue.
Dry the exterior after cleaning.
Do not use steel wool.
Do not use wire brushes on stainless steel.
Do not use metal scrapers.
Do not use abrasive pads.
Do not use hydrochloric or muriatic acid.
Avoid chlorine-based cleaners on stainless steel.
Do not pressure-wash the cabinet.
Do not spray water into the control panel.
Do not spray water into the temperature display.
Do not spray the compressor compartment.
Do not immerse electrical components.
Inspect the condenser regularly.
Remove the lower grille carefully.
Brush or vacuum accumulated dirt, grease, lint, and dust from the condenser fins.
Do not bend the condenser fins.
Reinstall the protective grille after cleaning.
True’s legacy manual recommends scheduled condenser cleaning approximately every 30 days or as operating conditions require. Heavy kitchen grease may require more frequent service. True T-Series installation and maintenance manual: https://s1.img-b.com/build.com/mediabase/specifications/true/1304120/true-t-12-use-and-care.pdf
Use a qualified technician for:
Compressor repairs
Refrigerant recovery or charging
Leak repairs
Thermostat replacement
Temperature-display repairs
Fan-motor replacement
Starting-component repairs
Electrical wiring repairs
Door-hinge repairs
Drain-system repairs
Sealed-system service
Important Notes
Used commercial reach-in refrigerator
Fully tested and operational before listing
Exact model is True T-19
This is not the current T-19-HC model
Physical data plate confirms 115V
Physical data plate confirms 60Hz
Physical data plate confirms single-phase operation
Physical data plate confirms 8.9A
Physical data plate confirms 1/3 HP
Physical data plate confirms R134a refrigerant
Physical data plate confirms 10-ounce / 283-gram charge
Physical data plate confirms 312-PSIG high-side design pressure
Physical data plate confirms 140-PSIG low-side design pressure
Physical data plate confirms serial number 7310292
Physical data plate identifies refrigeration unit AEA4440YXA
Physical data plate states Made in USA
NSF and UL-related markings are visible
Nominal capacity class is 19 cubic feet
Published legacy temperature range is approximately 33–38°F
One solid door
Right-hinged configuration as photographed
Handle positioned on the left
Bottom-mounted refrigeration system
Four casters visible
Interior not shown
Shelves not confirmed
Factory configuration originally published with three shelves
Door-gasket condition must be inspected
Self-closing operation must be verified
Lock and key availability must be verified
Exterior temperature display must be tested
Interior light must be tested
Complete power cord and plug are not shown
Manufacturing date not confirmed
Visible scratches, stains, scuffs, discoloration, and sticker residue
No manufacturer warranty included
Sold as-is, where-is
Shipping calculated at checkout
Freight or local pickup recommended
Local pickup available
https://oasis-restaurant-equipment.myshopify.com/products/dependable-condition-true-t-19-27-one-section-solid-door-reach-in-refrigerator-19-cu-ft-115v-r134a-fully-tested-operational
