Condition
Used – High-Quality Condition – Fully Tested & Operational
This commercial merchandiser cooler has been professionally inspected and tested to confirm proper cooling and basic operation before listing.
The cabinet remains structurally intact with visible scratches, dust, residue, marks, and normal cosmetic wear consistent with previous commercial use and warehouse storage.

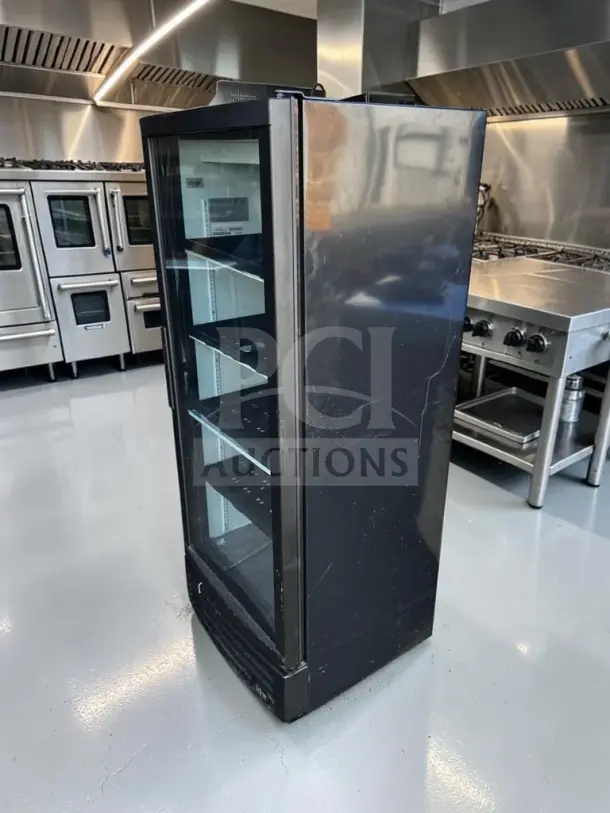

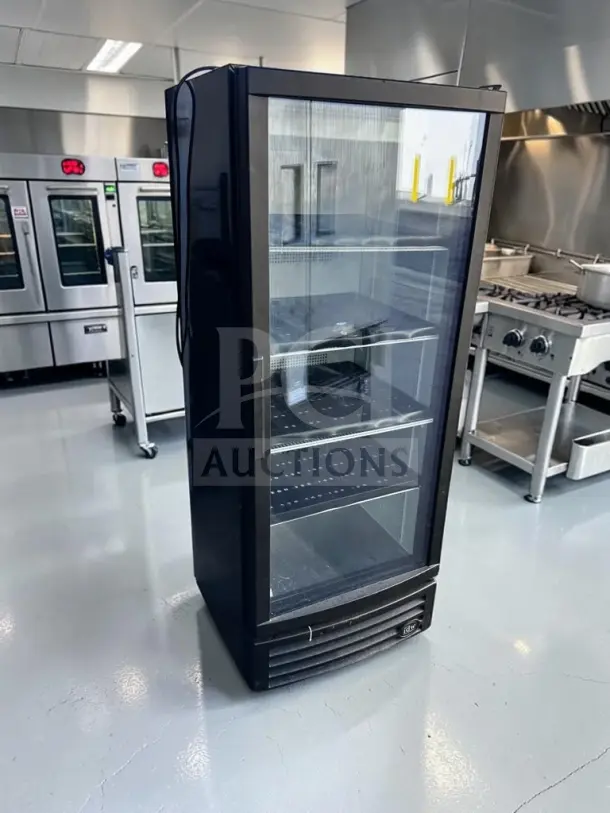

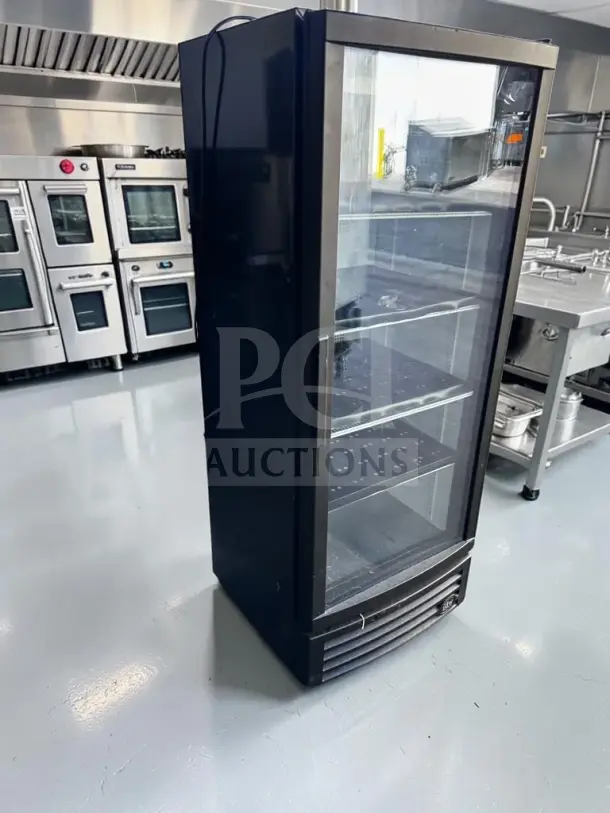

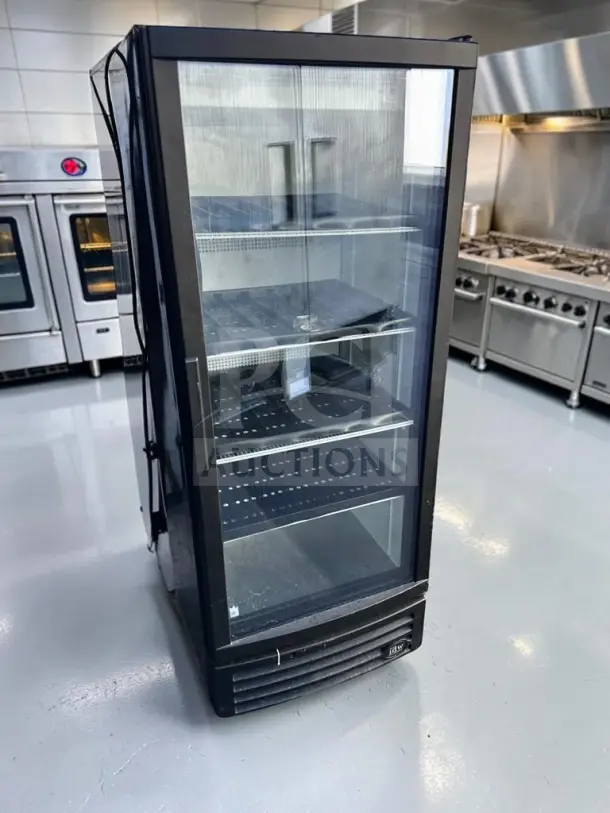

The black exterior cabinet, full-height transparent glass door, vertical handle, front ventilation grille, adjustable interior shelving, manufacturer identification plate, and power cord are present in the supplied photographs.
The photographs appear to show:
Three removable adjustable wire shelves
One lower perforated display deck
One full-height glass door
One vertical door handle
Black exterior cabinet
White interior liner
Bottom-mounted refrigeration system
Front ventilation grille
Interior LED components associated with this model
The manufacturer’s current product information identifies four adjustable shelves as the standard factory configuration. However, only three removable shelves are clearly visible in the supplied photograph. A fourth shelf, additional shelf clips, and replacement shelving should not be assumed included unless physically confirmed at pickup.
The door glass appears intact in the supplied photograph. The door gasket, self-closing function, thermostat calibration, LED lighting, drain pan, condenser, evaporator fan, compressor compartment, and complete electrical cord must be inspected during final pickup verification.
Please review all supplied photographs for the exact cosmetic condition.
Model Identification

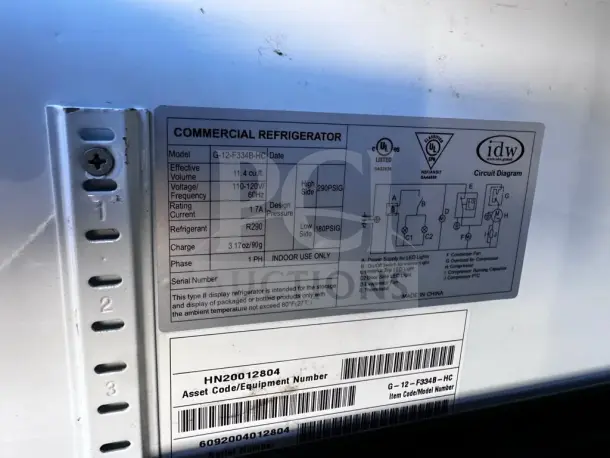

The physical manufacturer data plate confirms:
Brand: IDW
Manufacturer: Innovative DisplayWorks, Inc.
Exact Model: G-12-F334B-HC
Product Type: Commercial Vertical Transparent-Door Bottle Cooler
Cabinet Configuration: Upright
Number of Doors: 1
Door Type: Transparent Hinged Glass Door
Effective Volume: 11.4 Cu. Ft.
Voltage: 110–120V
Frequency: 60Hz
Rated Current: 1.7A
Phase: Single Phase
Refrigerant: R290
Refrigerant Charge: 3.17 oz / 90 g
High-Side Design Pressure: 290 PSIG
Low-Side Design Pressure: 180 PSIG
Installation: Indoor Use Only
Country of Manufacture: China

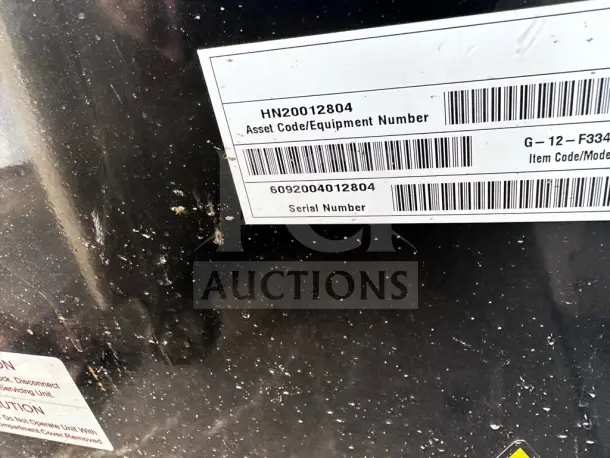

Asset Code / Equipment Number: HN20012804
Additional Barcode Number: 6092004012804
Manufacturer Serial Number: Not Confirmed – Manufacturer Data-Plate Serial Field Appears Blank
The white barcode label displays number 6092004012804 as a serial-style equipment identifier. Because the manufacturer’s own serial-number field appears blank, this number should be treated as an asset or equipment-management identifier unless IDW confirms otherwise.
Description
The IDW G-12-F334B-HC is a narrow, upright commercial display cooler designed for merchandising packaged and bottled beverages in restaurants, cafés, convenience stores, hotel markets, concession areas, offices, retail counters, and other controlled indoor environments.
Its full-height transparent door allows customers and employees to view the available products without opening the cooler. The narrow 25-inch-wide cabinet provides useful refrigerated display capacity while requiring substantially less floor width than many full-size commercial reach-in refrigerators.
A forced-air refrigeration system circulates chilled air throughout the cabinet to support product-temperature recovery and more consistent cooling. Adjustable metal shelves allow the interior to be configured for different bottle and can heights.
The model uses R290 hydrocarbon refrigerant, LED lighting, insulated cabinet construction, and a double-pane low-emissivity glass door. It is also listed in the EPA database as an ENERGY STAR-certified vertical transparent-door refrigerator.
IDW’s current product page publishes an 11.4-cubic-foot capacity, adjustable merchandising shelves, can and bottle pack-out information, and internal and external dimensions. Official IDW G-12 product page: https://idw.global/blog/products/commercial-coolers/g-12-upright-cooler/
Intended Product Use
The manufacturer classifies this equipment as an:
NSF/ANSI 7 Type II Display Refrigerator
IDW states that the cooler is intended to maintain an operating range of approximately:
34°F to 44°F
The manufacturer’s manual identifies the intended contents as:
Non-potentially hazardous packaged, bottled, or canned products
Appropriate products may include:
Bottled water
Canned soft drinks
Bottled soft drinks
Energy drinks
Sports drinks
Shelf-stable canned beverages
Shelf-stable bottled beverages
Packaged juice products approved for this temperature range
Other sealed, non-potentially hazardous products permitted by the manufacturer and local health authorities
This unit should not automatically be treated as a general-purpose food refrigerator.
It should not be relied upon for raw meat, seafood, poultry, dairy products, prepared foods, deli foods, medical products, vaccines, laboratory materials, frozen products, or other temperature-critical contents unless the manufacturer and applicable authority specifically approve that application.
The manufacturer’s operating and installation limitations are published in the official IDW G-Series R290 instruction manual: https://idw.global/wp-content/uploads/2024/07/IDW_G-GCG9G-GCG9fG-GCG9.5G-GCG10fG_GCG11-54G_GCG11-74G-GCG12fG-GCG28_Combo_manual-R290_110V.pdf.
Temperature Performance
Manufacturer-Published Intended Range: Approximately 34–44°F
Thermostat: Adjustable Mechanical Temperature Control
Published Performance-Tested Thermostat Position: Approximately 4–6
Ambient Temperature Limit: 80°F / 27°C Maximum
Published Relative-Humidity Limit: Less Than 65% RH
Indoor Operation: Required
The thermostat must be adjusted gradually and verified with an independent commercial refrigerator thermometer.
Actual cabinet temperature depends on:
Ambient room temperature
Relative humidity
Door-opening frequency
Initial product temperature
Shelf arrangement
Product loading
Airflow around the evaporator
Condenser cleanliness
Door-gasket condition
Thermostat calibration
Ventilation behind the cabinet
Electrical voltage
Compressor and fan condition
The unit should be operated empty for at least 30 minutes before stocking. Product temperatures should be confirmed before the cooler is placed into commercial service.
Do not block the interior evaporator-fan cover with bottles, cans, cartons, shelf liners, signs, or other merchandise.
ENERGY STAR Efficiency
The EPA ENERGY STAR registry confirms that exact model G-12-F334B-HC is certified as a vertical transparent-door bottle cooler.
ENERGY STAR Certified: Yes
Reported Daily Energy Consumption: 1.5 kWh per Day
Calculated Annual Consumption: Approximately 547.5 kWh per Year
ENERGY STAR Unique ID: 2403015
Date Available on Market: October 10, 2022
Certified Markets: United States and Canada
Refrigerant Listed by ENERGY STAR: R290
The calculated annual consumption is based on the reported 1.5-kWh daily figure multiplied by 365 days. Actual consumption will vary with use, loading, ambient conditions, maintenance, thermostat setting, and electricity quality.
The exact model certification and reported efficiency information can be verified through the EPA ENERGY STAR product listing: https://www.energystar.gov/productfinder/product/certified-commercial-refrigerators-and-freezers/details/2403015.
Refrigeration System
Forced-air refrigeration system
Bottom-mounted condensing system
Commercial compressor
Condenser coil
Condenser fan
Evaporator coil
Evaporator fan
Thermostatic temperature control
Automatic air circulation
Interior air-channel system
Drain pan
Filter drier
Refrigeration tubing
Compressor overload protection
Compressor starting components
Front lower ventilation grille
Natural R290 hydrocarbon refrigerant
Approximately 90-gram refrigerant charge
The forced-air system is designed to support quicker product-temperature pull-down and more uniform cabinet circulation than a passive cold-wall system.
This merchandiser is designed primarily to maintain already chilled products. It should not be overloaded with large quantities of warm beverages requiring rapid simultaneous pull-down.
R290 Refrigerant
Refrigerant Type: R290 Hydrocarbon
Charge: 3.17 oz / 90 g
High-Side Design Pressure: 290 PSIG
Low-Side Design Pressure: 180 PSIG
R290 is a climate-friendly natural refrigerant with low global-warming potential, but it is flammable.
The refrigeration tubing must never be punctured, drilled, cut, crushed, heated, or modified.
Only trained refrigeration technicians qualified to service hydrocarbon-refrigerant equipment should diagnose, evacuate, charge, braze, or repair the sealed refrigeration system.
Do not use an open flame, torch, spark-producing tool, or unapproved electrical component near a suspected refrigerant leak.
Replacement refrigeration and electrical components must be approved for the model and application.
Door System
One full-height transparent glass door
Hinged opening configuration
Double-pane glass construction according to published specifications
Low-emissivity glass
Self-closing door design
Vertical pull handle
Magnetic door gasket
Door-activated electrical components
LED lighting associated with the door system
Reversible-door capability published for the G-12F model
The photographed unit is currently configured with the handle on the left side and hinges on the right side.
Door reversal requires proper disassembly and repositioning of the hinges, self-closing components, door wiring, LED connections, and associated hardware. It should be completed only by a qualified equipment technician following the manufacturer’s procedure.
The door must close freely without rubbing the cabinet, dragging on the lower hinge, or leaving a gasket gap.
Lighting
LED interior lighting
Door-side LED lighting associated with this model series
Top interior LED lighting
Dedicated light-switch function
Low-energy lighting design
Published Lamp Input for This Model Group: Approximately 5.5W
The physical lighting system should be tested during inspection.
Because the data plate’s wiring diagram shows multiple LED-light circuits, replacement lighting must match the correct voltage, connector, driver, and manufacturer configuration.
Shelving
Published Standard Shelf Type: Adjustable Powder-Coated Metal Shelves
Manufacturer-Published Standard Quantity: 4 Shelves

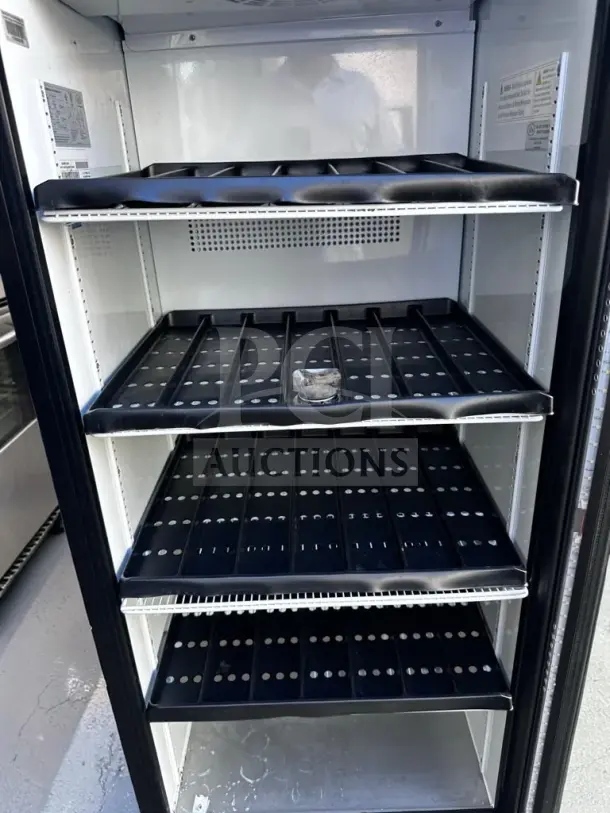

Shelves Clearly Visible in Supplied Photograph: 3
Lower Display Deck: Present
Current Published Shelf Dimensions: Approximately 20.25 in Wide x 16.875 in Deep
Maximum Published Shelf Load for G-10F/G-12F Models: 66 lb per Shelf
Shelf clips must be installed at equal heights on all four pilasters so every shelf remains level.
Product weight must be distributed evenly.
Do not exceed the shelf-load rating.
Do not place heavy glass containers at the unsupported front edge.
Do not use cardboard, plastic liners, foil, or other solid materials that obstruct vertical airflow.
Additional or replacement shelves, shelf clips, and price-tag strips are not included unless physically provided with the unit.
Published Beverage Capacity
IDW publishes the following maximum pack-out capacities for the current G-12 configuration:
12 oz Cans: Up to 384
16 oz Cans: Up to 288
20 oz PET Bottles: Up to 210
Facings per Shelf:
12 oz cans – approximately 8
16 oz cans – approximately 8
20 oz PET bottles – approximately 7
Published maximum capacities are approximate merchandising figures. They may require additional shelves beyond those included with the photographed cooler.
Actual capacity depends on:
Number of shelves installed
Shelf spacing
Container diameter
Container height
Bottle shape
Label orientation
Required air gaps
Evaporator clearance
Product weight
Local merchandising practices
Because only three removable shelves are clearly shown, the photographed unit’s current usable pack-out will likely be lower than the manufacturer’s maximum figures.
Electrical Specifications
Power Type: Electric
Voltage: 110–120V
Phase: Single Phase
Frequency: 60Hz
Rated Current: 1.7A
Connection: Factory Power Cord
Published Cord Length for G-12 Series: Approximately 9 ft
Grounding: Required
Dedicated Grounded Outlet: Required
Extension Cord: Prohibited
The cooler must be connected directly to a properly grounded receptacle providing the voltage shown on the physical data plate.
The grounding pin must never be removed.
Do not connect the cooler through:
An extension cord
A power strip
A multi-outlet adapter
An ungrounded receptacle
A light-duty timer
An undersized circuit
A damaged wall outlet
A voltage converter
A shared outlet with high-draw cooking equipment
The complete cord and plug end are not shown and must be inspected for cuts, abrasion, heat damage, missing grounding pin, loose terminals, or unauthorized repairs.
After disconnecting the cooler, wait at least five minutes before reconnecting power to help protect the compressor and refrigeration system.
Dimensions
The exact-model ENERGY STAR listing publishes:
Width: 25 in
Depth: 24.29 in
Height: 63.94 in
IDW’s current general G-12 product page publishes:
Width: 25 in
Depth: 24.5 in
Height: 63.25 in
Current Published Interior Dimensions: Approximately 21.5 in Wide x 17.75 in Deep x 50.25 in High
Published Shelf Dimensions: Approximately 20.25 in Wide x 16.875 in Deep
Older IDW literature lists slightly different depth, height, internal dimensions, and weight figures. These differences may reflect cabinet revisions, production dates, door hardware, leveling adjustments, or measurement methods.
For the Shopify numeric dimension metafields, the exact-model ENERGY STAR dimensions are used:
25 x 24.29 x 63.94
The physical unit should be measured before installation in an existing opening.
Allow additional space for:
Rear ventilation
Door swing
Door handle
Electrical plug and cord
Service access
Condenser cleaning
Uneven walls
Floor leveling
Removal and replacement
Weight
Current IDW Published Net Weight: Approximately 209 lb
Older IDW Published Net Weight: Approximately 193 lb
Older Published Gross Shipping Weight: Approximately 226 lb
The exact used-unit weight should be confirmed before freight preparation.
The published weight does not include:
Pallet
Freight packaging
Protective wrap
Additional shelves
Merchandise
Caster kit
Moving equipment
Use a properly rated appliance dolly, pallet jack, lift gate, or forklift.
Do not move or lift the cooler by the glass door, handle, grille, power cord, thermostat components, or refrigeration tubing.
Construction
Durable pre-painted steel exterior cabinet
Heavy-duty interior liner
High-density insulated cabinet
Full-height glass merchandising door
Double-pane low-emissivity glass
Magnetic door gasket
Self-closing door mechanism
Reversible-door design capability
Vertical metal handle
Adjustable metal shelving
Shelf pilasters
Shelf clips
Lower product deck
Low-profile evaporator arrangement
Forced-air refrigeration system
Bottom-mounted condensing system
Front ventilation grille
Condenser fan
Evaporator fan
Commercial compressor
Drain pan
LED interior lighting
Door-side LED-light components
Thermostatic temperature control
Grounded commercial power cord
Adjustable leveling components
Key Features
Exact IDW G-12-F334B-HC model
11.4-cubic-foot capacity
Single transparent glass door
Narrow 25-inch-wide cabinet
Full-height product visibility
ENERGY STAR certified
Approximately 1.5-kWh daily reported energy consumption
R290 natural refrigerant
Low 90-gram refrigerant charge
110–120V operation
Single-phase configuration
Low 1.7-amp data-plate rating
Forced-air refrigeration
34–44°F intended operating range
Adjustable thermostat
LED interior lighting
LED door-light system
Double-pane low-emissivity glass
Self-closing door design
Reversible-door capability
Adjustable powder-coated shelving
Three shelves clearly shown
Lower merchandising deck
66-pound published maximum load per shelf
High-density insulation
Bottom-mounted refrigeration
Front ventilation access
Indoor commercial design
UL 471 listing published
NSF/ANSI 7 Type II classification
ENERGY STAR certification
Plain black cabinet suitable for multiple business types
Controls
Mechanical temperature control
Interior-light control
Door magnetic switch
Door LED-light circuit
Evaporator-fan circuit
Condenser-fan circuit
Compressor starting and overload components
The thermostat is factory configured for commercial merchandiser performance. Make small adjustments and allow sufficient stabilization time before making another change.
Setting the temperature control to zero does not necessarily disconnect every electrical component. The unit must be unplugged before cleaning or service.
Certifications
The physical data plate and published manufacturer information identify applicable:
UL Listed
UL 471 Commercial Refrigerator
NSF/ANSI 7 Type II Display Refrigerator
ENERGY STAR Certified
The physical certification markings should remain attached and readable.
The exact ENERGY STAR listing confirms model G-12-F334B-HC, one transparent hinged door, 11.4-cubic-foot volume, R290 refrigerant, and 1.5-kWh reported daily consumption.
Final acceptance remains subject to the local health department, electrical inspector, fire authority, building department, and other authorities having jurisdiction.
Suitable Applications
Convenience stores
Gas-station markets
Restaurants
Cafés
Coffee shops
Bakeries
Dessert shops
Sandwich shops
Pizzerias
Quick-service restaurants
Hotel markets
Hotel lobbies
Office break rooms
Employee beverage stations
Reception areas
Retail stores
Grab-and-go counters
Concession stands
Sports facilities
Gym refreshment areas
School concession areas where permitted
University markets
Hospital gift shops where permitted
Corporate cafeterias
Catering support areas
Event venues
Movie-theater concession areas
Food courts
Small grocery stores
Specialty beverage stores
Indoor kiosks with appropriate utilities
Final suitability depends on the products being stored, local health-code requirements, room temperature, humidity, electrical service, ventilation, and required storage temperature.
Manufacturing Information
Brand: IDW
Manufacturer: Innovative DisplayWorks, Inc.
Exact Model: G-12-F334B-HC
Product Family: G-12 / G-12F Upright Cooler
Product Classification: Commercial Bottle Cooler / Transparent-Door Display Refrigerator
Country of Manufacture: China
Date Available on ENERGY STAR Registry: October 10, 2022
Exact Manufacturing Date: Not Confirmed
Manufacturer Serial Number: Not Confirmed
Asset Code: HN20012804
Additional Equipment Barcode: 6092004012804
Do not estimate the unit’s manufacturing date from the asset code or barcode without confirmation from IDW or the original equipment owner.
Included
One IDW G-12-F334B-HC commercial merchandiser cooler
One black exterior cabinet
One full-height transparent glass door
One vertical door handle
Installed door gasket
Installed hinge system
Installed self-closing components remaining with the unit
Three removable metal shelves clearly visible
Installed shelf pilasters
Installed shelf clips currently supporting the visible shelves
One lower perforated product deck
Installed refrigeration system
Installed R290 compressor system
Installed evaporator
Installed evaporator fan
Installed condenser
Installed condenser fan
Installed thermostat
Installed LED-lighting components remaining with the unit
Installed lower front ventilation grille
Installed drain pan and drain components remaining with the unit
Installed power cord
Manufacturer identification plate
Asset and barcode label
All permanently installed components shown in the supplied photographs
Unit sold exactly as pictured
Not Included
Bottled beverages
Canned beverages
Food products
Merchandising labels
Price tags
Branded side-panel graphics
Fourth shelf unless separately located and confirmed
Additional shelves
Additional shelf clips
Shelf dividers
Gravity-feed organizers
Bottle slides
Can organizers
Interior product pushers
Replacement door gasket
Replacement LED components
Door-lock key
Replacement door lock
Caster kit
Floor anchors
Wall restraints
Extension cord
Power strip
Voltage transformer
Surge protector
Separate thermometer
Temperature-data logger
Remote monitoring system
Alarm system
Replacement thermostat
Replacement compressor
Refrigerant-service equipment
Freight pallet
Shipping crate
Protective packaging
Installation labor
Electrical repairs
Refrigeration repairs
Cleaning chemicals
Manufacturer warranty
Accessories not shown in the supplied photographs
Installation Requirements
Installation and startup should be completed or supervised by qualified commercial-refrigeration personnel.
Keep the cooler upright during transport.
Do not tilt the cabinet beyond approximately 45 degrees.
After positioning, leave the cooler upright and unplugged for at least one hour before startup.
Place the cooler on a hard, level surface such as concrete or commercial vinyl flooring.
Level the cabinet from front to back and side to side.
Confirm that the door closes and seals correctly.
Provide at least four inches of rear clearance for ventilation and heat dissipation.
Keep the front lower grille unobstructed.
Do not install the cooler in direct sunlight.
Do not position it beside an oven, fryer, range, griddle, broiler, radiator, steam table, dishmachine, or other heat source.
Do not install it near constant splashing or running water.
Do not install it outdoors.
Do not use it in an uncontrolled room exceeding 80°F.
Avoid high-humidity environments.
Provide a dedicated grounded 110–120V outlet.
Do not use an extension cord or multi-outlet connector.
Inspect the complete power cord and grounding pin.
Confirm that the drain hose is positioned correctly in the drain pan.
Clean and dry the interior before loading.
Operate the cooler empty for at least 30 minutes.
Verify cabinet temperature with a calibrated thermometer.
Stock only products appropriate for the cooler’s classification.
Leave sufficient space around the evaporator-fan cover.
Do not exceed shelf-load limits.
Comply with all applicable electrical, fire, refrigeration, sanitation, health, and building requirements.
Cleaning & Care
Disconnect electrical power before cleaning.
Remove all products.
Remove the adjustable shelves.
Wash shelves using warm water and mild non-corrosive detergent.
Use a soft cloth or non-abrasive sponge.
Clean the interior liner carefully.
Wipe the door gasket and sealing surfaces.
Clean the glass using a suitable non-abrasive glass cleaner applied to a cloth.
Do not spray cleaner directly into electrical switches, LED components, hinges, or ventilation openings.
Clean the black exterior using mild detergent and a soft cloth.
Dry every surface after cleaning.
Clean the condenser coil regularly using a soft-bristle brush or vacuum.
Keep the front grille free from dust, grease, paper, and packaging debris.
Inspect the drain pan.
Confirm the drain hose remains correctly positioned.
Do not spray the cooler with a hose.
Do not use a pressure washer.
Do not use steel wool.
Do not use wire brushes.
Do not use metal scrapers.
Do not use boiling water.
Do not use acidic cleaners.
Do not use flammable cleaning liquids.
Do not use organic solvents.
Do not use abrasive powders.
Do not puncture the refrigeration tubing.
Do not bend the evaporator or condenser fins.
Use a qualified technician for compressor, refrigerant, thermostat, fan, LED-driver, wiring, door-switch, or sealed-system repairs.
Important Notes
Used commercial merchandiser cooler
Fully tested and operational before listing
Exact model is G-12-F334B-HC
Physical data plate confirms 11.4-cubic-foot capacity
Physical data plate confirms 110–120V
Physical data plate confirms 60Hz
Physical data plate confirms single-phase operation
Physical data plate confirms 1.7A
Physical data plate confirms R290 refrigerant
Physical data plate confirms 90-gram refrigerant charge
Physical data plate confirms 290-PSIG high-side design pressure
Physical data plate confirms 180-PSIG low-side design pressure
Physical data plate states indoor use only
Physical data plate states ambient temperature must not exceed 80°F
Physical data plate states made in China
ENERGY STAR certified
Reported energy consumption is 1.5 kWh per day
Intended operating range is approximately 34–44°F
Designed for packaged, bottled, and canned non-potentially hazardous products
Not automatically approved for temperature-critical food
Single transparent hinged door
Door is currently right-hinged with handle on the left
Reversible-door capability is published for the G-12F model
Forced-air refrigeration system
LED lighting system
Double-pane low-emissivity door published
Self-closing door design published
Three removable shelves clearly visible
Manufacturer normally publishes four adjustable shelves
Fourth shelf is not guaranteed included
Published 66-pound maximum load per shelf
R290 is flammable
Hydrocarbon-qualified service personnel required
Minimum four-inch rear ventilation clearance
Dedicated grounded electrical outlet required
Extension cords prohibited
Manufacturing date not confirmed
Manufacturer serial number not confirmed
Asset code is HN20012804
Additional barcode number is 6092004012804
Visible cosmetic wear from prior use and storage
No products or merchandising accessories included
No manufacturer warranty included
Sold as-is, where-is
Shipping calculated at checkout
Freight or local pickup recommended
Local pickup available
https://oasis-restaurant-equipment.myshopify.com/products/high-quality-condition-idw-g-12-f334b-hc-25-single-glass-door-merchandiser-cooler-11-4-cu-ft-energy-star-115v-fully-tested-operational
