Condition
Used – Dependable Condition – Fully Tested & Operational
This unit has been professionally inspected and tested to confirm proper operation. The heavy-duty metal enclosure is structurally sound, with light surface dust, scratches, scuffs, and cosmetic signs consistent with previous commercial network installation.

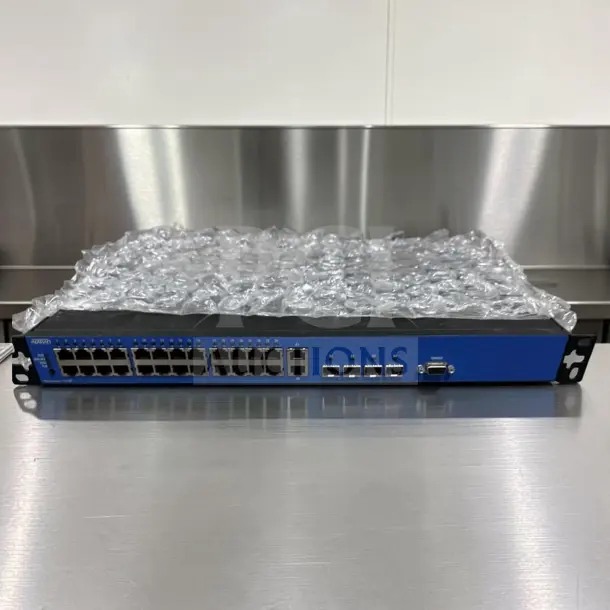

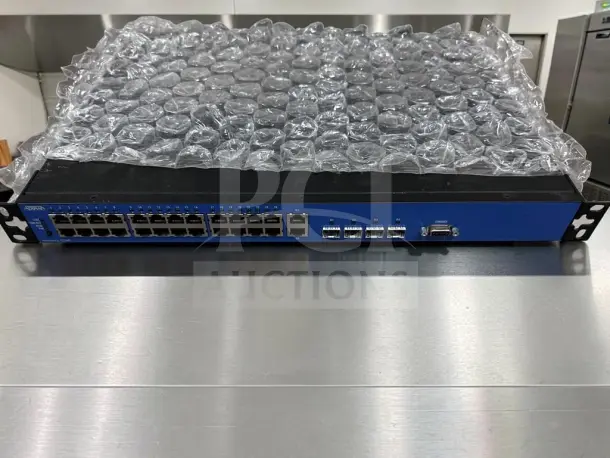

The visible Ethernet ports, indicator lights, front controls, and rack-mounting ear appear complete and ready for continued commercial network service. Please review all supplied photos for the exact cosmetic condition.
Description
The ADTRAN NetVanta 1234P 3rd Gen is a fully managed, Layer 3 Lite commercial network switch designed for secure and dependable Ethernet connectivity in offices, restaurants, hotels, schools, telecommunications installations, surveillance systems, and professional VoIP networks.
The switch provides twenty-four auto-sensing 10/100Base-T Fast Ethernet access ports with Power over Ethernet. It can supply power and network connectivity to compatible IP telephones, wireless access points, security cameras, and other IEEE 802.3af devices.
Four high-speed uplink connections support faster communication between switches, servers, routers, and network backbones. Advanced management features include VLANs, static routing, Quality of Service, link aggregation, spanning tree, port authentication, traffic monitoring, and web-based or command-line configuration.
The exact 1703595G1 configuration is identified as a 24-port managed Layer 3 Lite Fast Ethernet switch with quad uplinks and IEEE 802.3af/legacy PoE support. ADTRAN catalog reference: https://www.adtran.com/-/media/adtran/resources/feature/state-of-alabama/aljp-2016-price-list.xlsx?hash=FB4543005B8AFD33DCABC69EBBE472B7&rev=-1
Network Specifications
Access Ports: 24 RJ45 Ethernet Ports
Access-Port Speed: 10/100 Mbps Fast Ethernet
Port Configuration: Auto Rate, Auto Duplex and Auto MDI/MDI-X
Power over Ethernet: Supported on 24 Access Ports
PoE Standard: IEEE 802.3af and Legacy PoE
Maximum PoE Output: Up to 15.4 Watts per Port
Uplink Ports: Four High-Speed Uplink Connections
Enhanced Uplinks: 2 × 2.5 Gbps SFP Ports
Additional Uplinks: 2 × Gigabit Copper/SFP Combo Ports
Switching Architecture: Non-Blocking
Switching Capacity: Up to 18.8 Gbps
MAC Address Table: Up to 8,000 Entries
Management Type: Fully Managed
Layer Support: Layer 2 and Layer 3 Lite
Static Routing: Up to 16 Static Routes
VLAN Support: Up to 255 Active VLANs
VLAN Standards: IEEE 802.1Q Tagged and Port-Based VLANs
Quality of Service: IEEE 802.1p and DiffServ
Priority Queues: Four Output Queues per Egress Port
Link Aggregation: IEEE 802.3ad
Trunk Groups: Up to Six
Spanning Tree: IEEE 802.1D
Rapid Spanning Tree: IEEE 802.1w
Network Authentication: IEEE 802.1X
Management Interfaces: Web-Based GUI and Command-Line Interface
Remote Monitoring: SNMP v3 and SYSLOG
Console Connection: DB-9 RS-232
Diagnostics: Port Mirroring, Ping and Cable Diagnostics
The port configuration, PoE support, VLAN capabilities, management functions, dimensions, and environmental specifications are documented in the NetVanta 1234P technical data sheet: https://cdn-docs.av-iq.com/dataSheet/2.5%20Gigabit%20SFP%20Module_PDF.pdf.
Electrical Specifications
Voltage: 110–240V AC
Phase: Single Phase
Frequency: 50/60 Hz
Maximum Input Rating: 5.0 Amps
Maximum Power Rating: 500 Watts
Power Supply: Internal Auto-Ranging Power Supply
Power Type: Electric
Construction
Heavy-duty commercial metal enclosure
Standard 19-inch rack-mountable design
Compact 1U chassis
Integrated internal power supply
Front-mounted RJ45 Ethernet connections
SFP and copper uplink connections

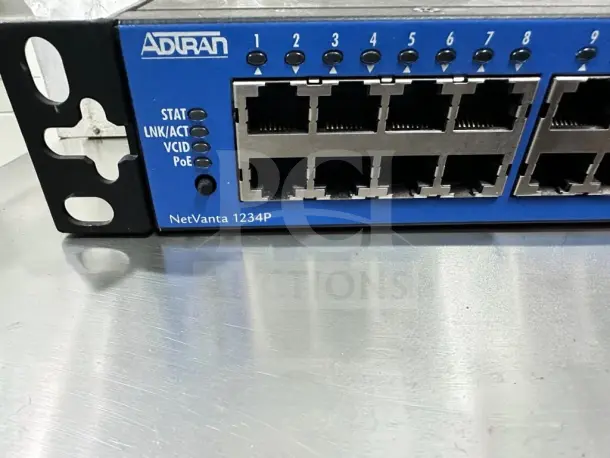

Front-panel status indicator lights
Individual link, activity, VCID, and PoE indicators
Integrated cooling system
Attached rack-mounting ear shown in photos
Designed for continuous commercial network operation
Key Features
Twenty-four managed 10/100Base-T Ethernet access ports
Power over Ethernet on all twenty-four access ports
IEEE 802.3af and legacy PoE compatibility
Up to 15.4 watts of PoE power per access port
Four high-speed network uplink connections
Two enhanced 2.5 Gbps SFP uplinks
Two Gigabit copper/SFP combo uplinks
Up to 18.8 Gbps switching capacity
Layer 2 and Layer 3 Lite management
Support for up to sixteen static routes
Support for up to 255 active VLANs
IEEE 802.1Q tagged VLAN support
Quality-of-Service traffic prioritization
Link aggregation and trunking support
Spanning Tree and Rapid Spanning Tree support
IEEE 802.1X port authentication
Broadcast, unicast, and multicast storm control
Port mirroring and cable diagnostics
Web-based graphical management interface
Command-line management interface
SNMP v3 remote management
Suitable for VoIP telephone systems
Suitable for compatible PoE security cameras
Suitable for wireless access-point networks
Designed for offices, restaurants, hotels, schools, and commercial facilities

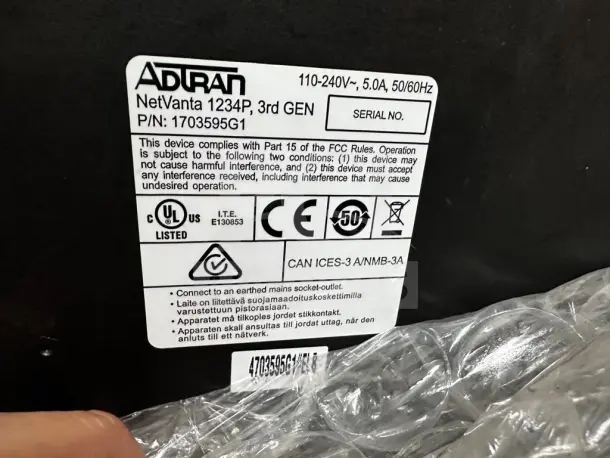

Certifications
UL Listed Information Technology Equipment
cUL Listed
CE Marked
FCC Part 15 Class A
CAN ICES-3(A)/NMB-3(A)
RCM Compliant
China RoHS Marked
WEEE Compliant
Manufacturing Information
Manufacturer: ADTRAN, Inc.
Manufacturer Location: Huntsville, Alabama, USA
Model: NetVanta 1234P
Generation: 3rd Generation
Manufacturer Part Number: 1703595G1
Product Family: NetVanta 1200 Series
Product Type: Managed Layer 3 Lite PoE Fast Ethernet Switch
Serial Number: Not Clearly Legible in Supplied Photos
Country of Manufacture: Not Identified from Supplied Photos
Product Status: Discontinued Legacy Model
Included
One ADTRAN NetVanta 1234P 3rd Gen Managed PoE Switch
Attached rack-mounting ear shown in photos
Unit sold exactly as shown in the supplied photos
Important Notes
Sold as-is, where-is
Fully tested and working prior to listing
This is a legacy Fast Ethernet switch
The twenty-four primary access ports operate at 10/100 Mbps
Gigabit and 2.5 Gbps speeds are available through the designated uplink ports
SFP transceiver modules are not included unless shown
Ethernet cables are not included
Console cable is not included unless shown
Power cord is not included unless shown or specifically stated
Additional rack-mounting hardware is not included unless shown
Factory reset and network reconfiguration may be required before installation
PoE-device compatibility should be confirmed before installation
No manufacturer warranty included
Shipping calculated at checkout
Local pickup available
