Condition
Used – High-Grade Condition – Fully Tested & Operational
This unit has been professionally inspected and tested to confirm proper operation. The metal enclosure is clean and structurally sound, with light scratches, scuffs, and cosmetic signs consistent with prior commercial use.

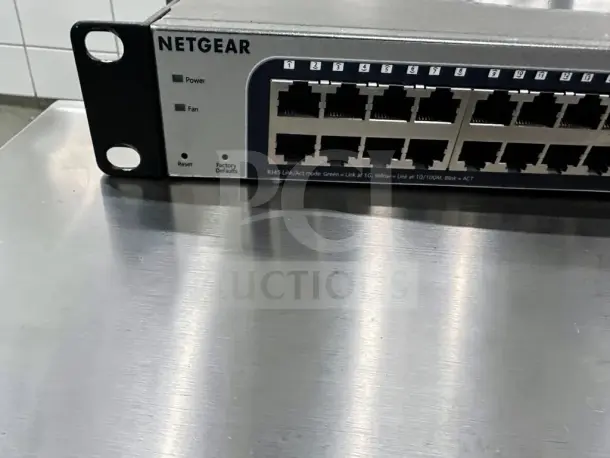

The front Ethernet ports, SFP ports, indicator lights, and controls appear complete and ready for continued commercial network service.
Description

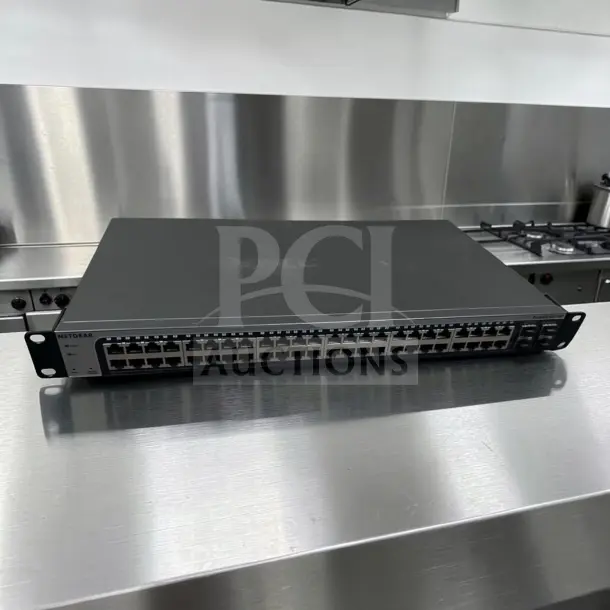

The NETGEAR ProSAFE GS748Tv5 is a commercial-grade 48-port Gigabit Ethernet smart managed switch designed to provide reliable network connectivity for businesses, restaurants, hotels, offices, schools, surveillance installations, and other professional environments.
The unit provides forty-eight auto-sensing 10/100/1000 Mbps RJ45 Ethernet ports, two dedicated Gigabit SFP ports, and two additional copper/SFP combo ports. Its non-blocking architecture supports up to 100 Gbps of switching capacity for dependable high-volume network performance.
Advanced management capabilities include VLAN configuration, static routing, traffic prioritization, link aggregation, port security, multicast filtering, IPv4 and IPv6 management, and web-based system administration.
Network Specifications
Copper Ethernet Ports: 48 RJ45 Ports
Network Speed: 10/100/1000 Mbps
Dedicated Fiber Ports: 2 Gigabit SFP Ports
Combo Ports: 2 Copper/SFP Combo Ports
Switching Capacity: 100 Gbps
Forwarding Rate: Up to 74.4 Million Packets per Second
MAC Address Table: 16,000 Entries
VLAN Support: Up to 256 VLANs
Static Routes: Up to 32 IPv4 Routes
Multicast Groups: Up to 512
Jumbo Frame Support: Up to 9K
PoE Support: No
Management Type: Smart Managed
Rack Size: 1U
Electrical Specifications
Voltage: 100–240V AC
Phase: Single Phase
Frequency: 50/60 Hz
Maximum Input Rating: 1.5 Amps
Maximum Power Consumption: 41.1 Watts
Power Supply: Internal Auto-Switching Power Supply
Power Type: Electric
Construction
Heavy-duty commercial metal enclosure
Standard 19-inch rack-mountable design
Compact 1U chassis
Internal universal power supply
Front-mounted RJ45 and SFP connections
Integrated internal cooling fan
Front-panel status indicator lights
Attached rack-mounting ears
Key Features
Forty-eight Gigabit Ethernet RJ45 ports
Two dedicated Gigabit SFP fiber ports
Two copper/SFP combo ports
100 Gbps switching capacity
Non-blocking switching architecture
Web-based management interface
IPv4 and IPv6 management support
Static routing capability
Advanced VLAN configuration
Link aggregation and LACP support
Quality-of-Service traffic prioritization
IGMP and MLD multicast snooping
Port security and access-control features
Energy Efficient Ethernet support
Designed for continuous commercial network use
Ideal for restaurants, offices, hotels, surveillance systems, and point-of-sale networks
Certifications
UL Listed
cUL Listed
CSA Certified
CE Marked
FCC Part 15 Class A
VCCI Class A
RCM Compliant
CCC Certified
IEC 950 / EN 60950 Safety Compliance
Manufacturing Information
Manufacturer: NETGEAR, Inc.
Manufacturer Location: San Jose, California, USA
Model: GS748Tv5
Manufacturer Part Number: GS748T-500NAS
Product Family: ProSAFE Gigabit Smart Switch
Country of Manufacture: China

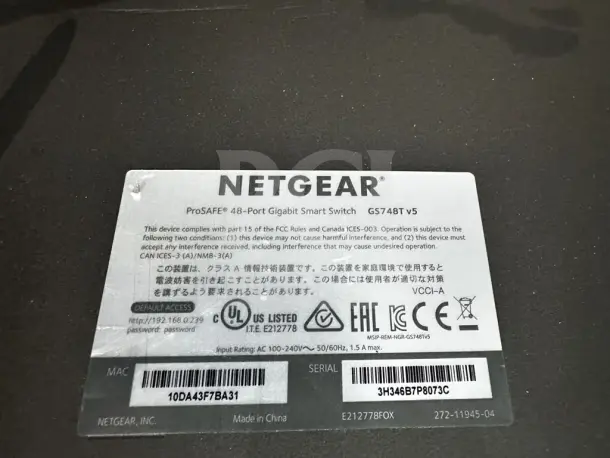

Serial Number: Visible on identification label—see photos
Included
NETGEAR ProSAFE GS748Tv5 48-Port Gigabit Smart Switch
Attached rack-mounting ears shown in photos
Unit sold exactly as shown in the NETGEAR photos
Important Notes
Sold as-is, where-is
Fully tested and working prior to listing
This model does not provide PoE or PoE+ power
SFP transceiver modules are not included unless shown
Ethernet cables are not included
Power cord is not included unless shown or specifically stated
Additional rack-mounting hardware is not included unless shown
Factory reset and network configuration may be required before installation
No manufacturer warranty included
Shipping calculated at checkout
Local pickup available
