Condition
Used – Good Condition – Fully Inspected & Ready for Commercial Installation
This commercial water-filtration assembly has been professionally inspected for completeness and general physical condition. The dual-cartridge manifold, two filter cartridges, mounting plate, pressure gauges, shutoff valves, flushing components, fittings, and cartridge-locking mechanisms are present as shown.
The housings and manifold show visible scratches, scuffs, water marks, discoloration, residue, and other cosmetic signs consistent with previous commercial use.
Because the remaining life and internal condition of used filtration media cannot be reliably verified visually, replacement cartridges are recommended before returning the system to foodservice operation. A qualified water-filtration technician should sanitize, pressure-test, and commission the system after installation.
Description

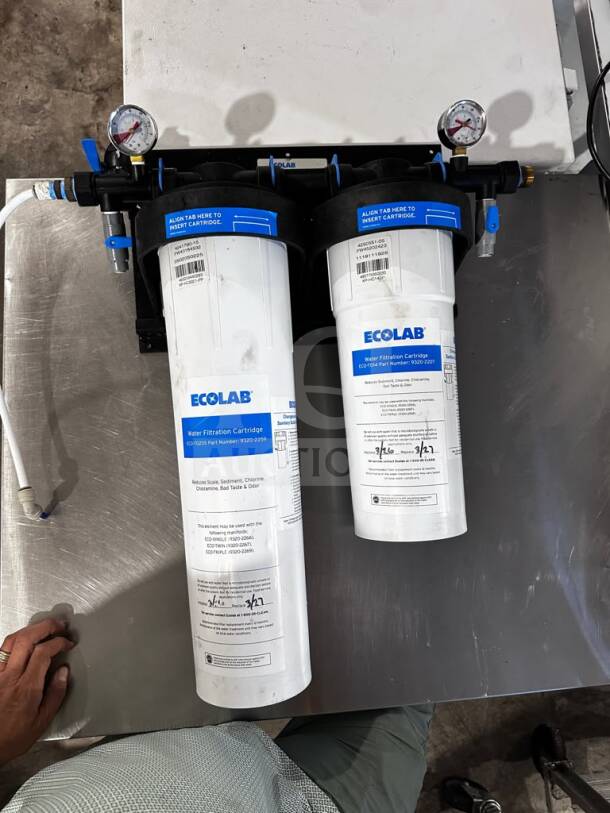

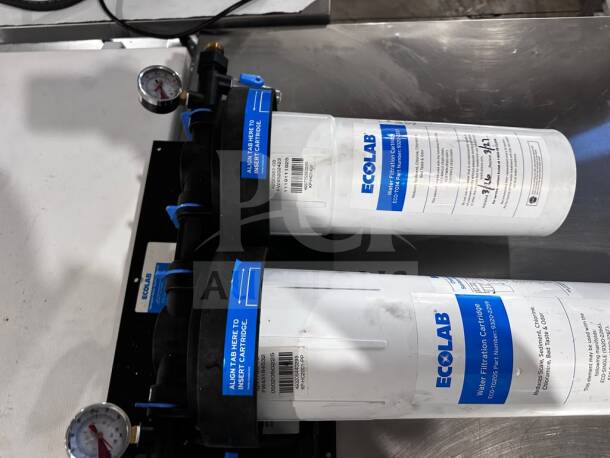

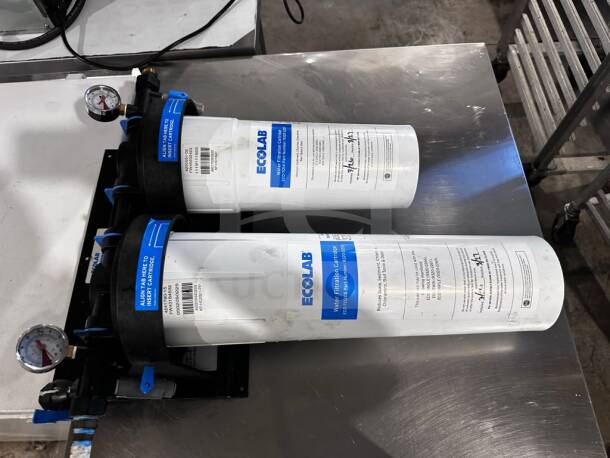

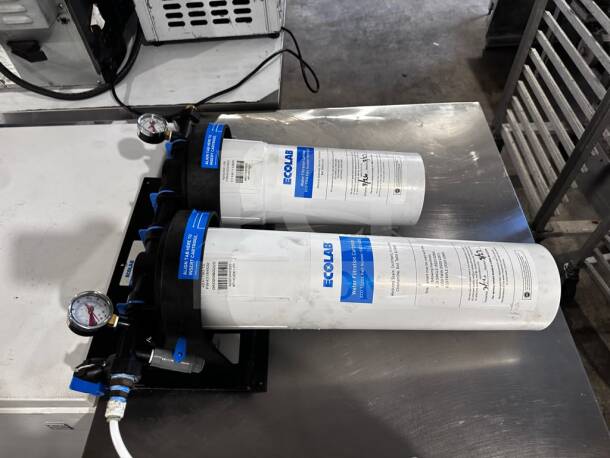

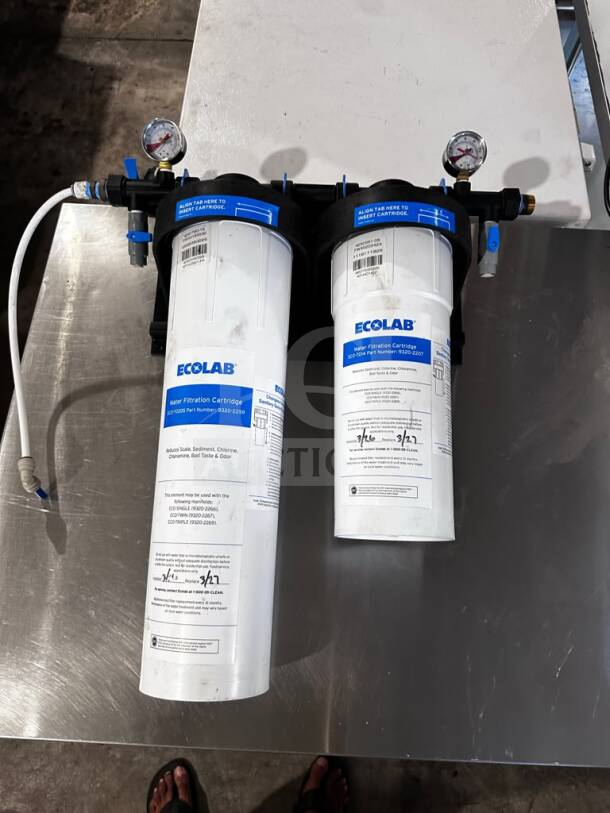

The pictured assembly is an Ecolab-branded commercial dual-cartridge water-filtration system fitted with KineticoPRO KP-HC1401 HC Series cartridges and a double-head modular manifold.
The corresponding current system configuration is the KineticoPRO KPMF HC614-2, part number KP-300-778-HC614-2, also referenced as 80-6142. It is designed for high-volume commercial beverage and multi-use water applications.
The system uses two 14-inch hollow-carbon filtration cartridges in a parallel double-manifold arrangement. This configuration is designed to improve commercial water quality by reducing chlorine, chloramines, unpleasant tastes, odors, particulates, and other contaminants that can affect beverage flavor and foodservice-equipment performance.
Typical applications include fountain beverage systems, coffee and tea equipment, juice dispensers, drinking-water lines, specialty beverage equipment, and other commercial cold-water applications. The HC614-2 is designed for high-volume beverage installations serving approximately one to three carbonators.
Filtration Specifications
System Series: KPMF HC Series System Configuration: Dual-Cartridge / Double Parallel Manifold Cartridge Model: KP-HC1401 / HC614 Number of Cartridges: 2 Cartridge Size: 14 in Filtration Media: Hollow Activated Carbon Nominal Micron Rating: 1 Micron Rated System Capacity: Up to 150,000 Gallons Primary Applications: Fountain Beverages, Juice, Drinking Water, Coffee and Tea Water Application: Cold Potable Water
The dual HC614 system is listed with a combined capacity of approximately 150,000 gallons, while each HC614 cartridge is designed around high-capacity hollow-carbon filtration.
Actual cartridge life depends on incoming water quality, flow demand, chlorine or chloramine concentration, sediment load, operating pressure, and local service conditions.
Contaminant Reduction
The HC Series filtration media is designed to reduce:
KineticoPRO states that its hollow-carbon technology provides high dirt-holding capacity, low pressure drop, and improved distribution of water through the filtration media.
Connection Specifications
Inlet Connection: 3/4 in FNPT Outlet Connection: 3/4 in FNPT Pressure Gauges: 2 Installed Manifold Type: Double Parallel Mounting Style: Wall-Mounted Shutoff Valve: Integrated Flushing Valve: Integrated

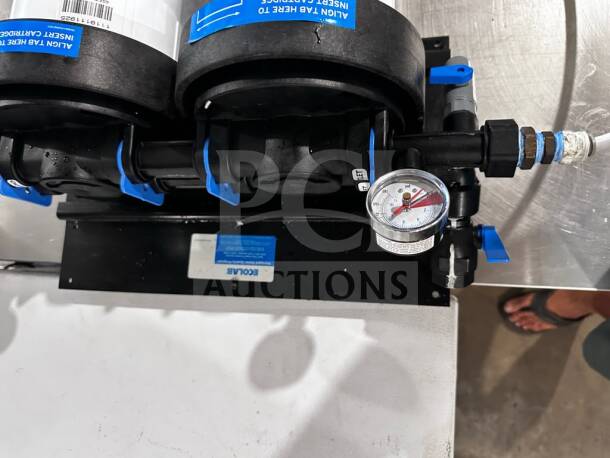

KineticoPRO’s double manifold includes a built-in mounting plate, water shutoff, flushing valve, pressure gauges, and 3/4-inch female NPT inlet and outlet connections.
Approximate Dimensions
Width: 21 in Depth: 9 in Height: Approximately 23 in with 14-inch cartridges installed
The double manifold itself is listed at approximately 21 inches wide × 9 inches deep × 11.5 inches high. The HC614 single-cartridge system measures approximately 23 inches high, so the complete dual-cartridge assembly should be allowed roughly 23 inches of installed height plus additional clearance for cartridge removal.
Buyers should verify the available wall space and provide adequate clearance below the system for cartridge replacement.
Power Requirements
Power Type: Non-Powered Voltage: Not Applicable Phase: Not Applicable Amperage: Not Applicable
This filtration system operates using incoming water pressure and does not require an electrical connection.
Construction
Heavy-duty modular commercial manifold
Two replaceable sanitary quick-change cartridges
Durable polypropylene cartridge construction
Integrated wall-mounting plate
Two pressure gauges
Integrated inlet shutoff
Integrated flushing valve
3/4-inch FNPT water connections
Blue cartridge-alignment guides
Twist-lock cartridge installation
Expandable modular filtration design
Commercial foodservice configuration
Key Features
Dual high-capacity filtration cartridges
Up to 150,000 gallons of rated system capacity
High-flow commercial design
Hollow activated-carbon filtration media
Reduces chlorine and chloramines
Improves beverage taste and odor
One-micron nominal particulate reduction
Low pressure-drop design
Two pressure gauges help monitor system performance
Sanitary quick-change cartridge design
Integrated shutoff simplifies service
Integrated flush valve supports cartridge changes
Wall-mounted installation saves floor space
No electrical connection required
Suitable for multiple beverage applications
Designed for demanding commercial environments
Recommended Applications
Fountain beverage systems
Soda dispensers
Carbonators
Coffee brewers
Tea brewers
Juice dispensers
Specialty beverage equipment
Drinking-water systems
Quick-service restaurants
Full-service restaurants
Cafés
Convenience stores
Hotels
Commissaries
Institutional foodservice operations
Certifications
The corresponding KineticoPRO HC614 system is tested and certified to:
The NSF/ANSI 42 certification covers aesthetic water-quality reduction claims such as chlorine, taste, odor, and particulate reduction.
Certification remains dependent on the use of approved replacement cartridges and proper installation according to manufacturer instructions.
Cartridge Identification

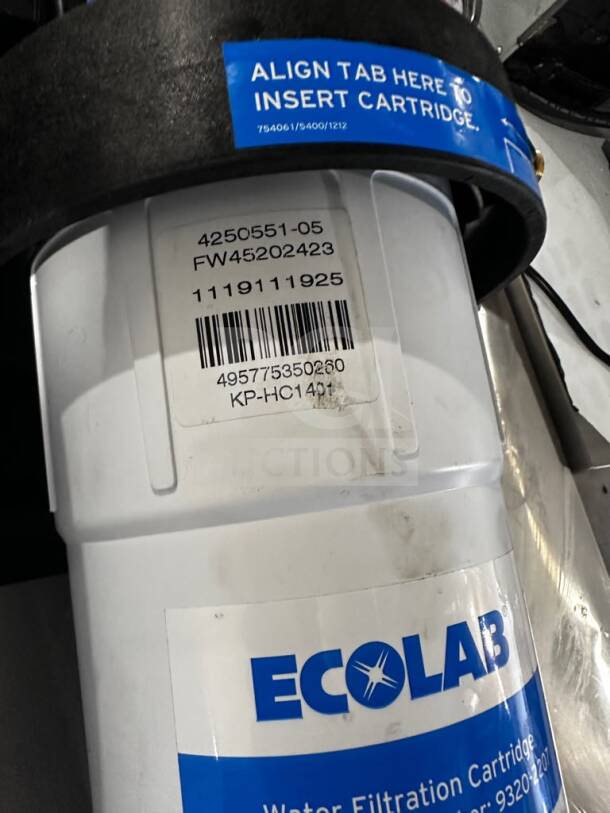

The cartridge labels visible in the photographs show:
Branding: Ecolab Cartridge Platform: KineticoPRO HC Series Cartridge Model: KP-HC1401 Visible Part / Identification Number: 4250551-05 Visible Production Code: FW45202423 Visible Barcode Number: 1119111925
The external label also instructs the installer to align the cartridge tab with the manifold before insertion.
Manufacturing Information
Brand Displayed: Ecolab Filtration Technology Manufacturer: KineticoPRO / Kinetico Incorporated Comparable System Model: KPMF HC614-2 System Part Number: KP-300-778-HC614-2 Alternate Part Number: 80-6142 Manifold Model: KP-300-778 Cartridge Model: KP-HC1401 / HC614 Equipment Type: Commercial Dual-Cartridge Water Filtration System Manifold Country of Manufacture: USA
KineticoPRO identifies the KP-300-778 as its double parallel commercial manifold.
Included
One dual-head commercial filtration manifold
Two Ecolab-branded KP-HC1401 filtration cartridges
Two installed pressure gauges
Integrated shutoff and flushing controls
Wall-mounting plate
Installed fittings and components shown in the photographs
The system is sold exactly as shown in the supplied photos.
Water lines, mounting screws, additional plumbing fittings, sanitizing chemicals, replacement cartridges, installation labor, and surrounding equipment are not included unless specifically stated.
