Make: CMA Model: EST-AH2 Width: 25.75 Depth: 25.75 Height: 57.0
Division: Southern California

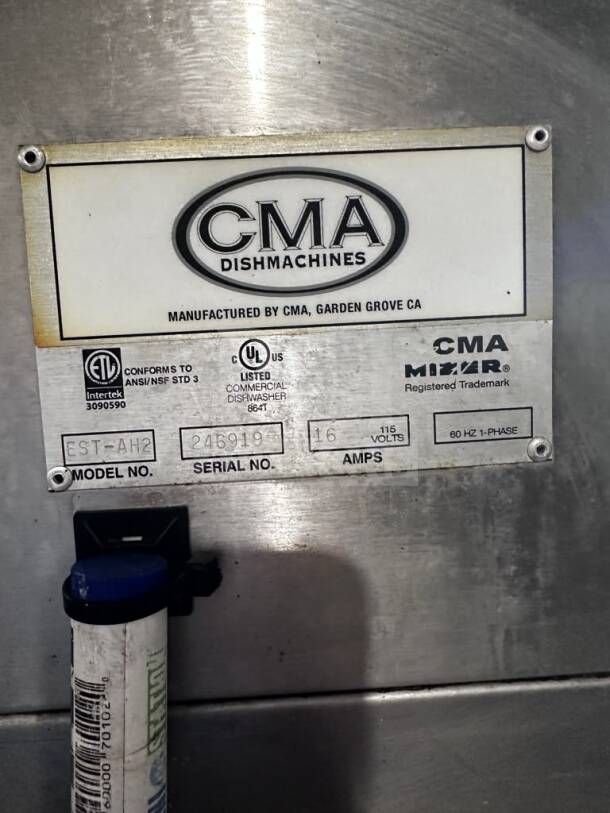

> Model verification: The data plate in the supplied photo identifies this unit as EST-AH2, serial number 246919. It should not be listed as EST-AH-EXT unless another manufacturer plate confirms the extended-door version.
Condition
Used – Good Condition – Fully Tested & Operational

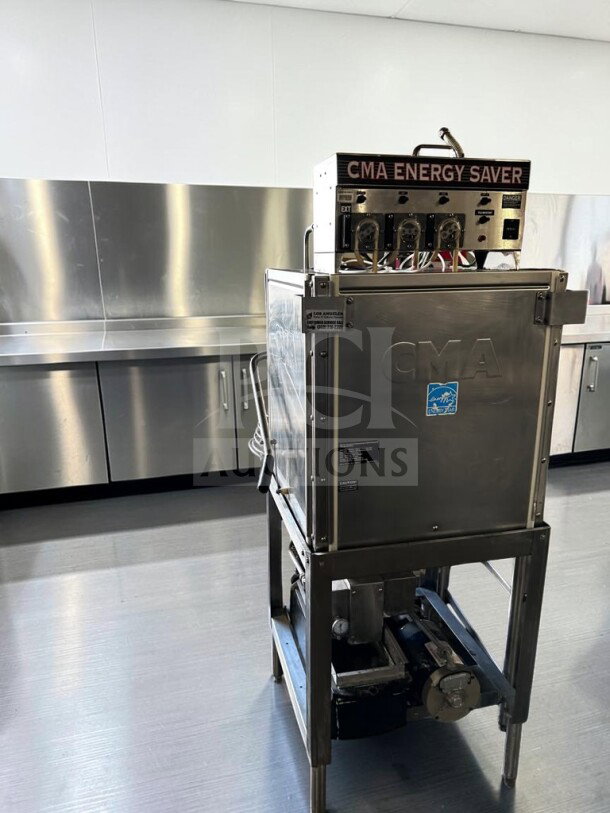

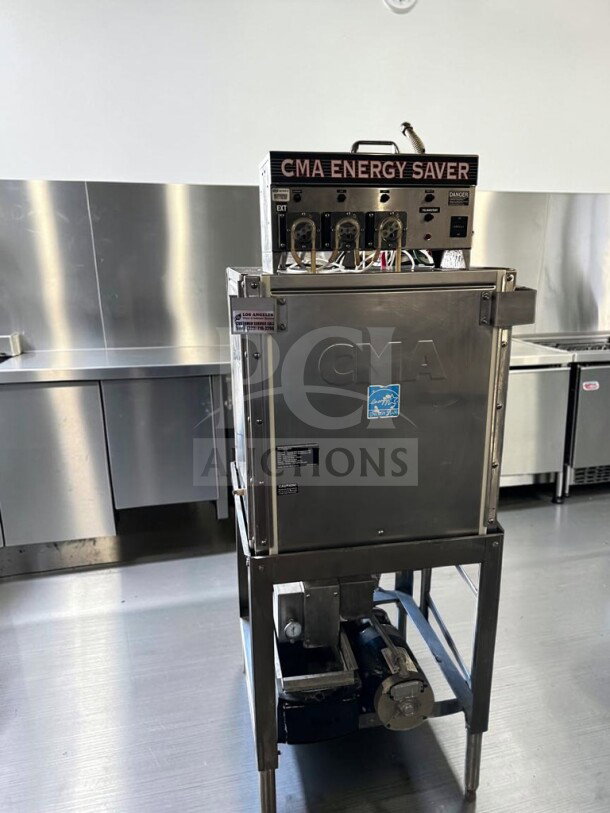

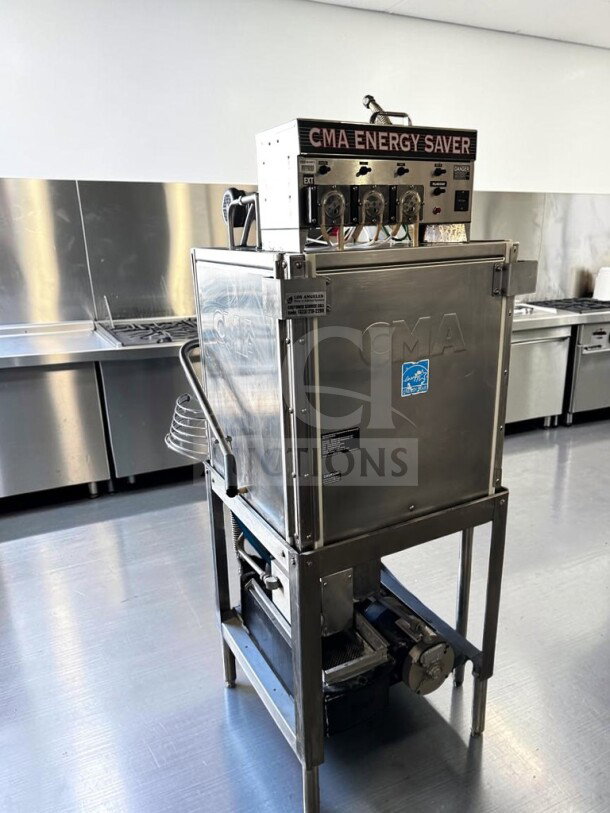

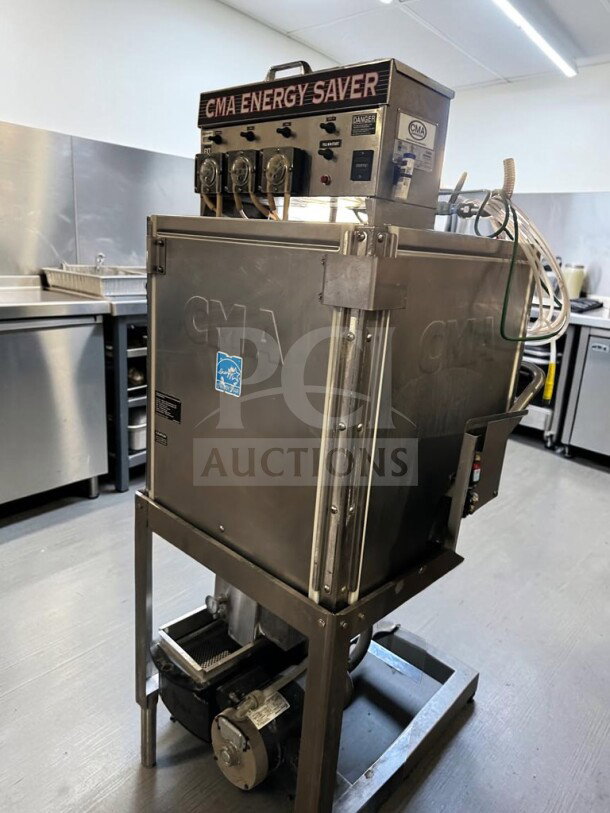

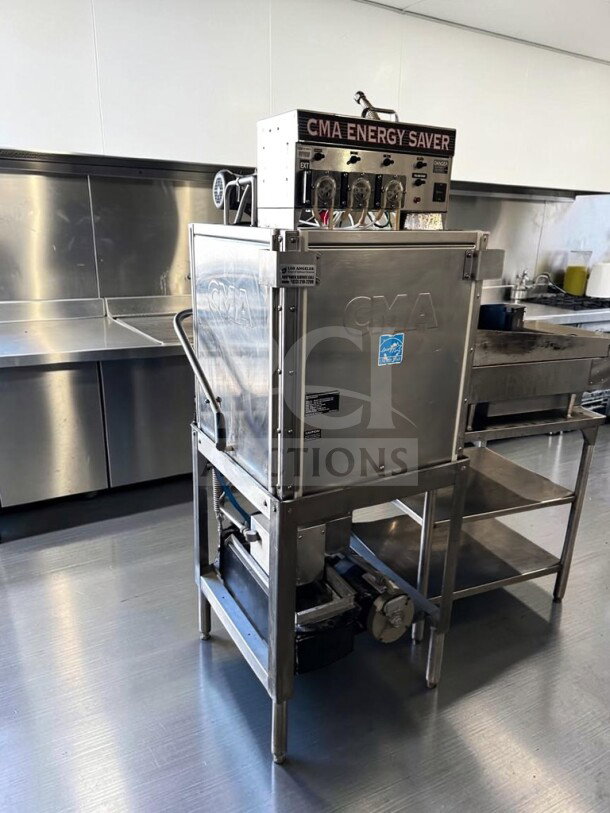

This commercial dishwasher has been professionally inspected and tested to confirm proper operation. The heavy-duty stainless steel exterior shows visible scratches, scuffs, marker writing, discoloration, and other cosmetic signs consistent with previous restaurant use.
The door assembly, stainless steel wash chamber, top-mounted controls, chemical-feed components, pump system, and supporting frame are present as shown. Cosmetic wear does not affect the unit’s commercial washing function. Please review all photos carefully for the exact physical condition.
Description

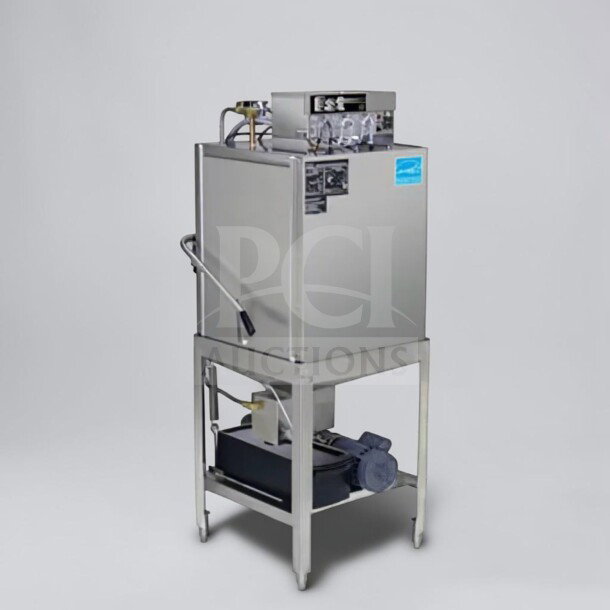

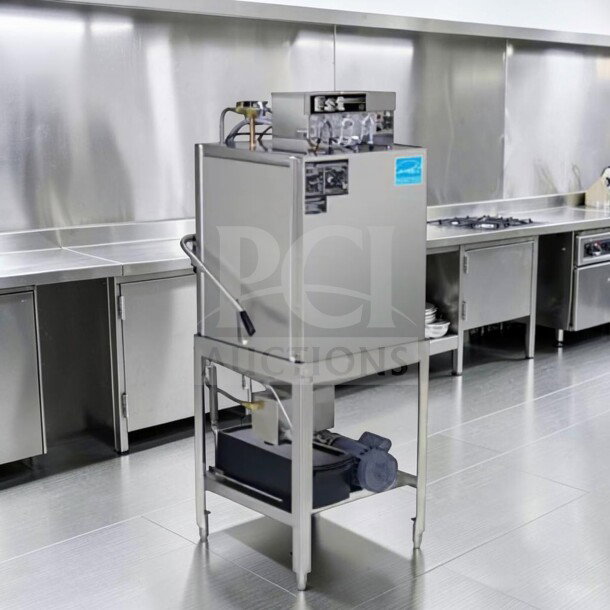

The CMA Dishmachines EST-AH2 Energy Mizer® is a commercial low-temperature, chemical-sanitizing door-type dishwasher designed for restaurants, cafés, hotels, bars, catering kitchens, institutional facilities, and other high-volume foodservice operations.
Its single-rack, straight-through configuration allows operators to load standard commercial dish racks from one side and remove them from the opposite side, helping maintain an efficient dishwashing workflow during busy service periods.
The dishwasher is constructed from durable stainless steel and features top-mounted operating controls, built-in chemical-delivery components, automatic cycle operation, and a commercial wash-pump system. CMA’s AH-series machines are designed to process as many as 40 racks or approximately 160 covers per hour.
Because this is a low-temperature machine, sanitizing is completed through the properly installed commercial sanitizing chemical system rather than through a high-temperature booster heater.
Performance Specifications
Production Capacity: Up to 40 racks per hour Approximate Cover Capacity: Up to 160 covers per hour Dishwasher Style: Single-Rack Door-Type Configuration: Straight-Through Sanitation Method: Low-Temperature Chemical Sanitizing Rack Type: Standard Commercial Dish Rack Wash Pump Motor: 1 HP Operating System: Automatic Start/Stop
CMA documentation for the AH platform confirms the 40-rack-per-hour capacity, stainless steel construction, upper and lower wash arms, chemical-delivery system, and automatic operation.
Electrical Specifications
Voltage: 115V Phase: Single Phase Frequency: 60 Hz Amperage: 16 Amps Power Type: Electric
These electrical ratings are visible directly on the manufacturer data plate in the supplied photo and agree with published AH-2 specifications.
Approximate Dimensions
Width: 25.75 in Depth: 25.75 in Height: 57 in
Approximate Weight: 270 lb
Published specifications for the CMA AH-2 list a 25.75-inch width, 25.75-inch depth, and approximately 57-inch overall height.
Buyers should verify all measurements and utility clearances before installation.
Plumbing and Installation Requirements
Commercial hot-water supply required
Chemical sanitizer supply required
Detergent and rinse-aid connections required
Drain connection required
Professional plumbing installation recommended
Dedicated electrical circuit recommended
Final installation must comply with applicable local plumbing, sanitation, and electrical codes
The exact water temperature, pressure, drain arrangement, chemical concentration, and utility requirements should be confirmed by a qualified commercial dishwasher technician before installation.
Construction
Heavy-duty stainless steel body
Stainless steel wash chamber
Stainless steel supporting frame

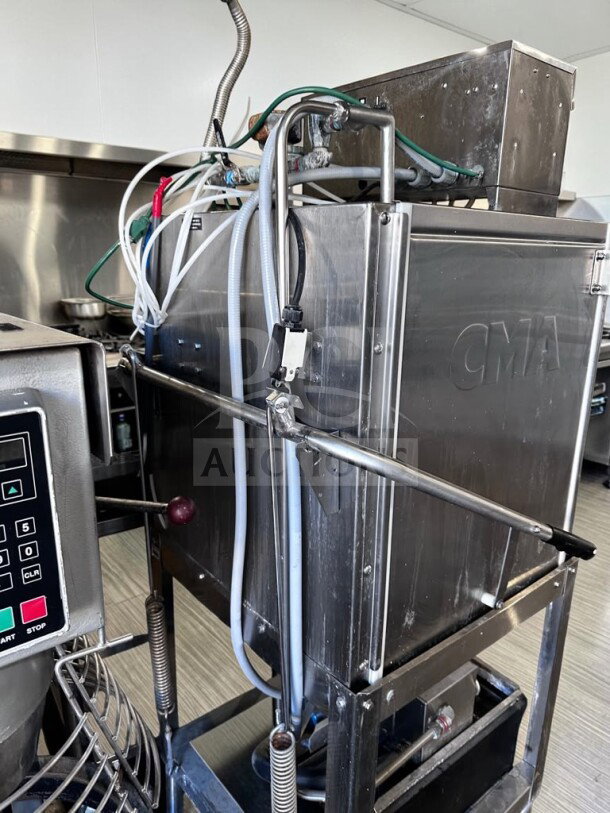

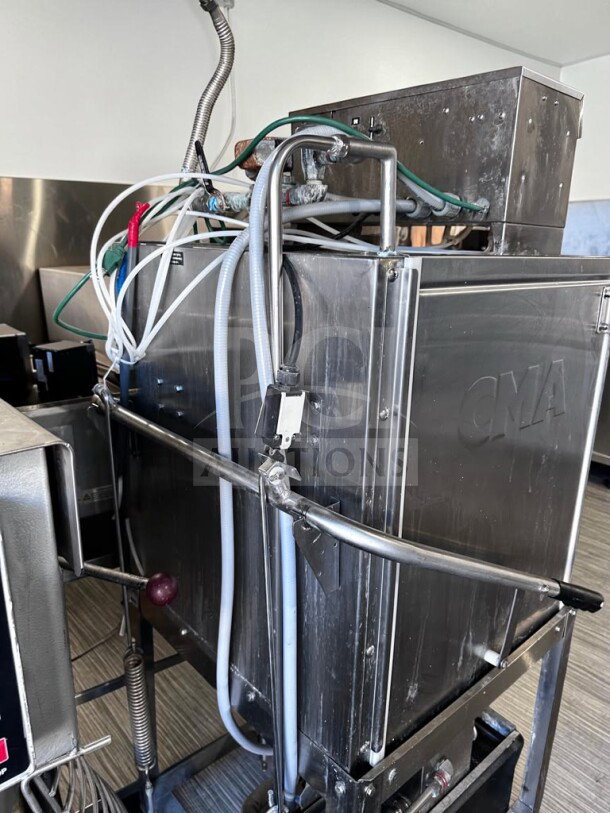

Commercial door-lift assembly
Single-rack straight-through design

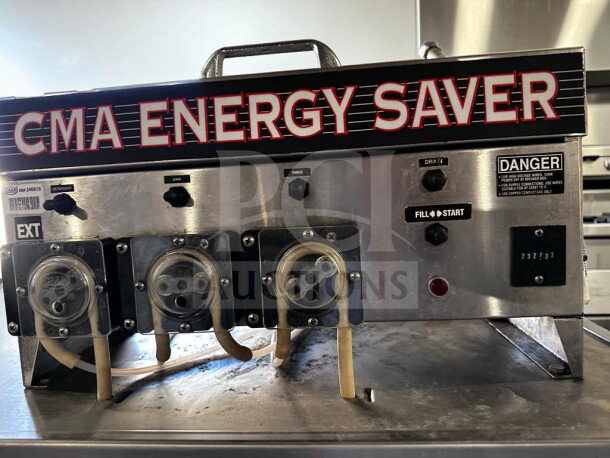

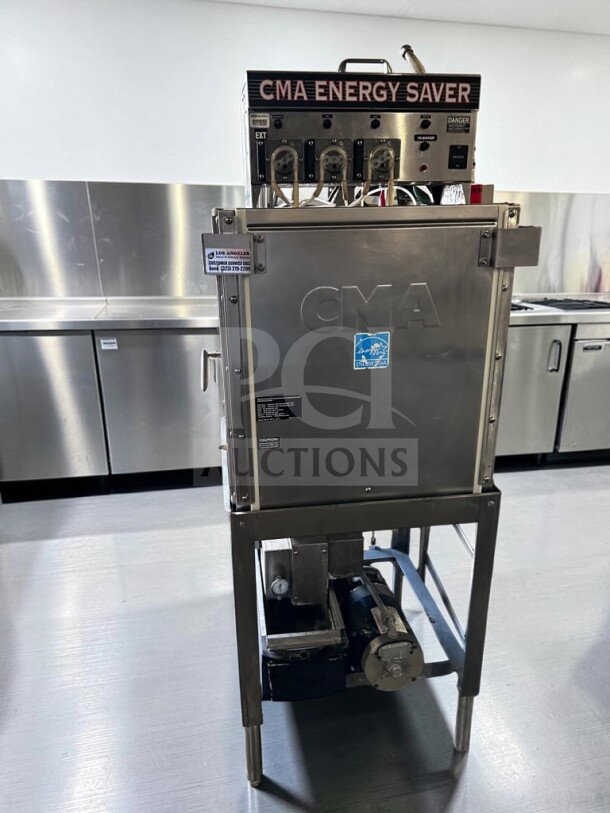

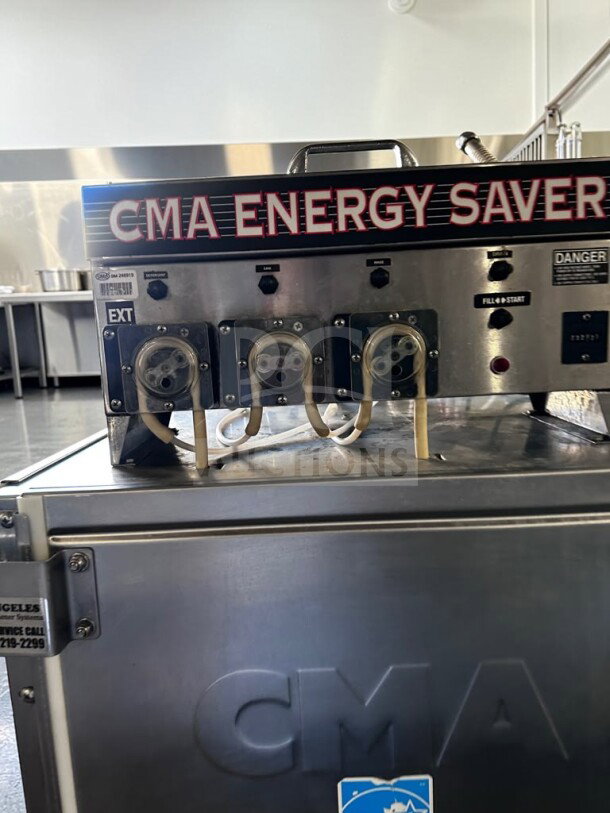

Top-mounted control enclosure
Upper and lower wash-arm system

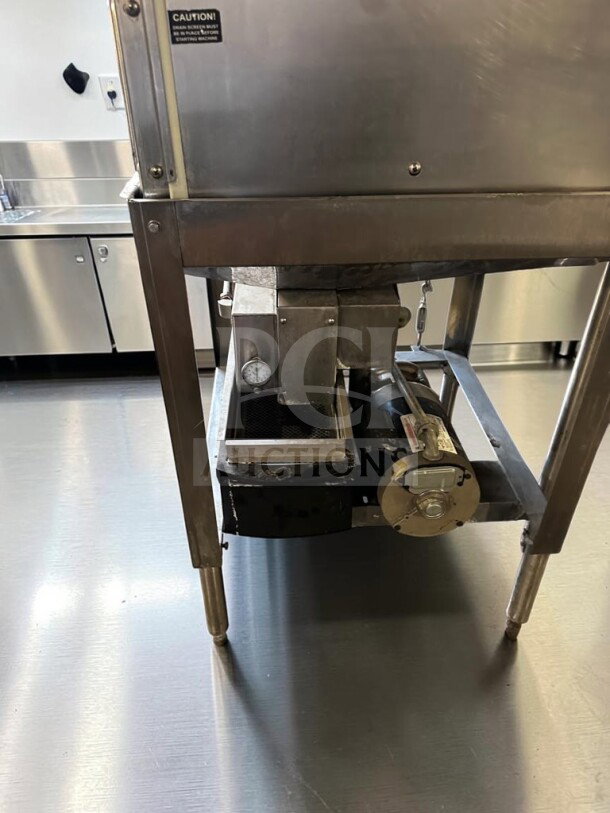

Commercial wash-pump assembly
Chemical-feed tubing and components
Removable scrap-handling components
Front and side service access
Adjustable commercial legs
Key Features
Processes up to 40 standard dish racks per hour
Low-temperature chemical-sanitizing operation
Single-rack door-type design
Straight-through commercial workflow
Automatic start and stop operation
Top-mounted operating controls
Built-in chemical-feed components
Heavy-duty stainless steel construction
Commercial 1 HP wash-pump system
Easy-to-remove wash arms for cleaning
Designed for continuous restaurant use
Suitable for plates, glasses, utensils, trays, and cookware
115V single-phase electrical configuration
Space-efficient upright design
Certifications
The equipment plate displays:
UL Listed Commercial Dishwasher
ETL / Intertek Sanitation Certification
Conforms to ANSI/NSF Standard 3
The certifications apply to the machine as manufactured. Buyers should verify that the installation and operating setup remain compliant with local requirements.
Recommended Applications
Manufacturing Information
Manufacturer: CMA Dishmachines Manufactured By: CMA, Garden Grove, California, USA Model: EST-AH2 Model Family: AH-2 Energy Mizer® Serial Number: 246919 Electrical Rating: 115V / 60 Hz / Single Phase / 16 Amps
Included
CMA Dishmachines EST-AH2 dishwasher
Stainless steel dishwasher body
Installed supporting frame
Top-mounted control assembly
Installed wash-pump system
Chemical tubing and installed components shown in photos
Unit is sold exactly as shown in the supplied photos.
Dish racks, chemical containers, external tables, faucets, booster equipment, plumbing accessories, and surrounding equipment are not included unless specifically stated.
