This 2020 Diamond Cargo 24-foot by 8.5-foot tandem-axle commercial kitchen trailer features a complete cooking line built around gas-fired equipment and comprehensive refrigeration capacity. The chassis provides 14,000 lbs GVWR with 7,000 lb per axle capacity on ST235/80R16 tires. The trailer includes a large pass-through service window with drop-down shelf, fold-down entry stairs, and professional vinyl wrap exterior.
The cooking suite centers on a Pitco SG14R gas fryer rated at 122,000 BTU/hr, flanked by Wells gas griddles providing dual cooking zones with 4-burner and 3-burner sections. The ventilation package includes a hood system with baffle filters, rooftop mushroom exhaust fan, and fire suppression featuring Pyro-Chem NMCH3 control head with Ansul nozzle distribution and manual K-class fire extinguisher.
Refrigeration capacity includes six Arctic Air commercial units providing extensive cold storage: AST72RZ 3-door reach-in refrigerator, AST48RZ 2-door reach-in refrigerator, AUC48RZ 2-door undercounter refrigerator, AUC27FZ undercounter freezer, AF23Z reach-in freezer, and AGR23 reach-in cooler. All units operate on 115V single-phase power using R290 or R600a refrigerant. A Sharp R-21LVF commercial microwave provides reheating capability.
The kitchen layout includes stainless steel 3-compartment sink with drainboards and spray rinse, wall-mounted hand sink with foot pedal operation, exterior hand sink, stainless steel work tables and counter surfaces, wire shelving throughout, and undercounter storage cabinets. The interior features stainless steel walls and ceiling with diamond plate aluminum flooring and LED lighting.
Utilities include Square D electrical panel providing 120/240V single-phase service with multiple GFCI-protected outlets, front-mount LP cage with regulator and shutoff valve, professional iron pipe gas distribution with multiple equipment drops, PEX water lines, and EKM gas meter for consumption monitoring. Technology infrastructure includes an APC 48-port network patch panel and Avigilon security camera system.
This unit shows operational wear consistent with commercial food service use. The hood system requires cleaning due to grease accumulation, and refrigeration equipment exhibits base corrosion requiring assessment. Floor surfaces have debris accumulation and exterior shows rust staining around fixtures and wheel wells. The trailer presents a complete and functional commercial kitchen platform requiring cleaning and maintenance before deployment.
TRAILER SPECIFICATIONS (FROM DATA PLATE):
Manufacturer: Diamond Cargo
VIN: 53NBE2424M1083695
Type: 8.5' x 24' Tandem Axle Trailer
GVWR: 6350 kg (14000 lbs)
Tires: ST235/80R16 E
Rim Size: 16 X 8J
Max Cargo Weight: 10400 lbs
Axle Configuration: tandem
Hitch Type: bumper pull

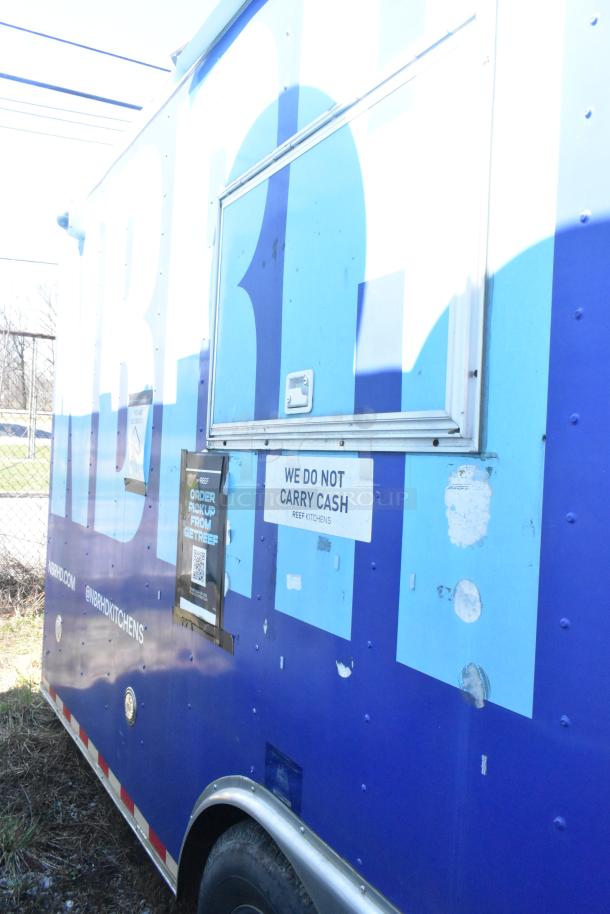

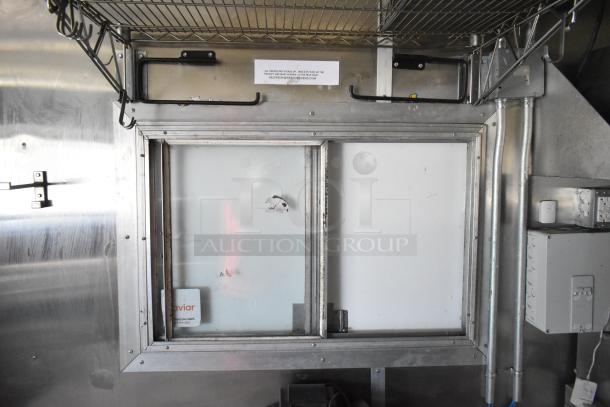

Serving Windows: 1 large pass-through window with slide glass panel and drop-down service shelf
Entry: Front entry with metal fold-down stairs and handrail

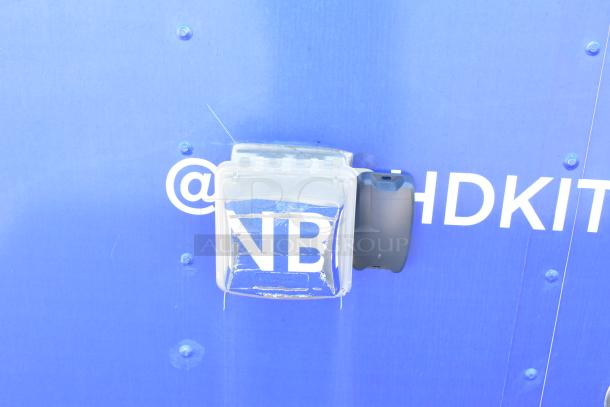

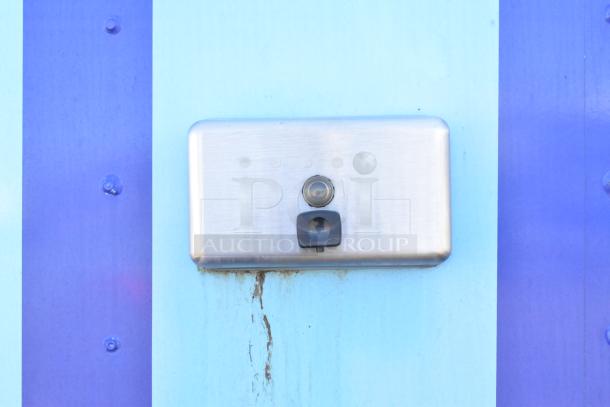

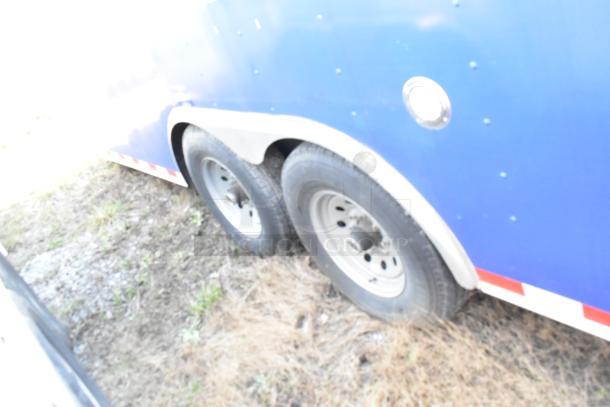

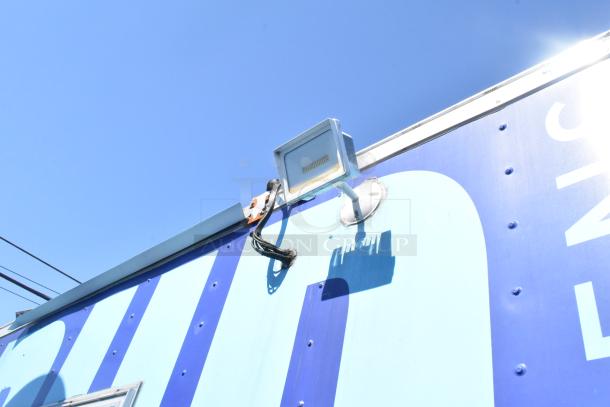

Exterior: Blue vinyl wrap with NBRHD (Neighborhood Kitchens) branding shows moderate UV fading and normal operational wear. Visible rust staining around exterior hand sink and soap dispenser with brown streaks running down from mounting. Wheel wells show surface rust. White diamond plate trim and fender panels show oxidation. Wrap is intact without major tears or damage. Minor scuffing at bottom edges.
EQUIPMENT INCLUDED:
Cooking & Ventilation
Grease Hood

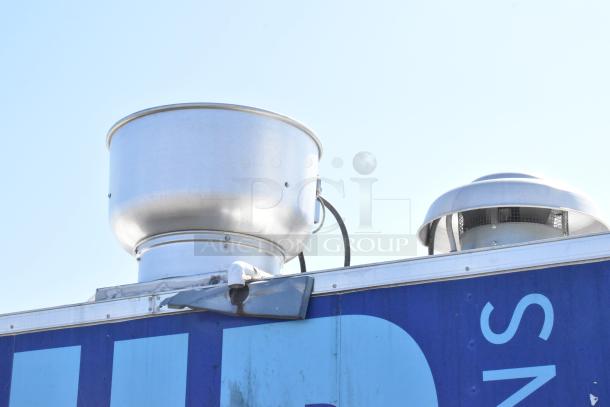

Exhaust Fan — rooftop mushroom
Pitco SG14R Gas Fryer, 122,000 BTU/hr, 115V 1-Phase
Wells 4-Burner Gas Griddle
Wells 3-Burner Gas Griddle
Refrigeration

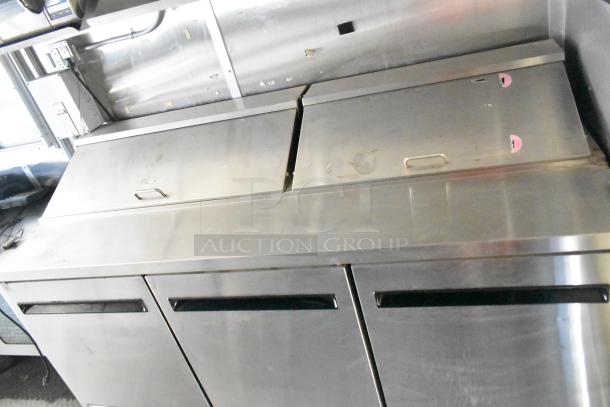

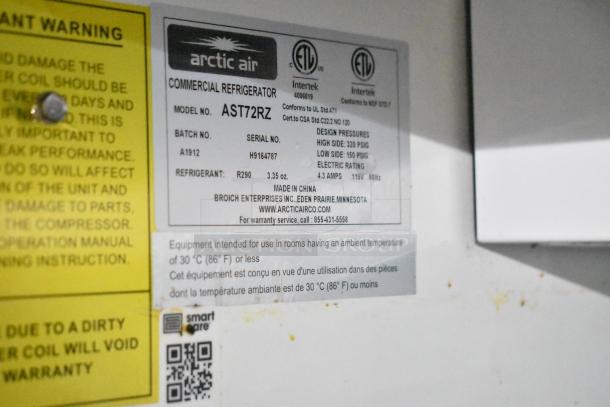

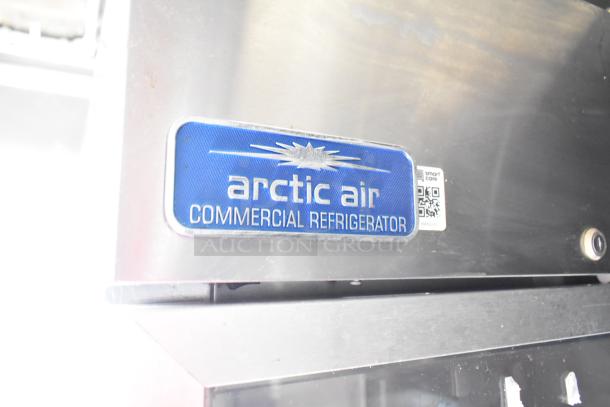

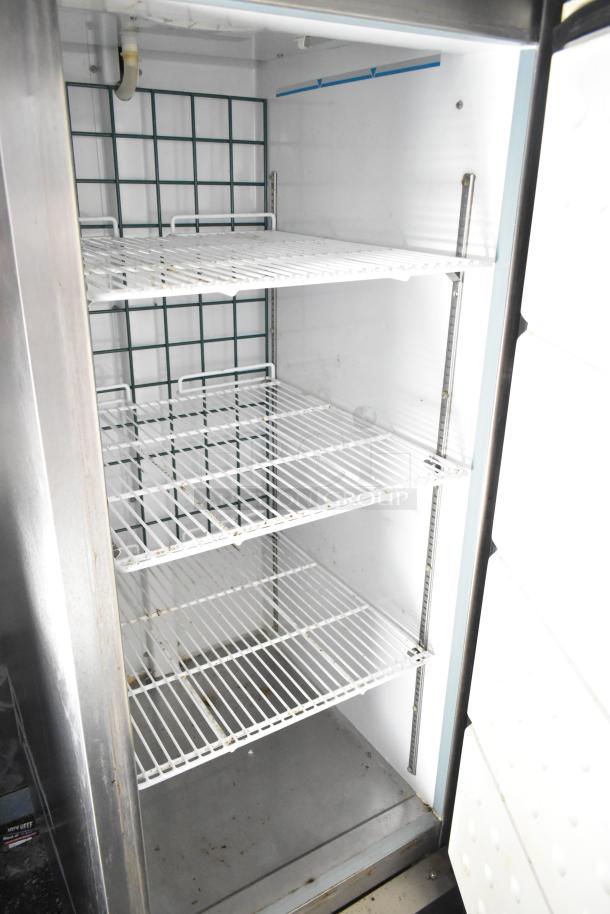

Arctic Air AST72RZ 3-Door Reach-In Refrigerator, 115V 1-Phase, R290
Arctic Air AST48RZ 2-Door Reach-In Refrigerator, 115V 1-Phase, R290

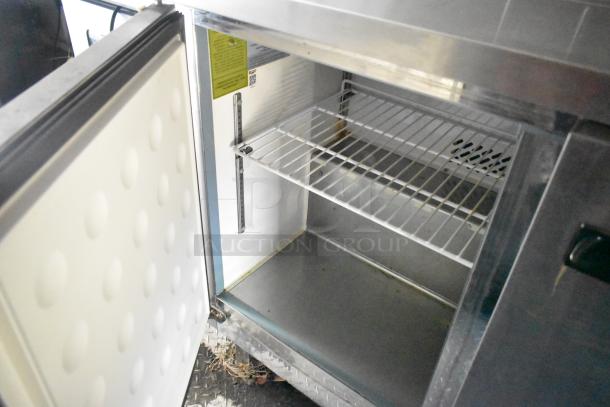

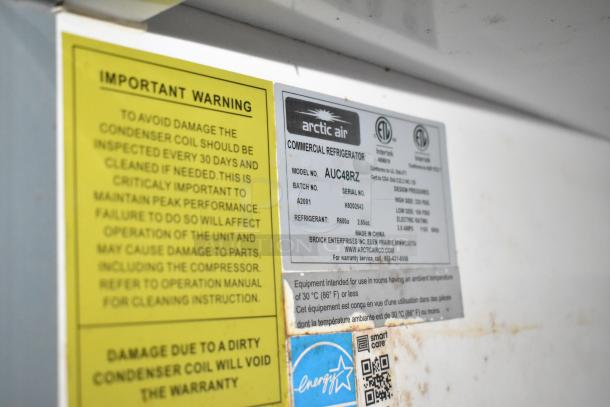

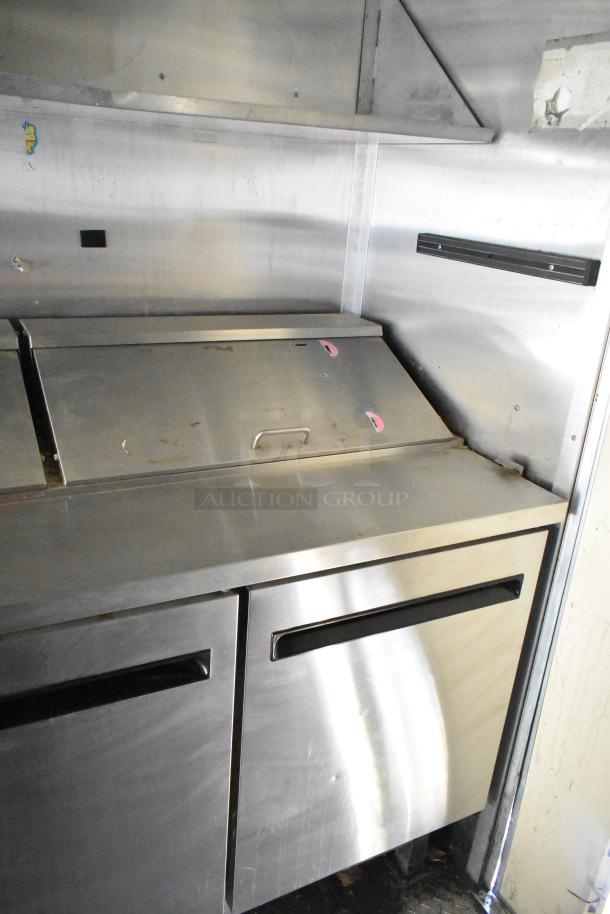

Arctic Air AUC48RZ 2-Door Undercounter Refrigerator, 115V 1-Phase, R600a
Arctic Air AUC27FZ 1-Door Undercounter Freezer, 115V 1-Phase, R290

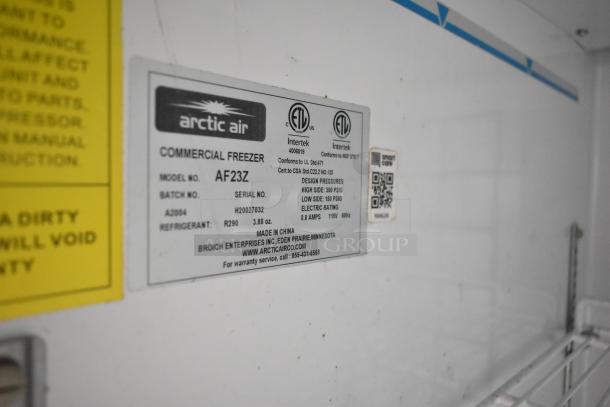

Arctic Air AF23Z 1-Door Reach-In Freezer, 115V 1-Phase 8.0A, R290

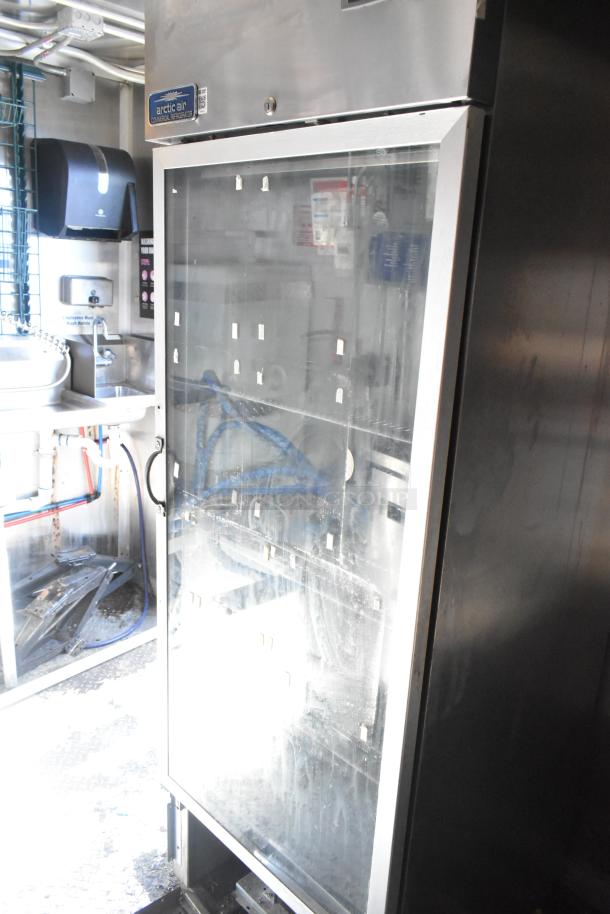

Arctic Air AGR23 1-Door Reach-In Cooler, 115V 1-Phase 2.7A
Holding & Warmers

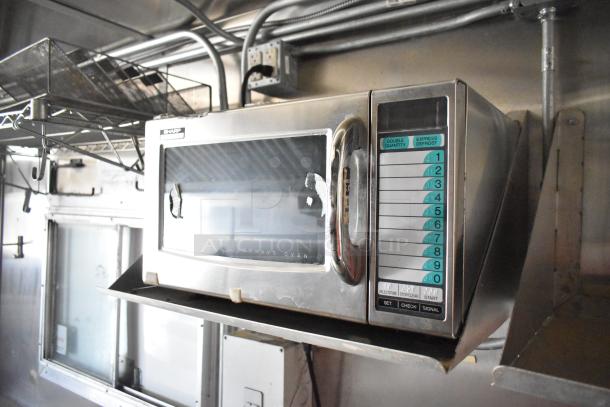

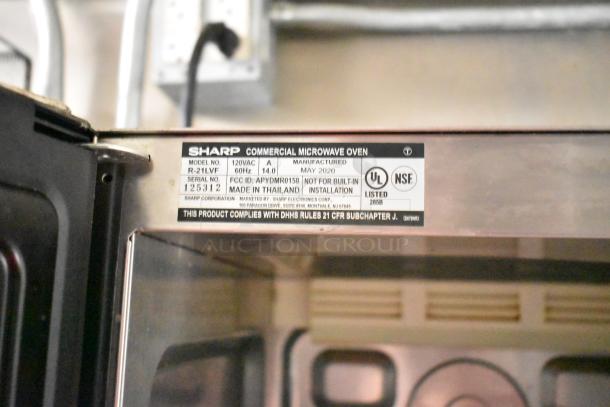

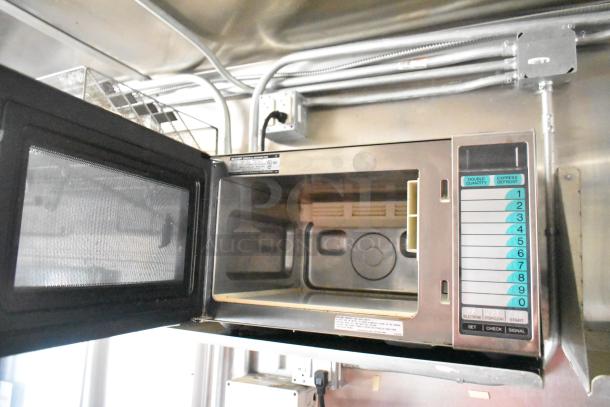

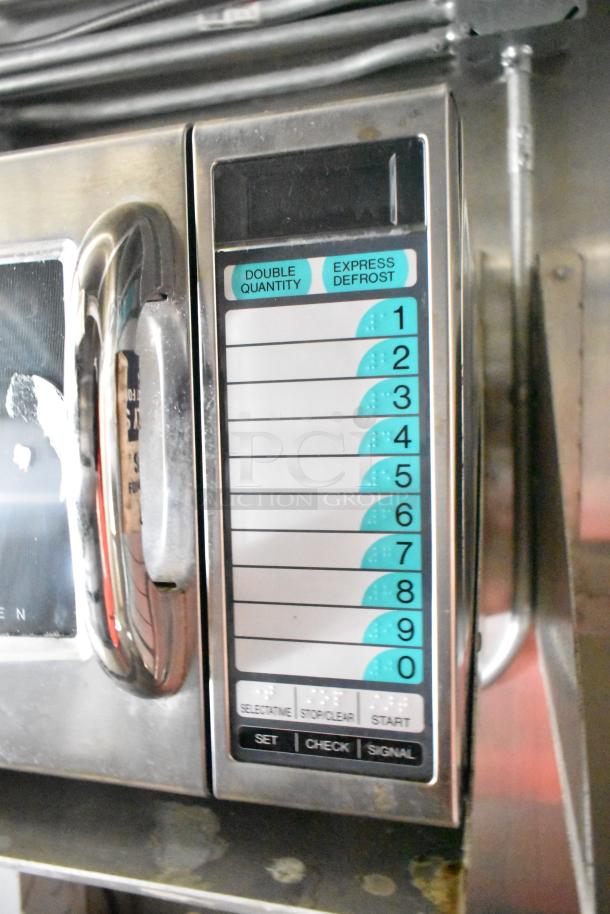

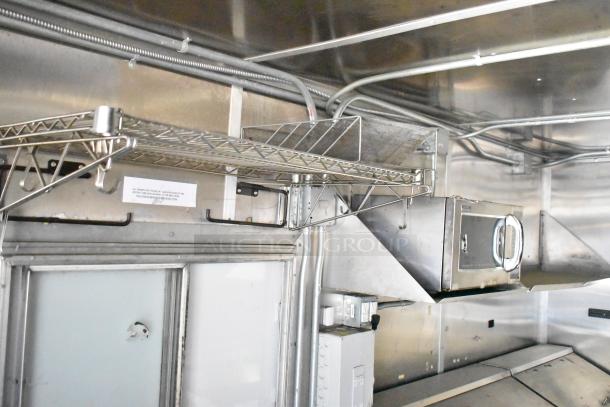

Sharp R-21LVF Commercial Microwave, 120V 1-Phase, 14.0A
Prep & Service Equipment
3-Compartment Sink with Drainboards and Spray Rinse
Wall-Mounted Hand Sink with Foot Pedal Operation
Exterior Hand Sink with Soap Dispenser
Stainless Steel Work Tables and Counter Surfaces
Wire Shelving Units
Undercounter Stainless Storage Cabinet with Sliding Doors
Sinks & Sanitation
3-Bay Sink with Drain Boards
Single Bay Hand Wash Sink
Water & Utilities
Water Heater
Exterior Fresh Water Hookup
Exterior Tank LP Propane System — Front-mount cage on tongue
External Propane Shutoff Valve
Electrical
120/240V 1-Phase — TBD Amp, Panel TBD
Shore Power Inlet: TBD

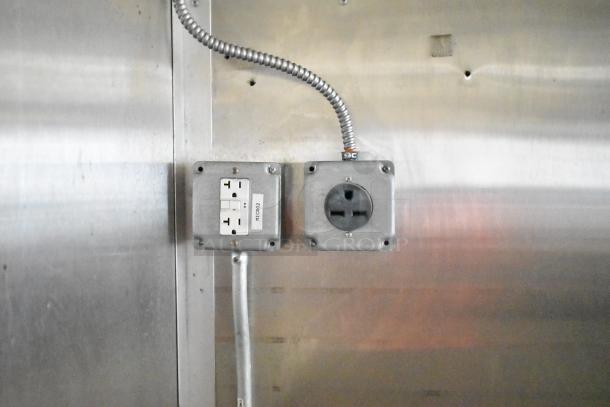

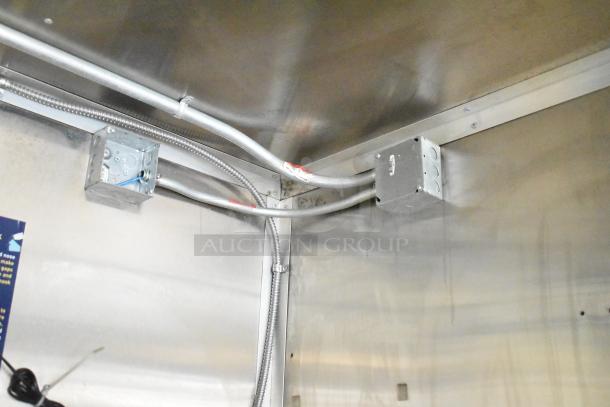

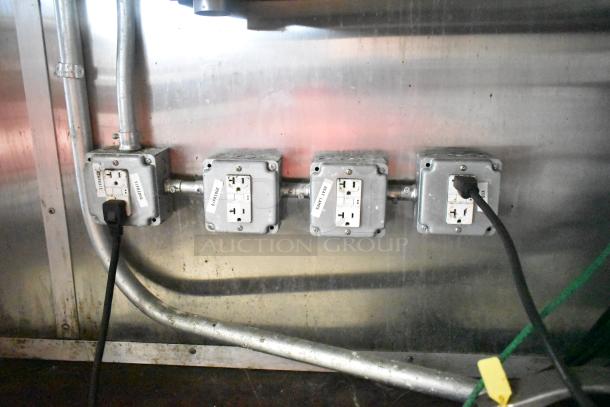

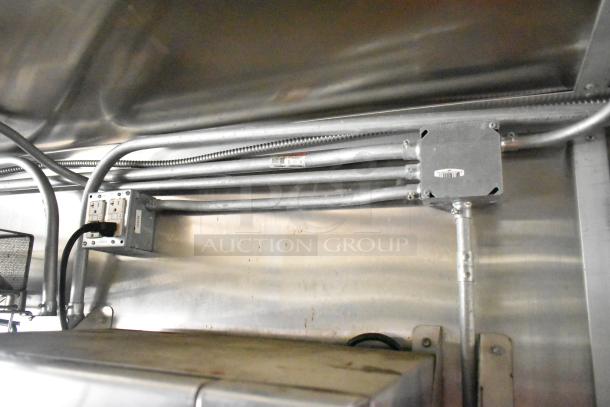

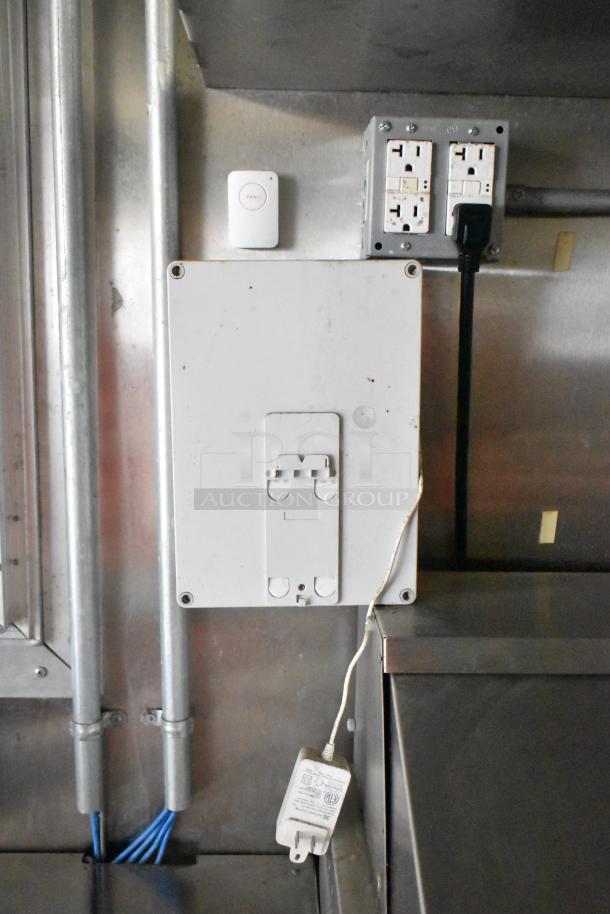

Square D electrical panel with 26-position circuit breaker configuration provides 120/240V single-phase service. Four GFCI-protected weatherproof outlet boxes visible on interior wall. Extensive conduit runs throughout interior. Multiple 120V circuits serve cooking equipment, refrigeration, and lighting.
HVAC & Fire Safety

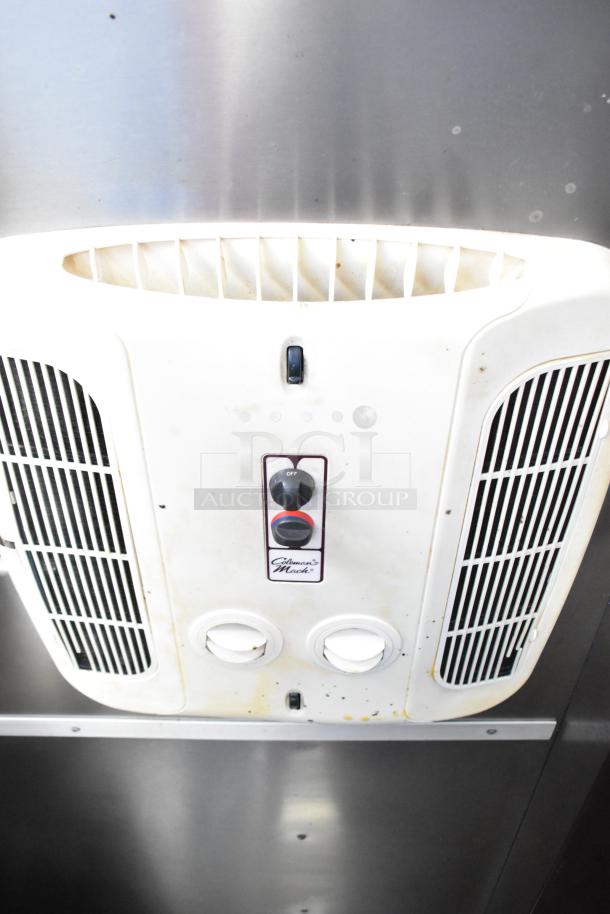

TBD TBD (TBD BTU) A/C System
Fire Suppression: Pyro-Chem and Ansul
Trailer Features
Hood System with Baffle Filters and Rooftop Mushroom Exhaust Fan
Pyro-Chem NMCH3 Fire Suppression Control Head with Ansul Nozzles
Manual K-Class Fire Extinguisher
Square D 120/240V 1-Phase Electrical Panel with GFCI Outlets
Front-Mount LP Cage with Regulator and Shutoff Valve

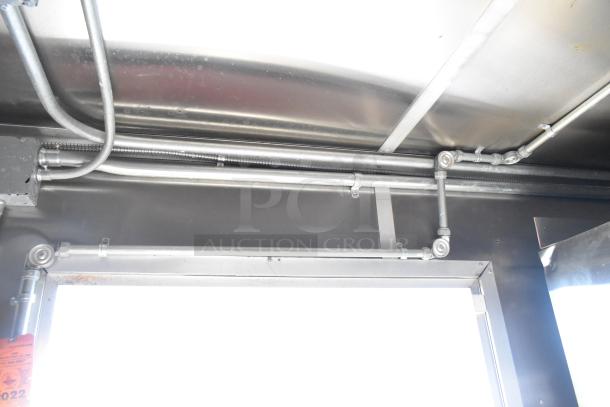

Professional Iron Pipe Gas Distribution System
EKM Gas Meter Model PGM 75 with Consumption Monitoring
PEX Water Line Distribution

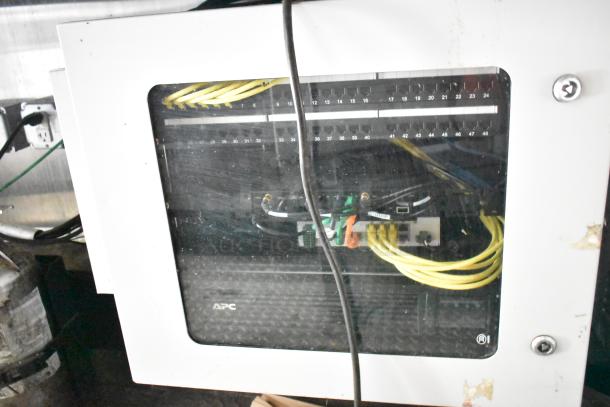

APC 48-Port Network Patch Panel

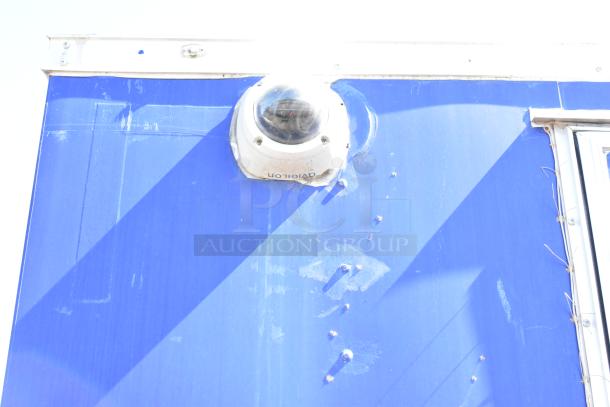

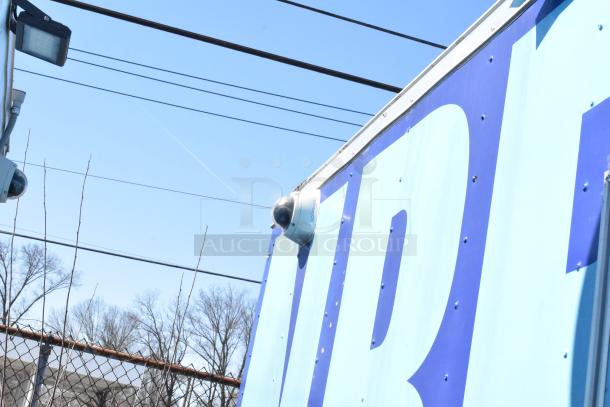

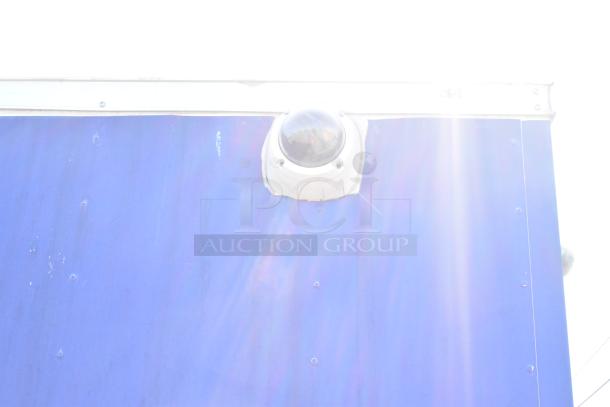

Avigilon Security Camera System
Large Pass-Through Service Window with Drop-Down Shelf
Fold-Down Entry Stairs with Handrail

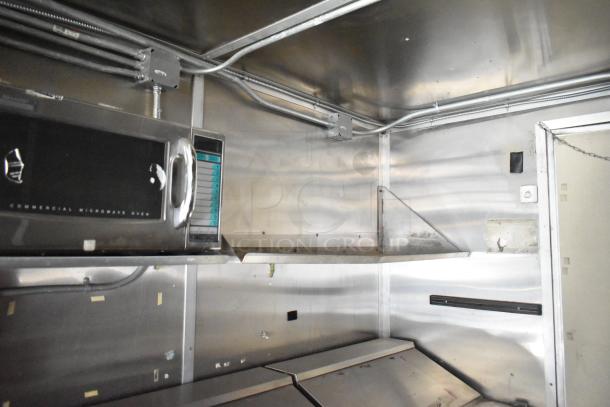

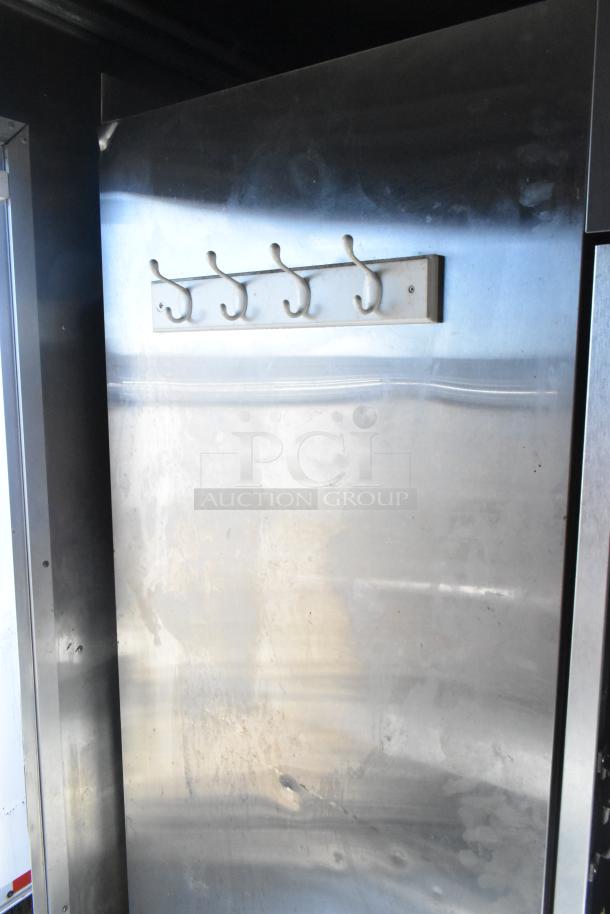

Stainless Steel Wall and Ceiling Construction
Diamond Plate Aluminum Flooring
LED Lighting
USE CASES:
Mobile food vending for burgers, sandwiches, and fried menu items. Festival and event food service with full cooking and cold storage capacity. Construction site or remote location catering operations. Temporary kitchen facilities for restaurants or institutions. Food truck commissary support or ghost kitchen satellite location.
POWER & DEPLOYMENT NOTES:
Unit requires 120/240V single-phase electrical service. Square D panel provides circuit distribution throughout trailer. Pitco fryer requires 115V for controls. All Arctic Air refrigeration units operate on 115V circuits. Sharp microwave draws 14.0 amps at 120V. Multiple GFCI-protected outlets installed for equipment and general use. Shore power inlet type and main panel amperage rating require verification during inspection. Buyers should confirm total connected load matches available power source capacity and install appropriate inlet connection.
CONDITION:

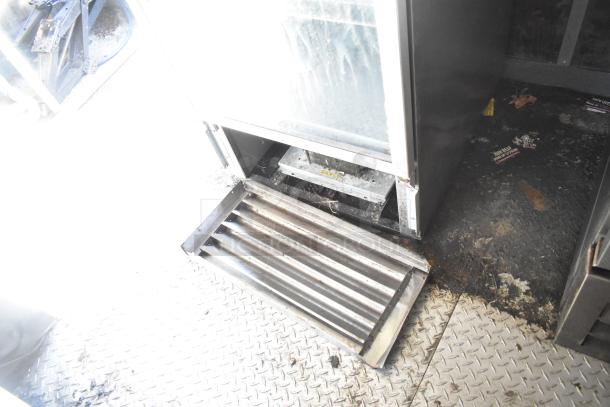

Previously operated 2020 commercial kitchen trailer showing normal operational wear and requiring cleaning and maintenance. Equipment package is complete and functional. Hood system has heavy grease accumulation on filters and internal surfaces requiring cleaning. Refrigeration equipment exhibits notable base corrosion and rust, particularly severe on AST72RZ three-door unit. Floor has debris accumulation including organic matter. Exterior wrap shows UV fading with rust staining visible around exterior hand sink fixture and wheel wells. All major systems appear intact. Fire suppression components visible but cylinder inspection date not confirmed. Unit requires thorough cleaning, maintenance assessment, and minor rust remediation before deployment. Sold as-is.
Sold as-is with clear title; Please allow up to 180 days to receive clear title.
