🔹 Condition
Used – Good Condition – Fully Tested & Operational
This American Panel HURRiCHiLL commercial blast chiller and shock freezer has been professionally inspected and tested to confirm proper refrigeration performance, rapid chilling operation, shock-freezing function, touchscreen-controller response, fan operation, compressor cycling, door function, and general commercial operation.

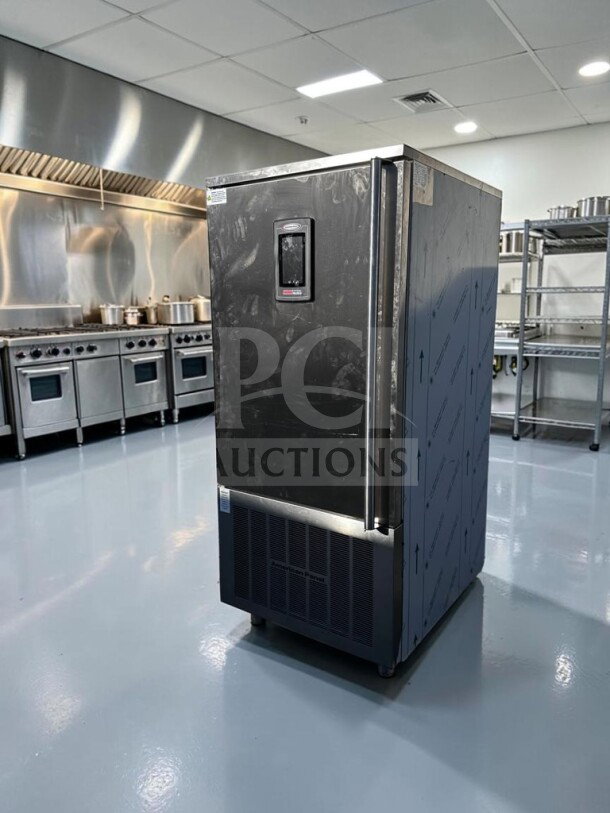

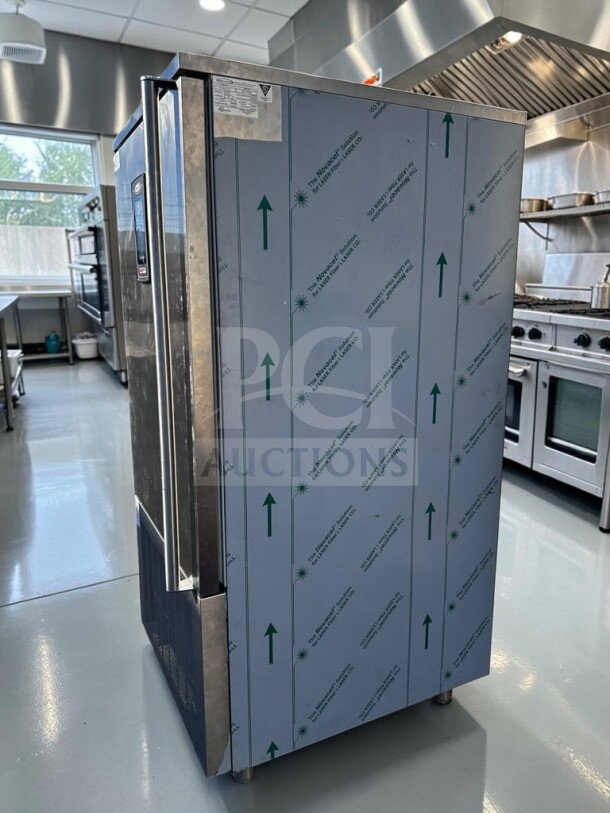

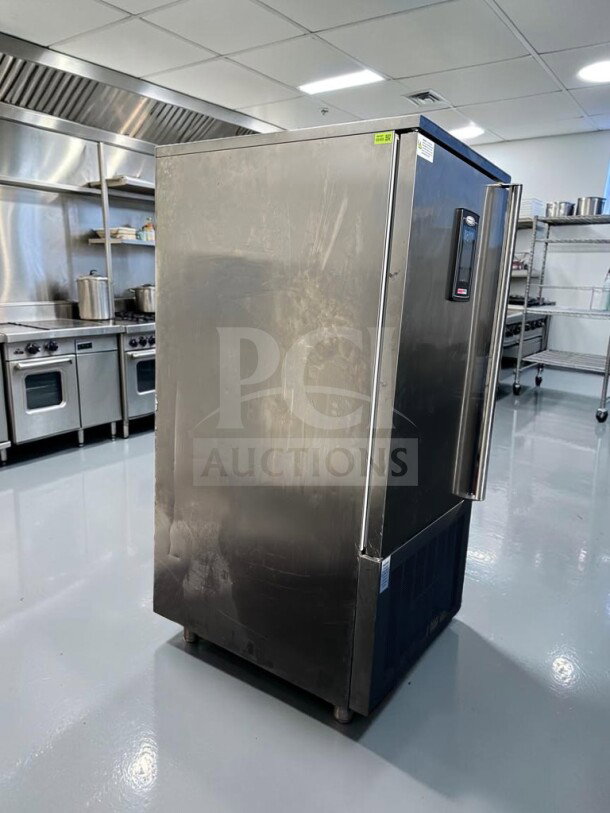

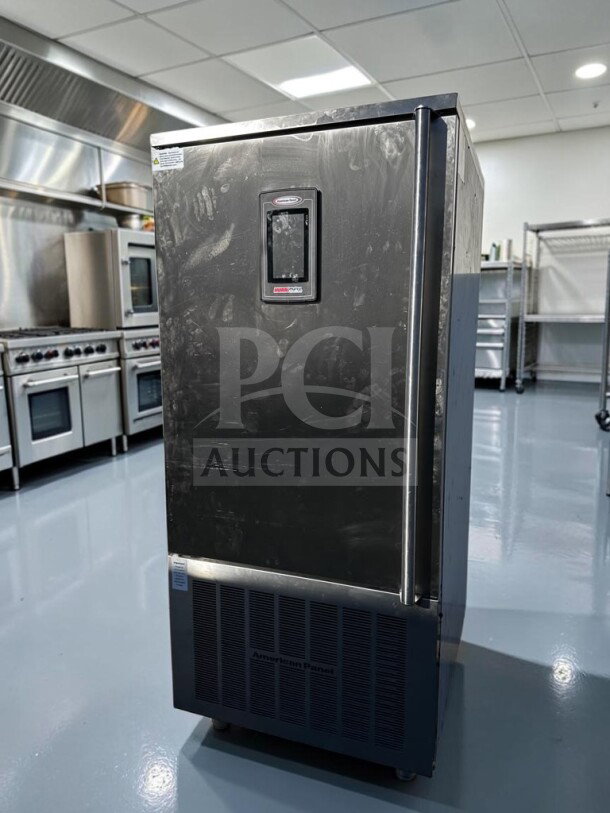

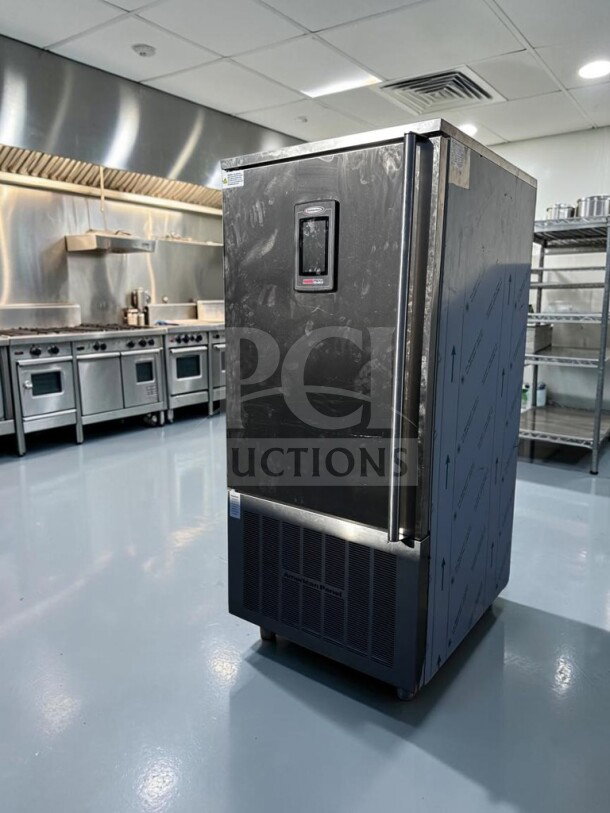

The stainless steel exterior shows visible scratches, scuffs, fingerprints, discoloration, surface marks, and other cosmetic signs consistent with prior commercial kitchen use. Portions of the protective surface film remain attached to the side panels, and the front door shows normal handling and storage marks.
These cosmetic imperfections do not affect the unit’s intended rapid-chilling and freezing functions. The food probe, pan supports, internal accessories, and operating components are included only when physically present with the machine.
Please review all supplied photographs carefully for the exact condition and included components.
🔹 Description

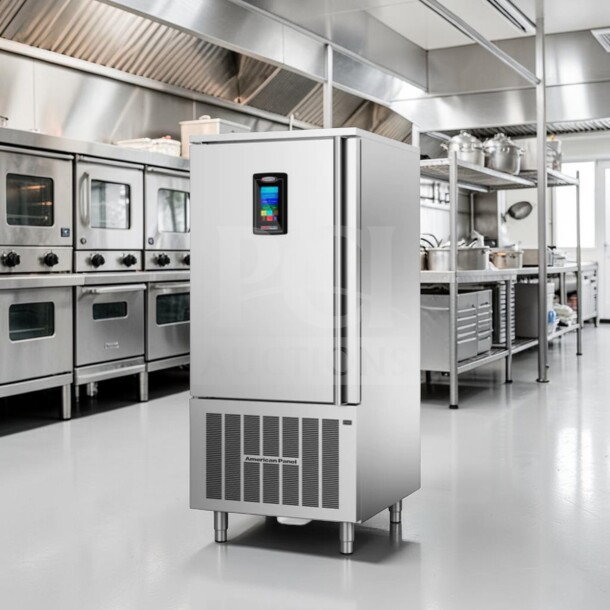

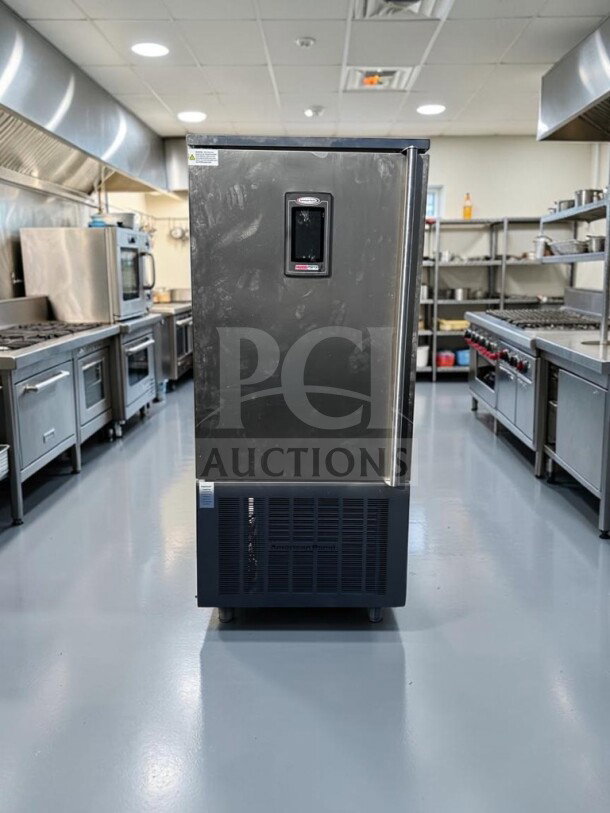

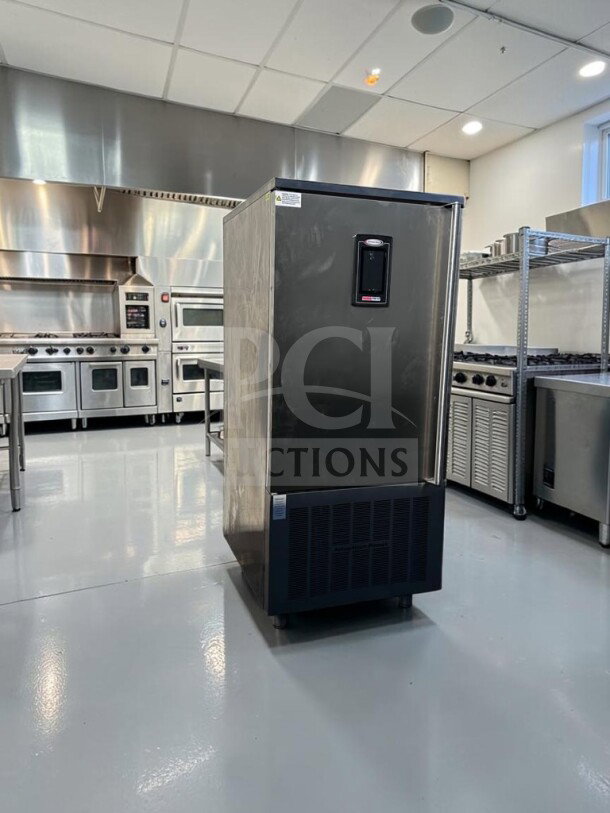

The American Panel AP12BCF110-3 HURRiCHiLL™ is a heavy-duty commercial reach-in blast chiller and shock freezer designed to cool cooked foods rapidly through critical temperature ranges and prepare products for refrigerated or frozen storage.
This self-contained floor model can accommodate up to 24 standard 12" × 20" × 2.5" pans or 12 full-size 18" × 26" pans, making it suitable for restaurants, commissaries, bakeries, hotels, catering kitchens, healthcare facilities, institutional kitchens, and food-production operations.
The system is rated to blast chill approximately 110 pounds of food from 160°F to 38°F within 90 minutes and shock freeze approximately 90 pounds from 160°F to 0°F within 240 minutes under manufacturer-rated conditions. A 7-inch touchscreen controller provides Quick Start and à la carte operating functions, while a heated food probe monitors product-core temperature during programmed cycles.
Rapid chilling helps reduce the time cooked food remains in temperature ranges where bacterial growth may accelerate. It also supports batch cooking, safer food storage, improved production planning, and preservation of food moisture, texture, appearance, and quality. American Panel’s operating literature states that HURRiCHiLL equipment is designed to cool product cores rapidly to approximately 40°F.
🔹 Chilling and Freezing Performance
Blast-Chill Capacity: 110 lb. Blast-Chill Cycle: 160°F to 38°F in approximately 90 minutes Shock-Freeze Capacity: 90 lb. Shock-Freeze Cycle: 160°F to 0°F in approximately 240 minutes Operating Style: Reach-In / Self-Contained Primary Functions: Blast Chilling, Shock Freezing, Holding and Product Temperature Monitoring Controller: 7-Inch LCD Touchscreen Food Probe: One Heated Product Probe, when present Compressor Rating: Approximately 3 HP
These published performance ratings correspond to the AP12BCF110-3 platform.
Actual cycle time depends on product type, food density, pan depth, starting temperature, load arrangement, airflow, ambient temperature, and the selected program.
🔹 Pan Capacity
12" × 20" × 2.5" Pans: Up to 24 18" × 26" Full-Size Sheet Pans: Up to 12 Loading Style: Reach-In Interior Arrangement: Adjustable Pan Supports / Slide System Maximum Published Food Load: 110 lb. for Blast Chilling
The published specifications confirm capacity for either 24 smaller food pans or 12 full-size sheet pans.
Pans, racks, trays, and additional guides are included only when physically present with the unit.
🔹 Electrical Specifications
Voltage: 208V AC Phase: Three Phase Frequency: 60 Hz Rated Amperage: 10 Amps Minimum Circuit Ampacity: 20 Amps Maximum Fuse Size: 20 Amps Power Type: Electric
These electrical ratings are taken directly from the manufacturer data plate on the photographed unit.
A dedicated commercial electrical circuit installed by a qualified electrician is required. This machine is not compatible with standard 115V service.
🔹 Refrigeration Specifications
Refrigerant: R404A Refrigerant Charge: 106 oz. Low-Side Design Pressure: 179 PSIG High-Side Design Pressure: 375 PSIG Refrigeration Type: Self-Contained Compressor Location: Lower Cabinet Section Cooling Method: Forced-Air Commercial Refrigeration
The refrigerant, charge, and design pressures are confirmed by the photographed equipment plate.
R404A refrigeration work must be performed by a qualified commercial refrigeration technician using approved recovery, charging, and service procedures.
🔹 Dimensions
Width: 32.25 in Depth: 36 in Height: 74 in Approximate Weight: 770 lb.
These dimensions and weight are currently published for the AP12BCF110-3.
Buyer should verify:
Doorway clearance
Hallway and loading-dock access
Ceiling height
Electrical-disconnect location
Ventilation clearance
Final leveling space
Freight and forklift requirements
🔹 Controller and Monitoring Features
The HURRiCHiLL platform is equipped with a commercial programmable control system designed to manage rapid-chilling and freezing cycles.
Controller Features
7-inch LCD touchscreen
Quick Start operation
À la carte cycle functionality
Product temperature monitoring
Heated food probe support
Programmed blast-chill cycles
Programmed shock-freeze cycles
Cycle alarms and status monitoring
HACCP-oriented operating support
Operator-friendly commercial interface
Published product descriptions confirm the touchscreen, Quick Start, à la carte functionality, and heated food probe.
Exact software version and enabled programs should be confirmed during final testing.
🔹 Construction
Stainless steel exterior
Stainless steel interior
Heavy-duty insulated cabinet
Single full-height reach-in door
Long vertical commercial door handle
Magnetic commercial door gasket
Bottom-mounted self-contained refrigeration system
Front condenser grille
Commercial evaporator and circulation fans

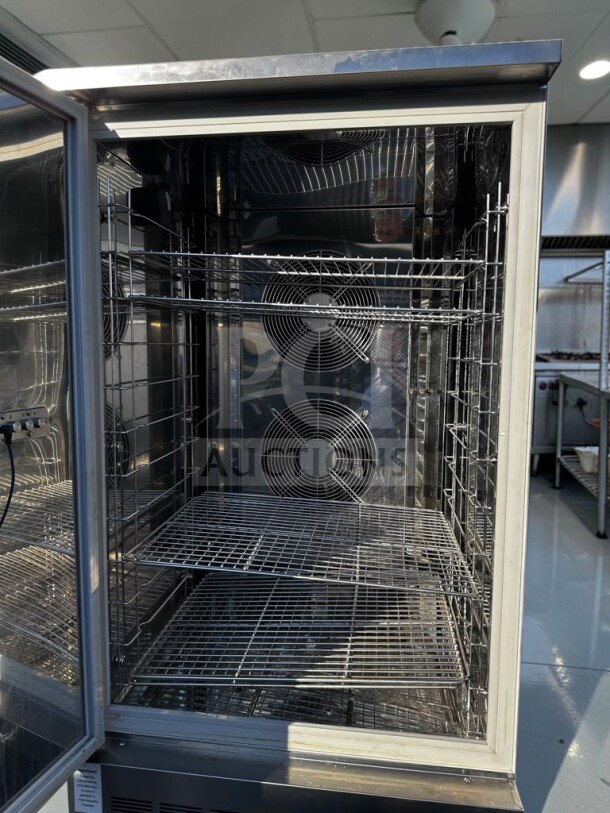

Adjustable internal pan supports
Six-inch stainless steel legs
7-inch touchscreen control panel
Heated food-probe system
Commercial food-production configuration
The published model specification identifies stainless steel interior and exterior construction with six-inch stainless steel legs.
🔹 Key Features
Blast chills up to approximately 110 lb. per cycle
Shock freezes up to approximately 90 lb. per cycle
Accommodates up to 24 food pans
Supports 12 full-size sheet pans
Rapidly lowers food temperatures
7-inch touchscreen controller
Quick Start and à la carte functionality
Heated product probe
Self-contained refrigeration system
Heavy-duty stainless steel interior and exterior
Three-phase commercial electrical configuration
Suitable for cook-chill production
Helps improve food-safety workflow
Supports batch cooking and inventory preparation
UL and sanitation certification markings
Designed for demanding commercial operations
🔹 Recommended Applications
Restaurants
Hotels
Commercial bakeries
Commissaries
Catering kitchens
Hospitals
Healthcare foodservice
School kitchens
Universities
Institutional kitchens
Food-production facilities
Banquet operations
Central kitchens
Meal-preparation facilities
Cook-chill operations
High-volume pastry production
🔹 Suitable Food Applications
Cooked meats
Poultry
Seafood
Soups
Sauces
Pasta dishes
Rice dishes
Prepared meals
Vegetables
Bakery products
Pastries
Desserts
Catering trays
Portion-controlled foods
Batch-cooked menu items
Frozen prepared products
Food should be arranged in shallow approved pans with adequate space for airflow according to manufacturer instructions and applicable health codes.
🔹 Operational Benefits
A commercial blast chiller can support:
Faster cooling of cooked foods
Reduced dependence on conventional reach-in refrigerators for hot-product cooling
Improved batch-cooking workflow
Better advance preparation
Extended product quality
Lower moisture loss
More consistent texture
Controlled freezing
Improved production scheduling
HACCP record-keeping procedures
Reduced kitchen bottlenecks
More efficient catering and banquet preparation
American Panel describes rapid chilling as helping protect food moisture and quality during the cooling process.
🔹 Cleaning and Maintenance
Before commercial operation:
Clean and sanitize the entire interior
Remove remaining protective film
Clean the touchscreen carefully
Inspect and sanitize the food probe
Wash all pan guides and supports
Clean the door gasket
Vacuum and clean the condenser
Inspect the evaporator and fans
Confirm the drain is clear
Verify door alignment and sealing
Check compressor operation
Test blast-chill and shock-freeze cycles
Confirm product-probe accuracy
Inspect electrical wiring and disconnect
Have the refrigeration charge verified if performance is reduced
Only approved cleaning products should be used on the stainless steel and touchscreen surfaces.
🔹 Installation Requirements
208V three-phase electrical service required
20-amp minimum circuit capacity required
Dedicated electrical disconnect required
Qualified electrician required
Qualified refrigeration technician recommended
Unit must remain upright during transportation
Floor must support approximately 770 lb.
Machine must be installed level
Adequate condenser ventilation is required
Service access must be maintained
Interior drain arrangement should be checked
Local electrical, sanitation, building, and fire codes must be followed
Startup and controller calibration are recommended before production use
🔹 Certifications

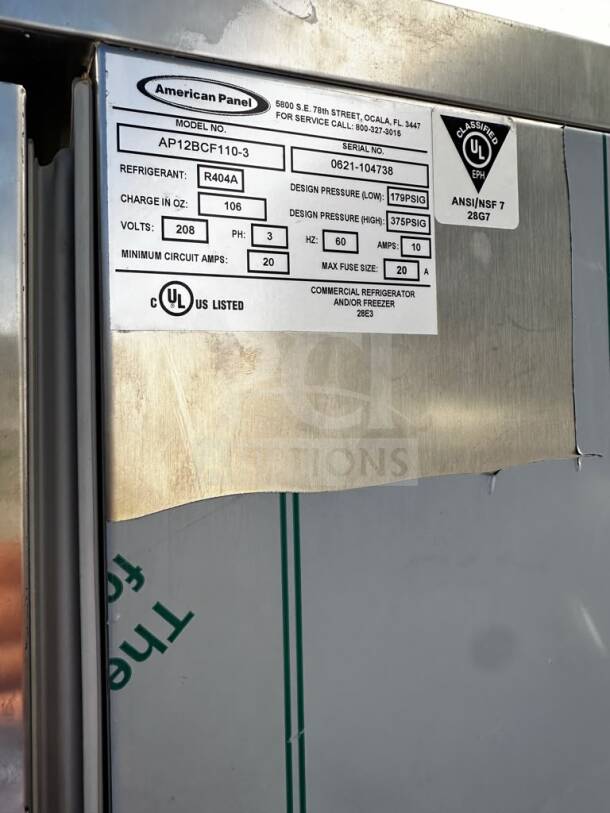

The photographed manufacturer plate confirms:
Current published product listings also identify NSF and UL certification for this model.
🔹 Manufacturing Information
Manufacturer: American Panel Corporation Brand: American Panel Series: HURRiCHiLL™ Model: AP12BCF110-3 Serial Number: 0621-104738 Equipment Type: Commercial Reach-In Blast Chiller and Shock Freezer Voltage: 208V Phase: Three Phase Frequency: 60 Hz Amperage: 10 Amps Minimum Circuit Ampacity: 20 Amps Maximum Fuse: 20 Amps Refrigerant: R404A Refrigerant Charge: 106 oz. Country of Manufacture: USA Manufacturer Location: Ocala, Florida, USA
🔹 Included
American Panel AP12BCF110-3 blast chiller and shock freezer
Self-contained refrigeration system
Full-height insulated door
7-inch touchscreen controller
Internal pan supports when present
Heated food probe when present
Stainless steel legs
Installed electrical and refrigeration components
Attached parts shown in the photographs
The unit is sold exactly as shown in the supplied photos.
Not Included Unless Confirmed
