Make: Jackson Model: DishStar HT-E Width: 24.5 Depth: 26.0 Height: 34.0
Division: Southern California
Condition
Brand New – Fully Tested & Operational

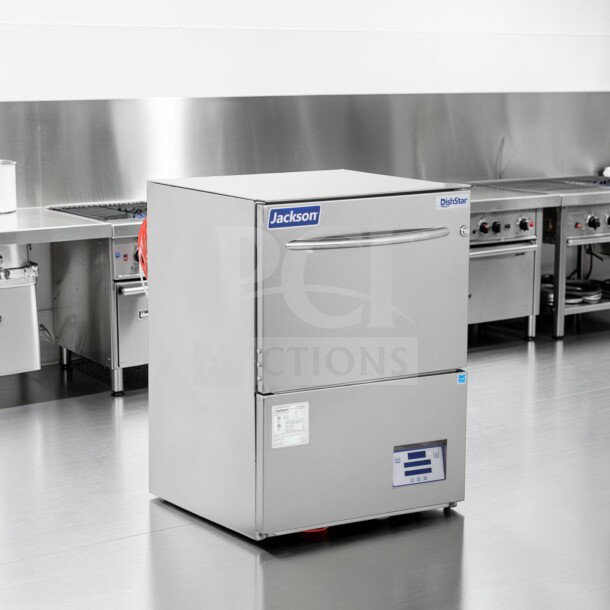

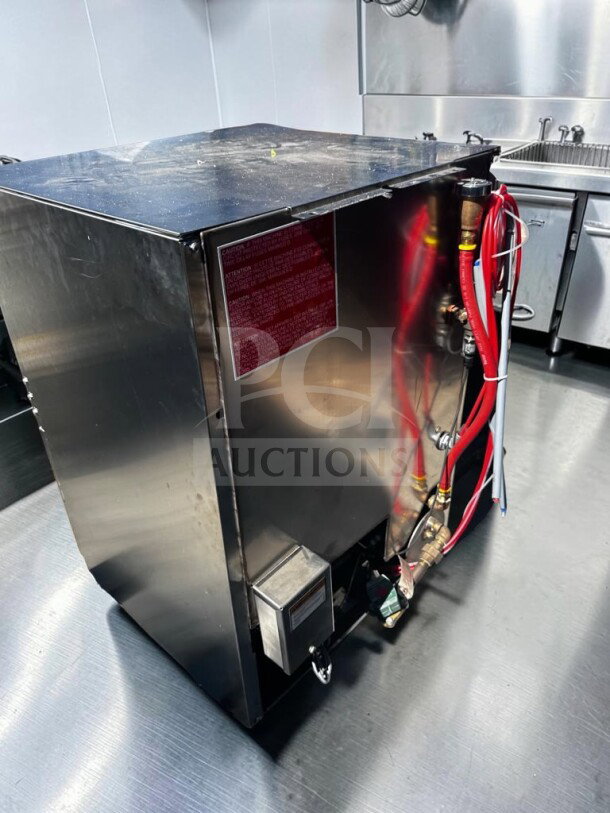

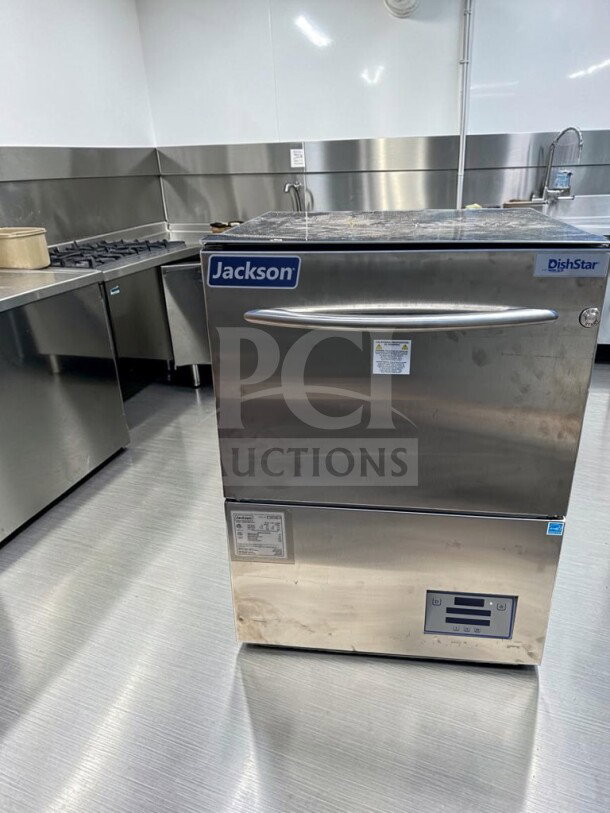

This Jackson DishStar HT-E high temperature undercounter dishwasher is brand new and has been inspected and tested to confirm proper operation. Stainless steel exterior shows light handling marks from transport / storage, but the door, digital control panel, interior chamber, rack area, and data plate present well overall. Unit is ready for immediate commercial dishwashing service.
Description
The Jackson DishStar HT-E is an energy efficient commercial high temperature undercounter dishwasher designed for restaurants, cafés, bars, bakeries, hotels, catering kitchens, coffee shops, schools, churches, offices, and foodservice operations that need reliable warewashing performance in a compact footprint.
This machine uses high-temperature sanitizing and includes a built-in booster heater system. Jackson describes the DishStar HT-E as an undercounter dishmachine with high-temperature hot-water sanitizing, a booster tank, and detergent and rinse-aid chemical feeder pumps.
Official Jackson product information states that the DishStar HT-E uses only 0.60 gallons of water per rack and is designed for high-temperature sanitizing in undercounter applications.
Electrical Specifications
Voltage: 208/230V
Phase: Single Phase
Frequency: 60 Hz
Connection: 1 Phase / 2 Wire
Wash Motor: 1 HP
Wash Motor Power: 1.50A / 250W
Wash Heater: 3.3 kW
Rinse Heater: 4 kW
Total Load: 4.1 kW at 208V / 5.2 kW at 230V
Minimum Circuit Ampacity: 28 Amps at 208V / 27 Amps at 230V
Maximum Overcurrent Protection: 30 Amps
Power Type: Electric
Dishwashing System
High temperature sanitizing dishwasher
Built-in booster heater
Detergent and rinse-aid chemical feeder pumps
Digital control panel
Undercounter commercial design
Fresh water rinse system
Energy efficient operation
Jackson’s spec sheet lists the DishStar HT-E as ENERGY STAR certified, rated for 36 racks per hour, using 0.60 gallons per rack, with a 70°F rise booster heater and Sani-Sure final rinse system.
Construction
Stainless steel commercial body
Front-loading undercounter design
Large pull handle

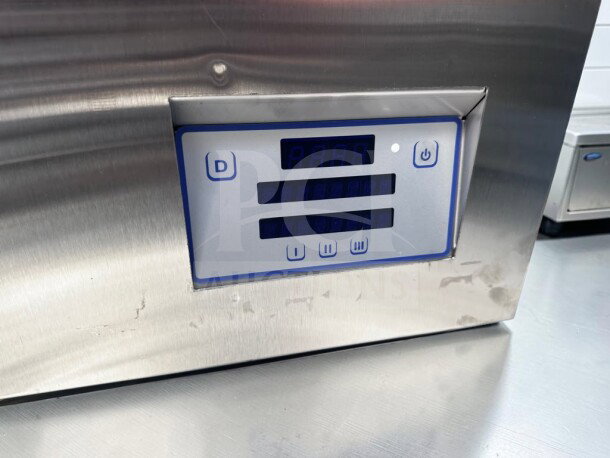

Digital LED control panel
Interior stainless wash chamber
Commercial dish rack compatibility
Compact footprint for tight kitchen spaces
Heavy-duty door and wash compartment
Key Features
High temperature undercounter dishwasher
Energy efficient commercial warewashing
208/230V single phase operation
Built-in booster heater
Digital LED temperature / cycle controls
0.60 gallons of water per rack
Up to 36 racks per hour according to Jackson specifications
Sani-Sure final rinse system
Auto-fill and deliming cycle listed on retailer product information
Includes dish racks shown in photos
Ideal for restaurants, cafés, bars, coffee shops, bakeries, hotels, offices, churches, schools, and compact commercial kitchens
Certifications
ETL Listed
ETL Sanitation
NSF / ANSI Standard 3
ENERGY STAR Certified

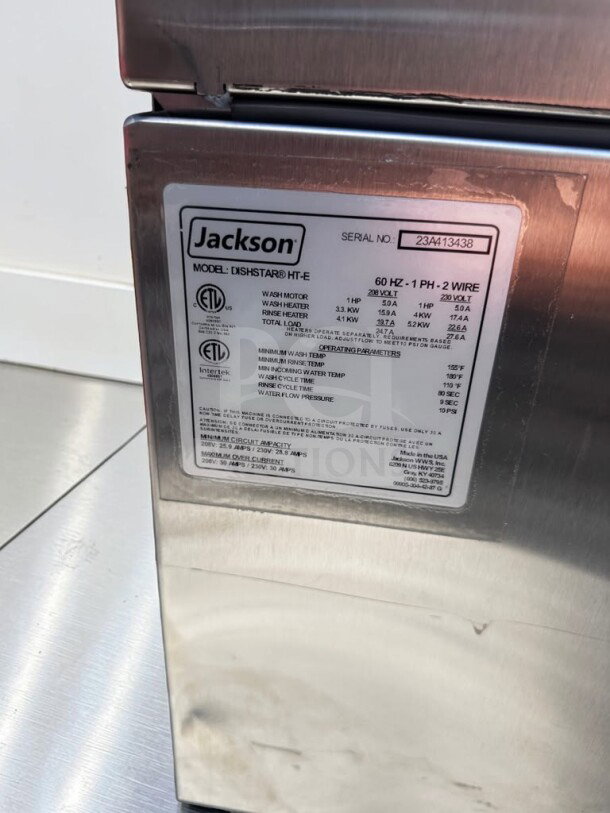

Manufacturing Information
Manufacturer: Jackson WWS, Inc.
Brand: Jackson
Model Number: DishStar HT-E
Serial Number: 234413438
Type: Energy Efficient High Temperature Undercounter Dishwasher
Country of Manufacture: USA
Included
Jackson DishStar HT-E High Temp Undercounter Dishwasher

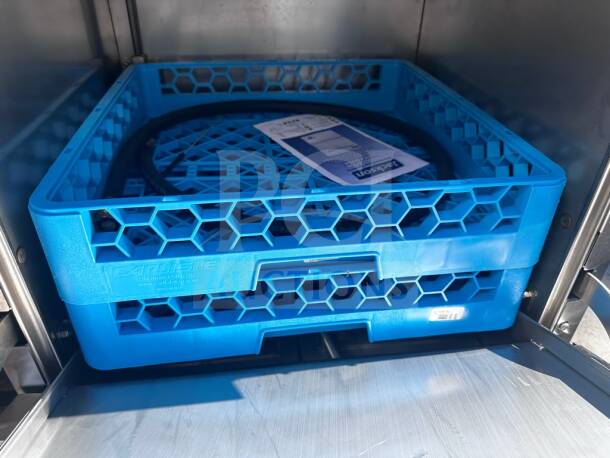

Blue dish racks shown in photos
Digital control panel shown in photos
Unit sold exactly as shown in photos
Important Notes
Brand new item
Fully tested and working prior to listing
Sold as-is, where-is
No manufacturer warranty included
Shipping calculated at checkout
Local pickup available
Professional electrical and plumbing installation required
Requires proper hot water supply, drain, detergent, and rinse-aid setup
