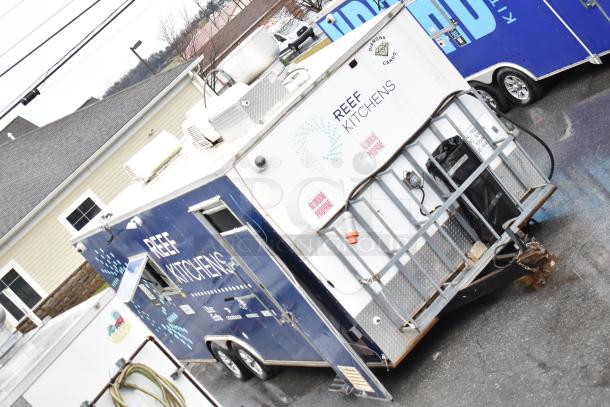

Diamond Cargo 8.5' x 24' commercial mobile kitchen, purpose-built for full hot and cold food production. Tandem axle, 9,990 lb GVWR. Exterior wrapped in Reef Kitchens branding; interior is a complete stainless commercial kitchen with independent utility systems.
The cooking line runs a Wells gas 4-burner open range paired with a Wells gas flat-top griddle — a versatile combination for scratch cooking across a wide range of menu formats. The Pitco Frialator SG14R gas 2-bay fryer rounds out the fry production capability. The entire cooking line operates under a CaptiveAire stainless grease hood with baffle filters and a ceiling-mounted Ansul fire suppression system with dedicated agent and actuation cylinders. For operators who need a permitted mobile cooking setup, the hood and suppression infrastructure is already in place.
Cold storage is handled by an Arctic Air suite: a 72" refrigerated prep table, a 48" refrigerated prep table, a full-height single-door reach-in freezer, a single-door undercounter cooler, a 2-door undercounter cooler, and a single-door undercounter freezer. A separate 3-door refrigerated sandwich prep unit is also present at the serving station, providing additional cold rail capacity for assembly.
Power connection note: This trailer is equipped with a red IEC 309 Ceeform 3-phase power inlet — an international-standard connector format. US operators connecting to domestic shore power or standard US generators will need an appropriate IEC 309 to NEMA adapter. Buyers should verify their intended deployment power configuration before bidding.
Propane supply is via exterior-mounted two-stage regulator with flexible supply line. Water system includes an Eccotemp mini tank water heater, a John Boos 3-bay sink with drain board, a single-bay hand wash sink, and a MixRite hand sink. Air curtain is installed at the service opening. Climate control is a Coleman Mach ceiling-mount A/C system. Interior security dome camera present.
Exterior wrap is clean. Interior condition reflects prior active use — see condition section below.
Sold as-is with clear title.
TRAILER SPECIFICATIONS (FROM DATA PLATE):
Manufacturer: Diamond Cargo
VIN: 53NBE242XL1076054
GVWR: 4,531 kg (9,990 lbs)
GAWR (Each Axle): 4,531 kg (9,990 lbs)
Tires: ST225/75R15-D
Rim: 15x8J
Tire Pressure: 440 KPA (65 PSI)
Axle Configuration: Tandem Axle
Trailer Dimensions: 8.5' x 22'
EQUIPMENT INCLUDED:
Cooking & Ventilation
CaptiveAire Stainless Steel Grease Hood with Baffle Filters
CaptiveAire Mushroom Exhaust Fan
Ansul Fire Suppression System (installed, overhead)
2019 Pitco Frialator SG14R Gas 2-Bay Fryer
Wells Gas 4-Burner Open Range
Wells Gas Flat Top Griddle (cooking surface shows heavy rust)
Refrigeration & Prep
Arctic Air AST72RZ Refrigerated Prep Table, 115V 1-Phase
Arctic Air AST48RZ Refrigerated Prep Table, 115V 1-Phase
Arctic Air AF23Z Single Door Reach-In Freezer, 115V 1-Phase
Arctic Air AUC27RZ Single Door Undercounter Cooler, 115V 1-Phase
Arctic Air AUC27FZ Single Door Undercounter Freezer, 115V 1-Phase
Arctic Air AUC48RZ 2-Door Undercounter Cooler, 115V 1-Phase
3-Door Refrigerated Sandwich Prep Unit
Sinks & Sanitation
3-Bay Sink with Drain Board
John Boos Single Bay Sink
MixRite MRS-HS-14 Single Bay Hand Sink
Water & Utilities
Electrical
HVAC & Environmental
Technology & Security
USE CASES: Full-service scratch cooking operation (burgers, sandwiches, fried foods), catering or event kitchen, ghost kitchen or delivery-focused concept, or conversion to any menu format supported by the range/griddle/fryer cooking suite. The Arctic Air refrigeration lineup supports high-volume cold prep and storage for multi-SKU menus.
CONDITION: Exterior: Reef Kitchens full wrap intact and presentable. No visible structural damage. Cooking equipment: Wells griddle cooking surface shows significant rust and oxidation. Fryer and range present; service status unconfirmed. Interior: Active use evident throughout. Floor under sink area shows deterioration and accumulated grime. Stainless walls functional. Equipment operational status not confirmed by auction staff — buyer should conduct thorough on-site inspection and budget for cleaning, servicing, and recommissioning prior to deployment.
Sold as-is with clear title; Titles can take up to 6 months to transfer to the winning bidder
